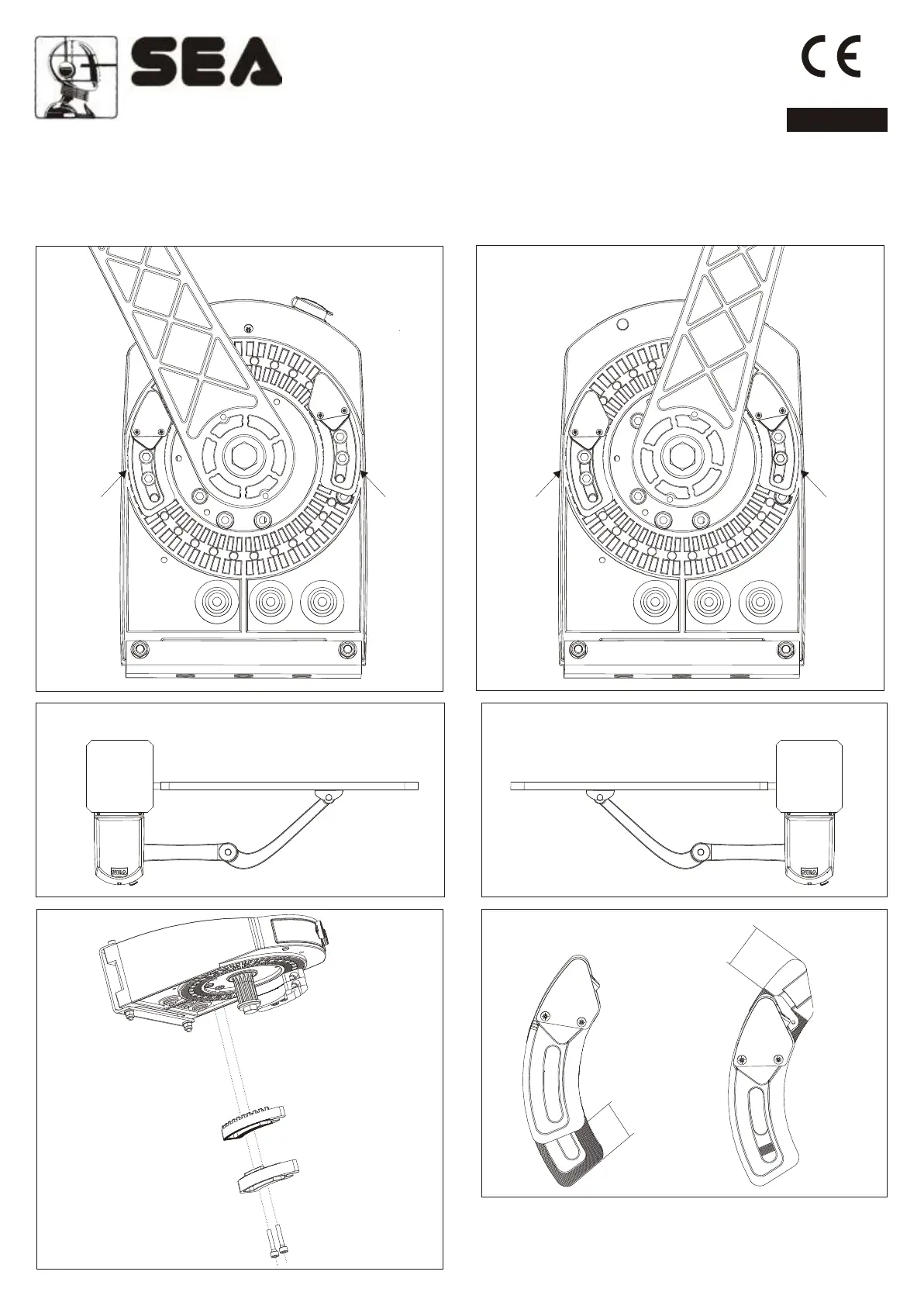

SEA FLIPPER - Mechanical Positive Stop Adjustment

- Release the operator.
- Open the leaf completely or up to the desired opening point.
- Position the stop as in Fig. 24 on the stop of the arm and lock the screws as in Fig. 25.
N.B: The delivered screws are selfthreading and have to be locked at 10 Nm.
FLIPPER
RIGHT MOTOR
LEFT MOTOR
Closing
OpeningOpening
Closing
STOP
STOP STOP STOP
Fig. 20 Fig. 21
Fig. 25
10 mm
max
LEFTHAND MOUNTING RIGHTHAND MOUNTING
Fig. 22
Fig. 23
10 mm
max
Fig. 24
MECHANICAL POSITIVE STOP ADJUSTMENT IN OPENING
