SEA FLIPPER - Release System

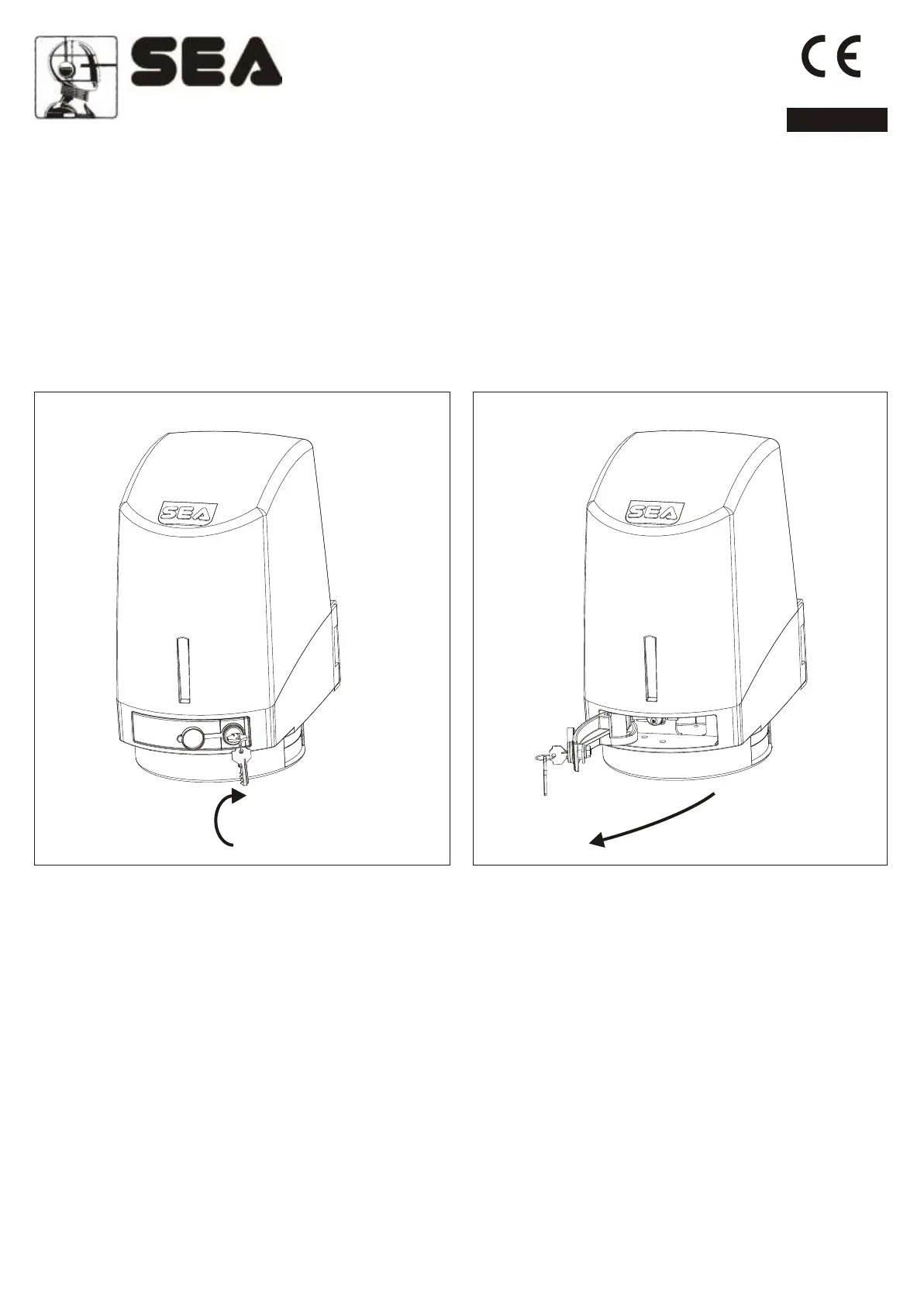

Fig. 18 Fig. 19
To release operate as follows:
- Take off the protection cap of the lock.
- Insert the key and turn about 90° into clockwise direction (Fig. 18).
- Pull the door until its complete opening (Fig. 19).
- Open manually the leaf
To block again operate as follows:
- close the door again.
- Turn the key about 90° into anti-clockwise direction.
- Extract the key.
- Close the lock again with the protection cap.
FLIPPER
90°
23
Operator locked Operator released
RELEASE SYSTEM
