Fig. 17
FLIPPER
Fig. 16
Fig. 15

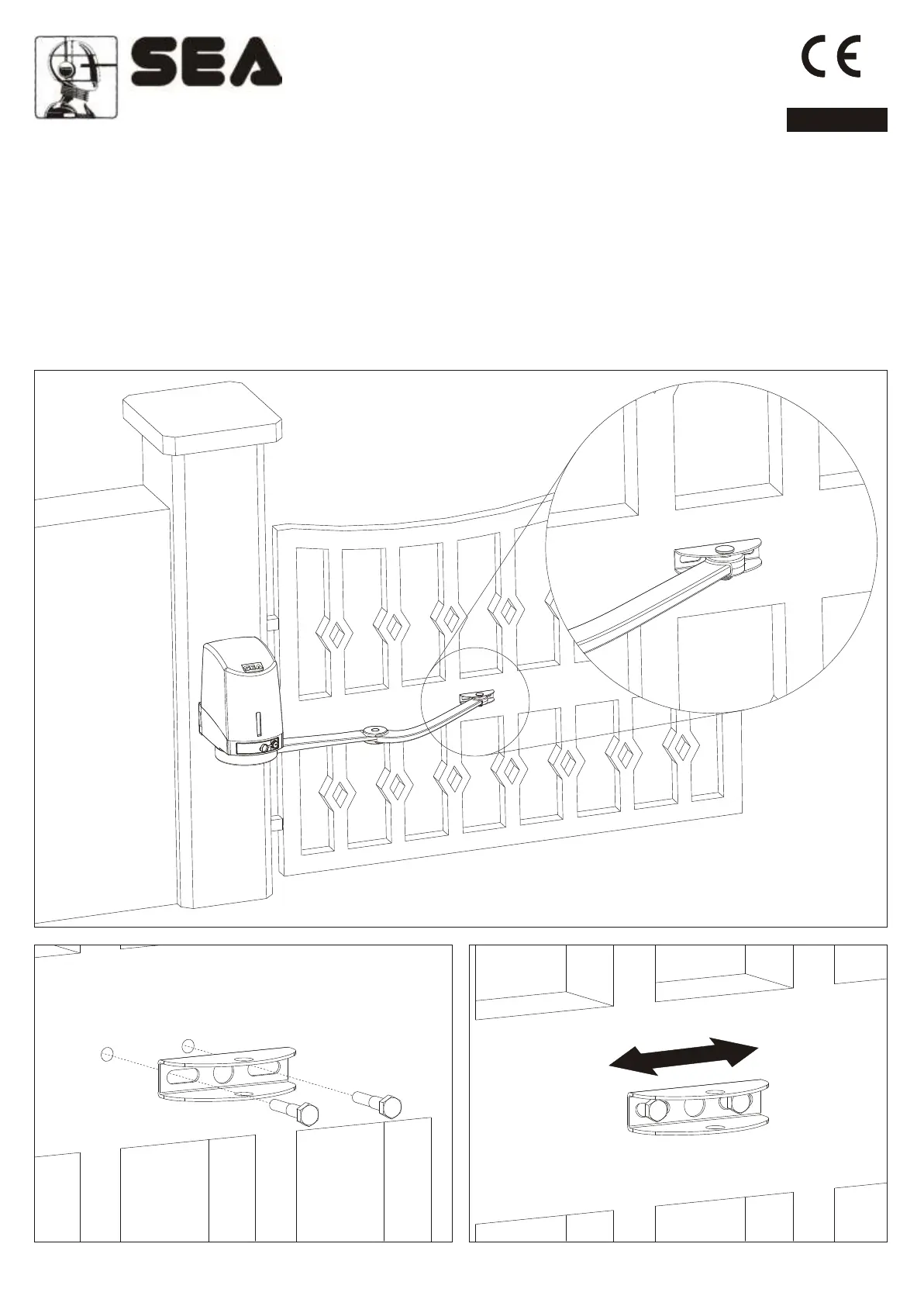

FIXING OF THE FRONT BRACKET
- Close the leaf completely
- Release the motor (see Fig. 18 e 19)
- Extend the articulated arm (Fig. 8), lean the adjustable front bracket on the gate and make two marks on the center of the two
holes (Fig. 15) respecting the measures in Fig. 8.
- Perforate the leaf and fix the front bracket with the screws (Fig. 16)
- Before tightening the screws move the front bracket to the right or to the left for a good positioning of the arm on the gate (Fig.
17) respecting the measure D in Fig. 8.
FITTING AND CONNECTION INSTRUCTIONS
ENGLISH
Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
®
22 REV 02 - 03/2009
