TECHNICAL FEATURES
COMPONENTS
SPRINT is an high speed hydraulic barrier for intensive application, designed for arms up to 6 m
All models are IRREVERSIBLE, to allow a perfect and safe closing of the arm
The barrier is equipped with a MANUAL RELEASE SYSTEM - placed inside the barrier housing - which allows
manual opening and closing in the event of a power outage.
SPRINT is also equipped with an electronic inversion device via ABSOLUTE ENCODER, which makes it
safe and reliable and allows to comply with the Laws in force in the Countries where the barrier is installed.
The ELECTRONIC DECELERATION SYSTEM, combined with the absolute encoder, guarantees total control of
the inertia forces.
The barrier is also equipped with BY-PASS VALVES which allows to adjust the thrust force and thus ensure
anti-crushing safety.
The housing is made of cataphoresis treated steel and painted in polyester for outdoor use, for excellent
resistance to atmospheric agents (the casing is also available in STAINLESS STEEL, upon request)
International registered trademark n. 804888
ENGLISH
1
2
3
5
13
4
*
6
11
7
9
10
8
14

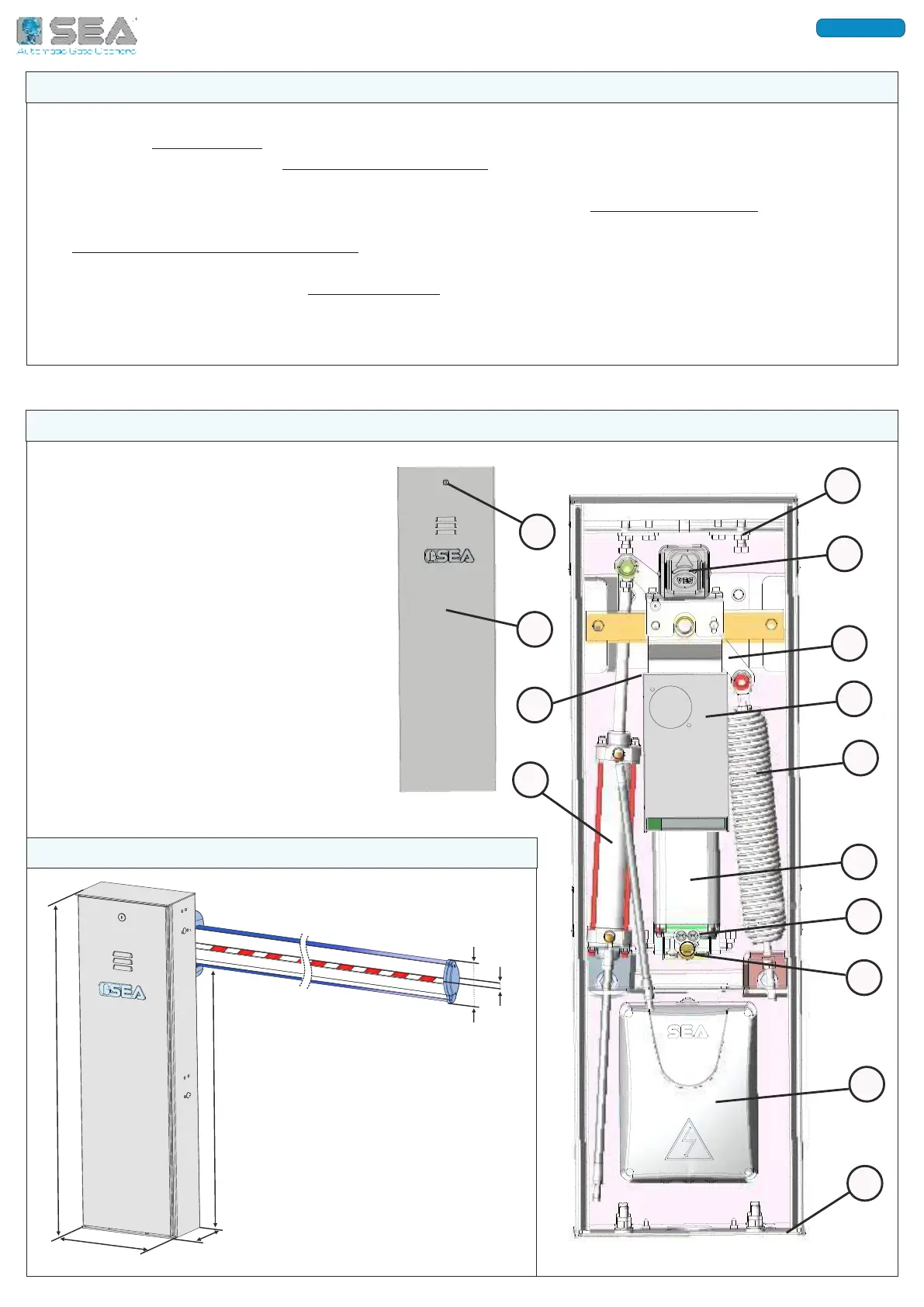

1 - ADJUSTABLE MECHANICAL STOPS
2 - ABSOLUTE ENCODER
3 - GALVANIZED STEEL ROCKER ARM
4 - SWITCHING (ONLY ON SPRINT «BR») *
5 - BALANCING SPRING
6 - HYDRAULIC UNIT
7 - BY-PASS VALVES
8 - MOTOR RELEASE SCREW
9 - BOX WITH ELECTRONIC CONTROL UNIT
10 - GALVANIZED STEEL FOUNDATION PLATE
11 - PISTON
12 - BREATHER CAP (SEE CHAPTER 10)
13 - CASING DOOR
14 - LOCK WITH DIN KEY
DIMENSIONS (mm)
Fig. 1
Fig. 2
1003
310
164
830
12
96
56
