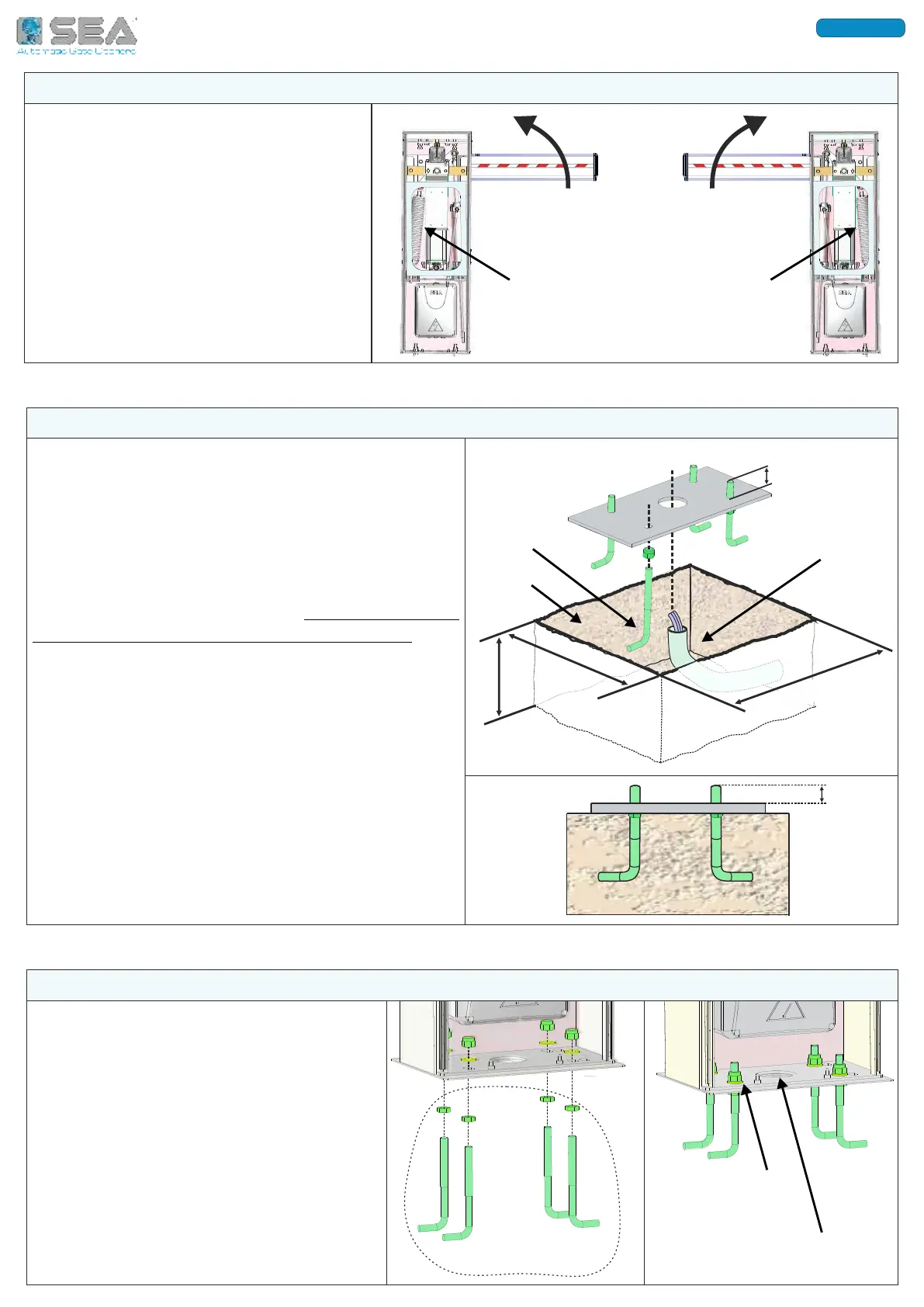

SEA Sprint - Installation of Foundation Plate; Barrier Mounting on Foundation Plate

14
BALANCING
SPRING
ON THE LEFT
1 - LEFT OR RIGHT HAND ARM ARRANGEMENT
The SPRINT barrier can be installed
either for left or right-hand opening
The opening direction depends on the
position of the balancing spring - see
chapter 4:
If the spring is left-hand installed, the arm
opens to the left;
If the spring is right-hand installed, the
arm opens to the right;
To install the foundation plate it is necessary to:
2.1. Prepare a concrete slab according to the
dimensions shown in Fig. 4;
The anchor bolts must be concreted inside the slab.
The foundation plate must be fixed on the anchor
bolts and concreted on the slab
IF ALLOWED BY THE STRUCTURE, IT IS RECOMMENDED
TO LIFT THE FOUNDATION PLATE OF ABOUT 50mm FROM
THE GROUND, TO AVOID WATER PUDDLING.
2.2. Insert the flexible plastic pipe (Ø 30 mm at least)
for the electric cables into the special hole of the plate
2.3. Make sure that the plate is perfectly leveled and
that the anchor bolts come out of the plate for 30 mm,
as shown in Fig. 5
2.4. Fill up the excavation using «R425» concrete;
carefully level the plate on the concrete.
ELECTRIC
CABLES
PIPE
AS IN
FIG. 4
300
500
500
PLINTH
DIMENSIONS IN mm
30
ANCHOR
BOLTS
LEFT-HAND
OPENING
BALANCING
SPRING
ON THE RIGHT
RIGHT-HAND
OPENING
3 - INSTALLATION OF THE BARRIER ON THE FOUNDATION PLATE
3.1. Place the barrier housing on the
foundation plate by matching the base
holes with the anchor bolts coming out of
the plate
3.2. Make sure that the electric cables pipe
has perfectly passed through the large hole
at the base of the barrier housing
3.3. Fix the barrier housing to the
foundation plate using the nuts and
washers provided - Fig. 6 and Fig. 7
FIXING
NUTS AND
WASHERS
HOLE FOR ELECTRIC
CABLES PIPE
Fig. 3
Fig. 4
Fig. 5
Fig. 7
Fig. 6
30 mm
2 - INSTALLATION OF THE FOUNDATION PLATE
International registered trademark n. 804888
