4–TEC SC Models SET-UP
Install the battery vent tube.

WARNING
Ensure vent tube is not kinked or obstructed.
Battery vent tube must be properly installed.

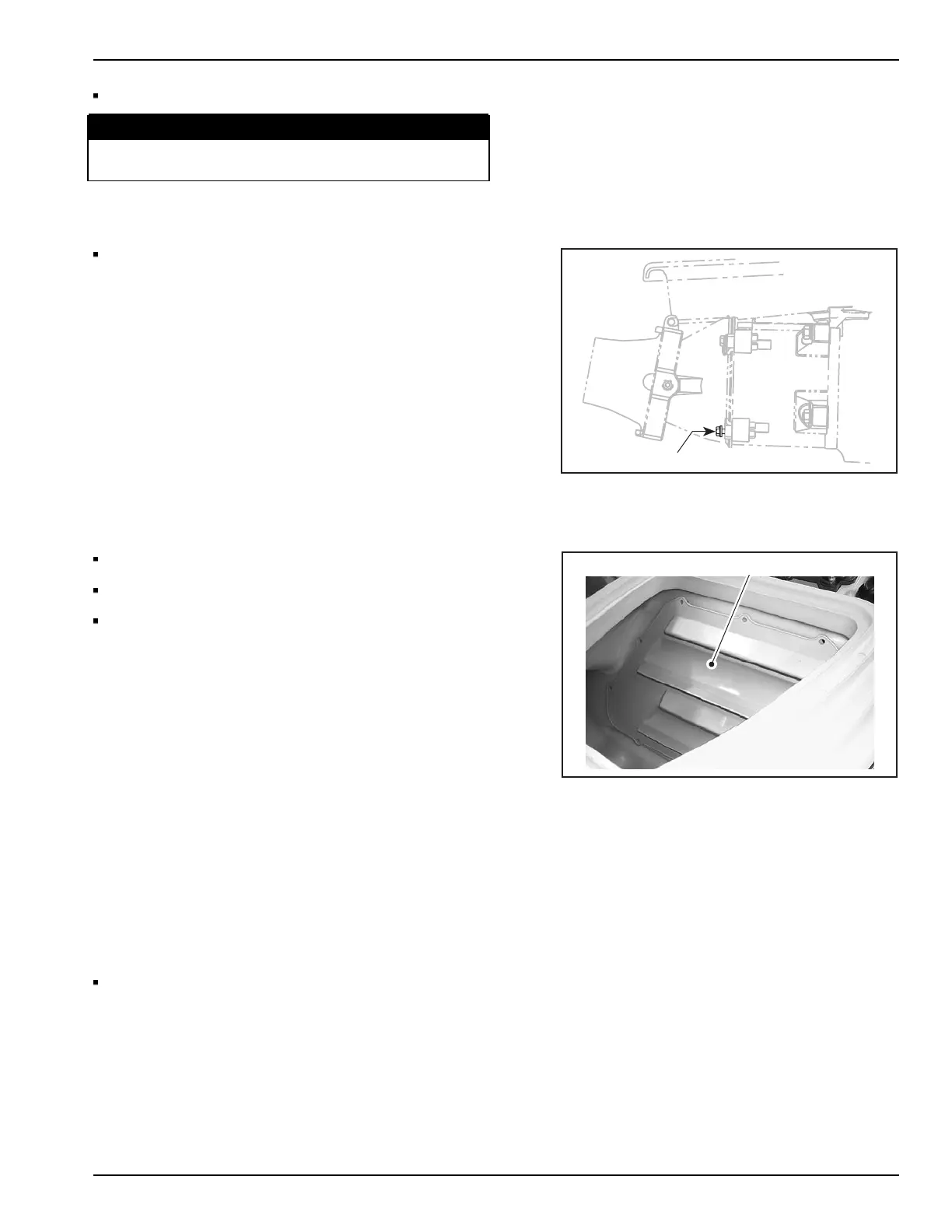

Venturi
1
F08A076
Secure the lower portion of the venturi [
[[
[1]
]]
]with:
- 2 hexagonal bolts from section no. 1 of
predelivery kit.
- 2 lock washers from section no. 1 of predelivery
kit.
- Two 8 mm flat washers (previously removed).
Torque to 21 N•m(15 lbf•ft).
Access Door
1
F02L3X7
Open the front storage compartment cover.
Remove the storage tray.
Secure the access door [
[[
[1]
]]
]with:
- 7 plastic darts from section no. 2 of predelivery
kit.
- 4 plastic darts are already in place.
FINAL PREPARATION
Steering Alignment
N
NN
NO
OO
OT
TT
TE
EE
E:
::
: All adjustments have already been
performed at the factory. If readjustments is
needed, the following procedures should be used.
Check steering alignment as per procedure in the
appropriate Sea-DooShopManual.
Predelivery 2004-1 5 / 15
