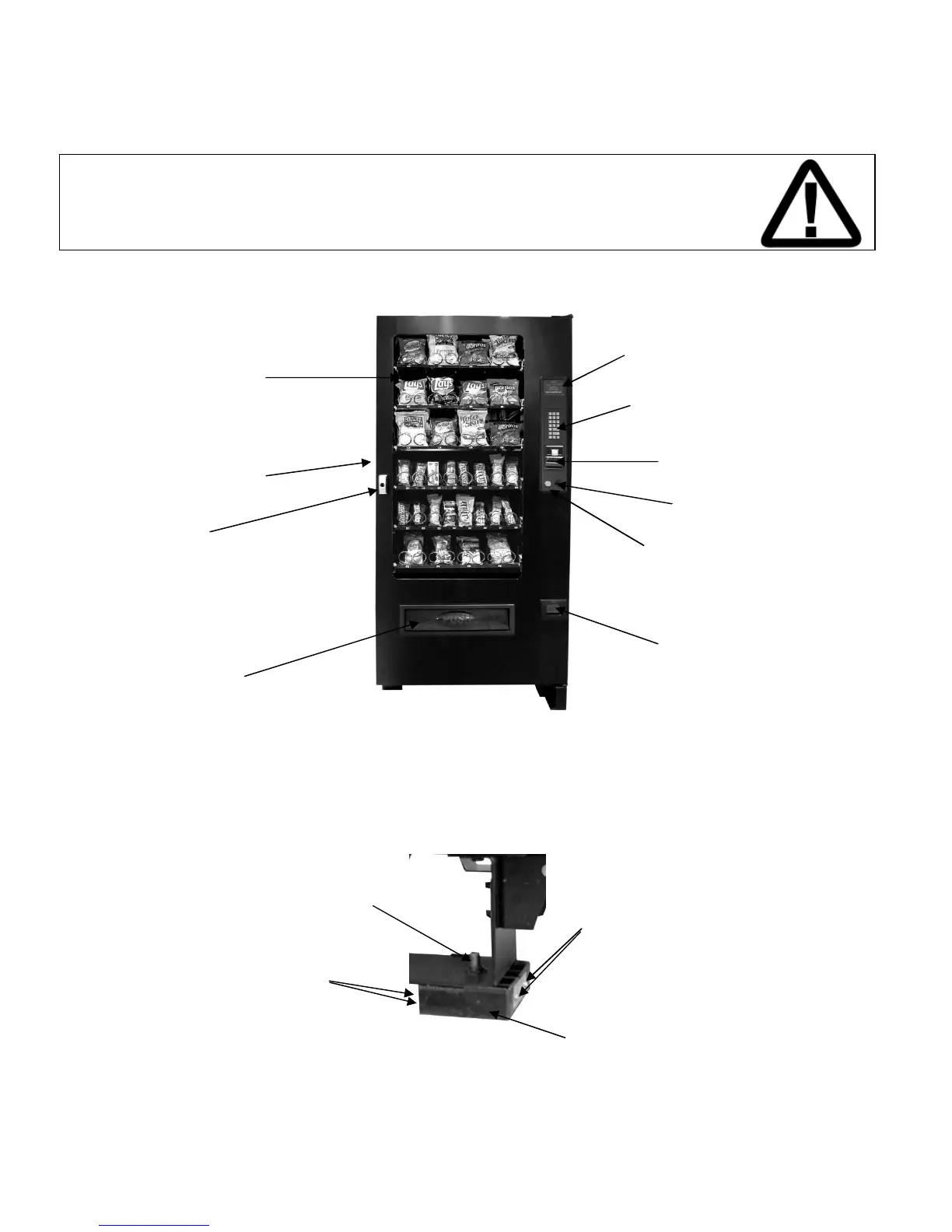

Fig. 1
Exterior View (SP432 4-Wide Snack Machine Shown)
Protective shipping guards (Fig. 2) were installed on the leveling legs at the factory. Once the machine is placed near its
final location the protective shipping guards may be removed. To remove the shipping guard, unscrew the leveling leg
from the bottom until the guard is loose – a few turns only. The guard is held together with four phillips head screws and
two brackets. Remove the screws and the guard will split in half for removal.
Fig. 2
Now place the machine into its final location. Using a level on the top of the machine, adjust the five leveling legs, if
necessary, for proper level both side to side and front to back. A good point to keep in mind is the shorter the leveling legs
are kept to achieve proper leveling the more stable the machine will be.
Coin Slot
Lock
Display Window
Front Door
VFD Display
Key Pad
Bill Validator
Product Door
Coin Return
Door
Coin Return
Button
CAUTION: Certain procedures described in this manual require that voltage be on in the
machine. Only trained personnel should perform these functions. Use extreme caution while
performing the procedures marked with the voltage symbol shown here:
CAUTION: Certain procedures described in this manual require a qualified, trained
technician to perform the particular task at hand. These procedures will be marked with the
attention symbol shown here:
Screws
Screws
Leg Leveler
Protective Guard
