Seagate BarraCuda Product Manual, Rev. A 10
Drive Specifications
2.7.1.1 Typical current profiles
The typical 5V startup and operation current profile is shown in Figure 1 and Figure 2.

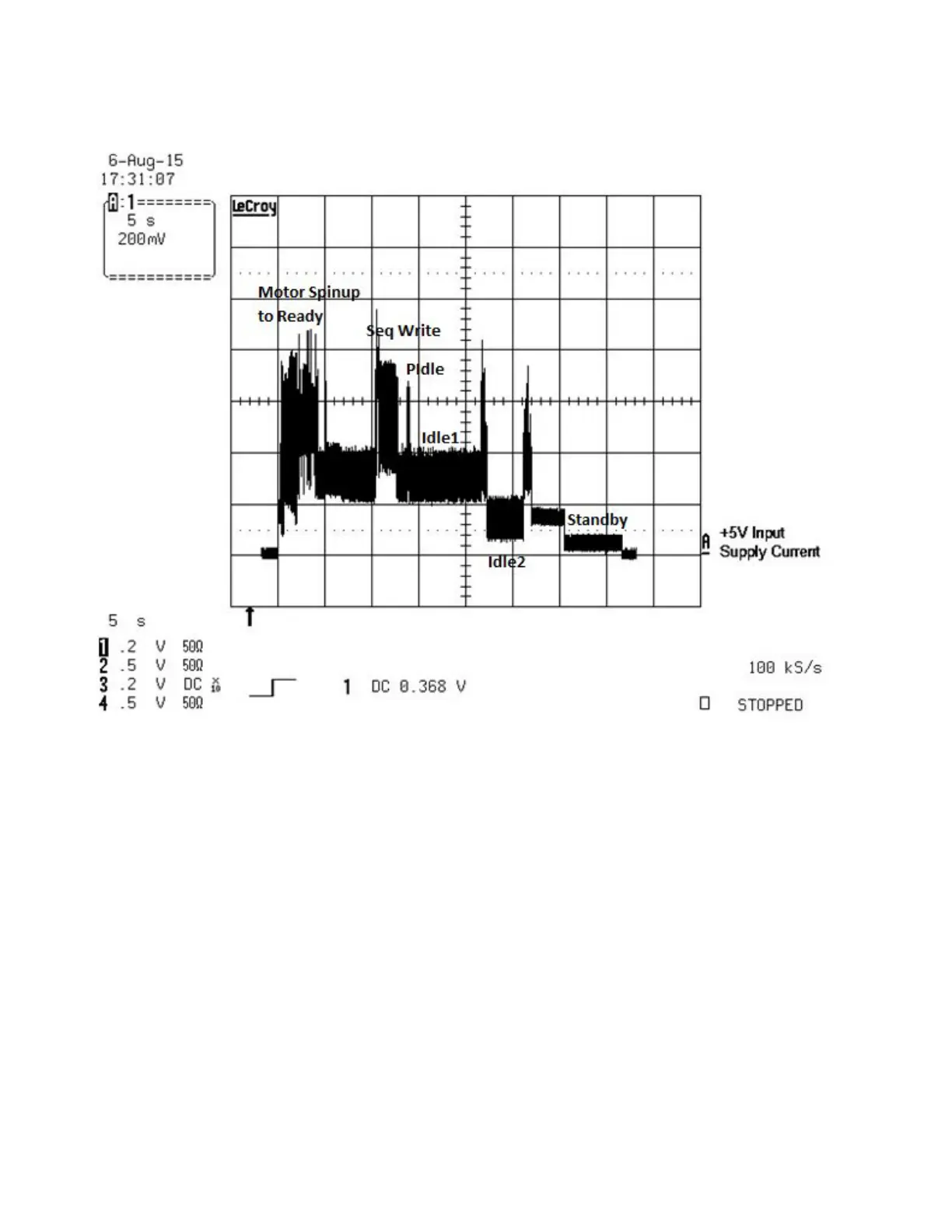

Figure 1 Typical 1D - 5V Startup and Operation Current Profile
