28 Barracuda SATA Product Manual, Rev. D
Configuring and Mounting the Drive www.seagate.com

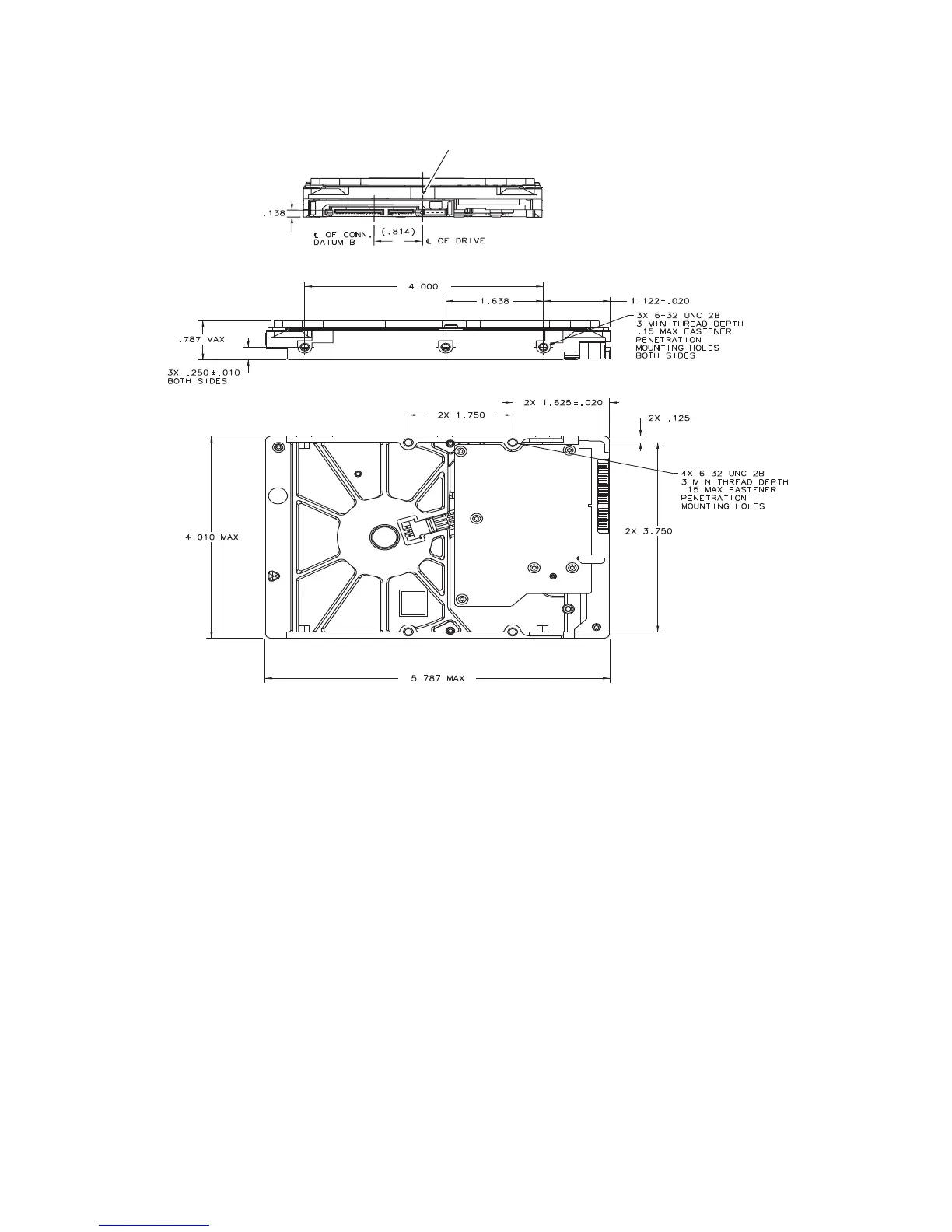

Figure 4 Mounting dimensions (1-disk: 500GB, 320GB and 250GB models)
Recommended
case temperature
measurement location
