32 Constellation ES.1 SAS Product Manual, Rev. E
1TB models in 3Gb operation
Please refer to Table 2 for power dissipation numbers.
To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure
6). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5
volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by
3.4123.

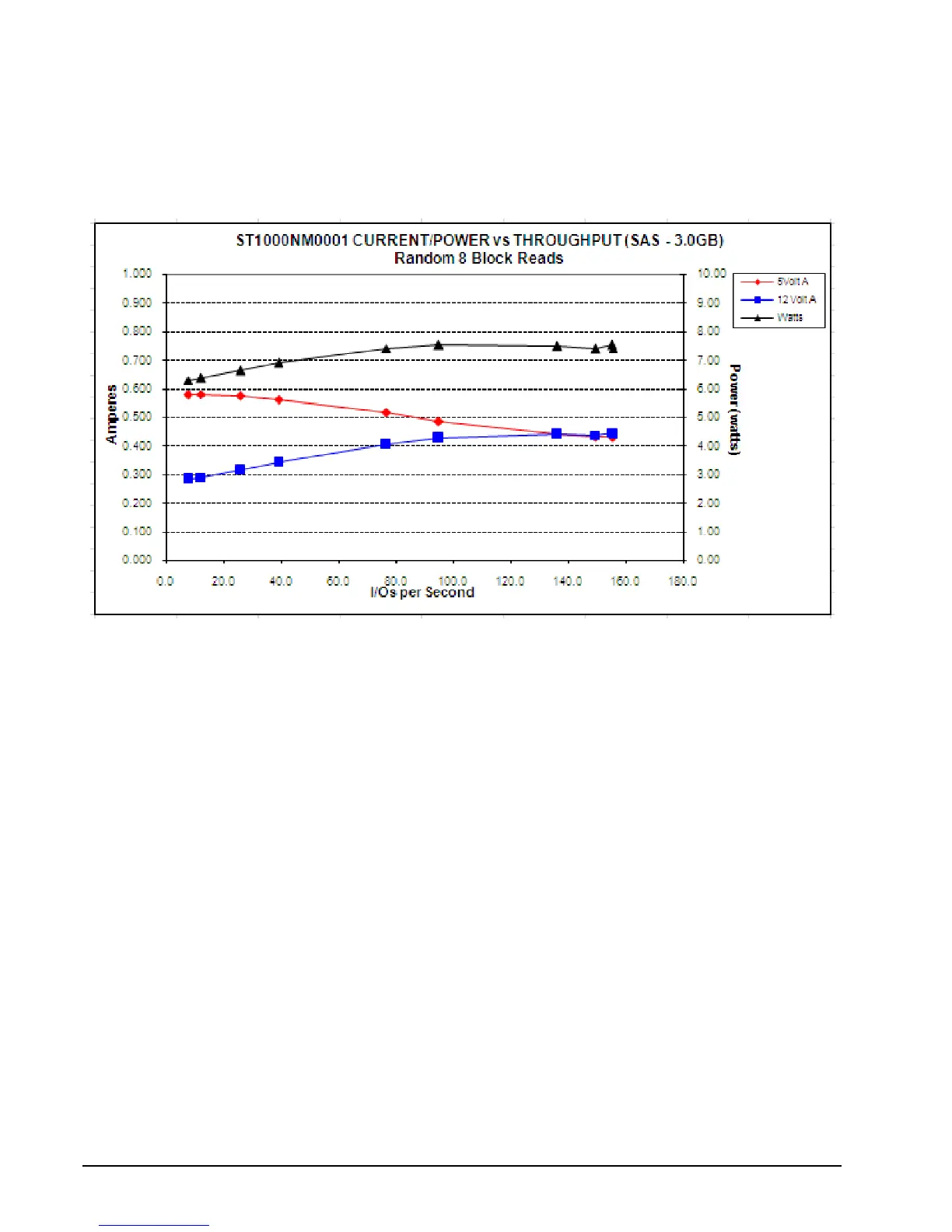

Figure 6. 1TB models (3Gb) DC current and power vs. input/output operations per second
Note. For power details about SED vs. non-SED drive, please refer to section 7.8.
