3.4.1 Mechanical specifications
Refer to Figure 4 for detailed mounting configuration dimensions. See Section 3.4, “Drive mounting.”

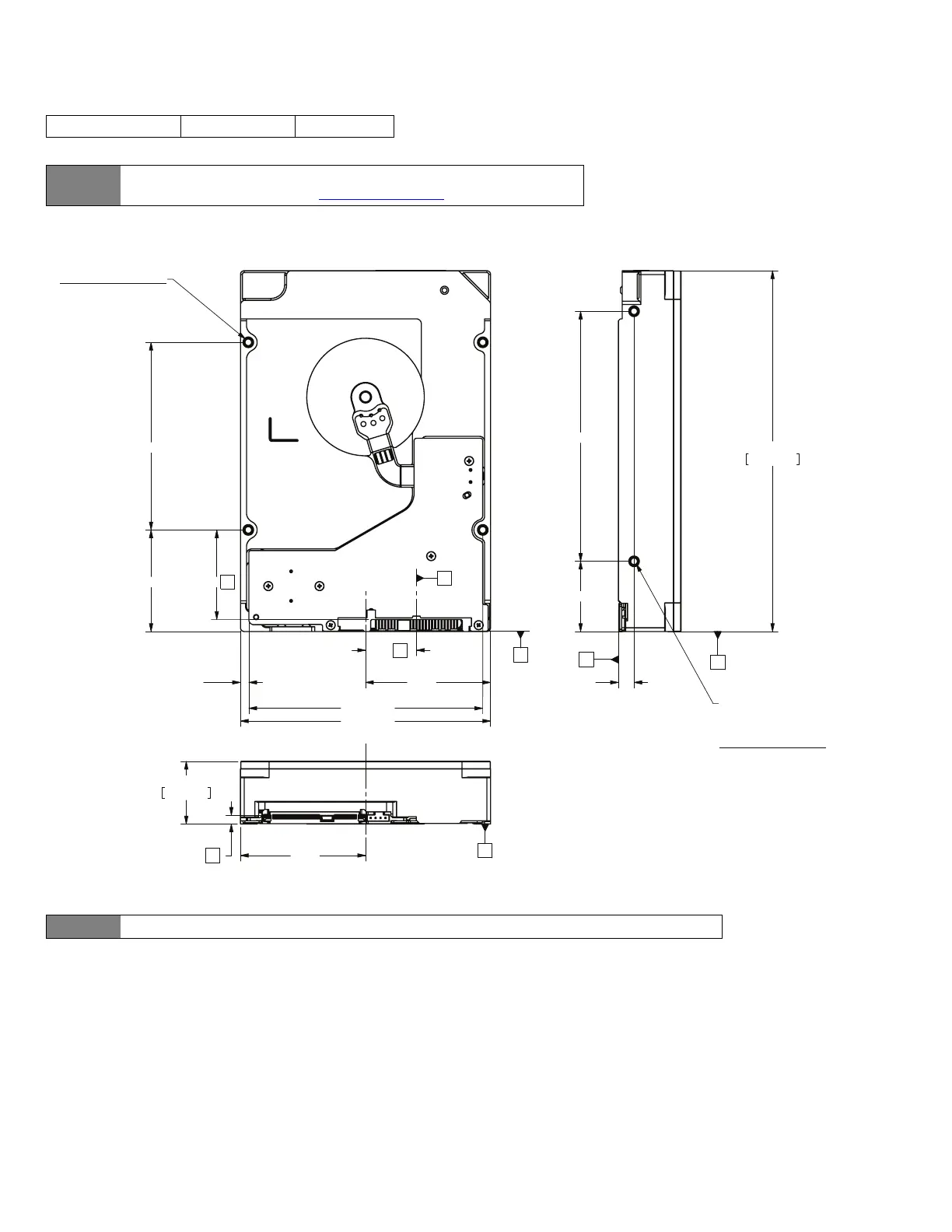

Figure 4. Mounting configuration dimensions
Weight: 1.554 lb 705 g
Note
These dimensions conform to the Small Form Factor Standard documented in
SFF-8301 and SFF-8323, found at www.sffcommittee.org
Note
The image is for mechanical dimension reference only and may not represent the actual drive.
2X 1.625±.020
2X 3.000±.010
1.432
2
.134±.010
3.741±.010
4.000±.010
.814
2
2.000
4X 6-32 UNC 2B
3 MIN THREAD DEPTH
.15 MAX FASTENER PENETRATION
MOUNTING HOLE.
MAX TORQUE 6 IN/LBS
B
Y
.250±.010
5.787 MAX
146.56 MM
1.122±.020
4.000±.010
2X 6-32 UNC 2B
3 MIN THREAD DEPTH
.15 MAX FASTENER PENETRATION
MOUNTING HOLES BOTH SIDES.
MAX TORQUE 6 IN/LBS
Y
Z
1.028 MAX
26.11MM
.138±.015
2
2.000
C
L
OF DRIVE
C
L
OF DRIVE
C
L
OF CONN
Z
