Seagull Models EDGE 540 EP - Aileron Servos - Linkages

EDGE 540. Instruction Manual.
6
2 X 12mm.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
1) Install the rubber grommets and brass
eyelets onto the aileron servo.
2) Turn the wing panel right side up. Using
a modeling knife, remove the covering at servo
tray.

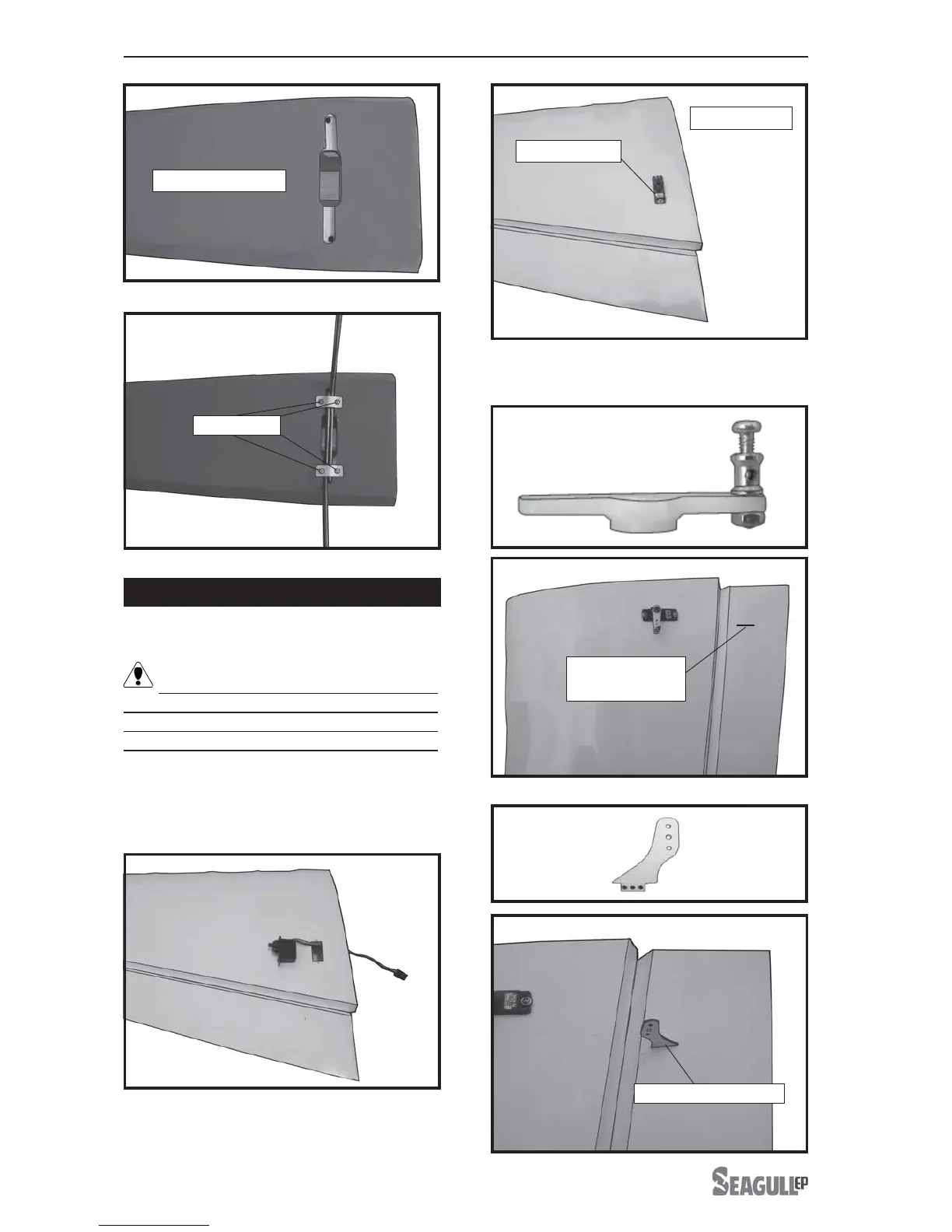

AILERON SERVOS - LINKAGES.
Secure the servos with the screws pro-
vided with your radio system.
Attach the micro control connector to the
servo arms. Be sure to use the lock tie but it
could free rotation .
Wing bottom.
Aileron control horn.
5) Insert aileron control horn to the aileron.
Fuselage bottom.
Aileron servo.
Aileron servo
cotrol horn slot.
