INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 1
90519
1
14 of 29
Section 2: ELECTRICAL INSTALLATION

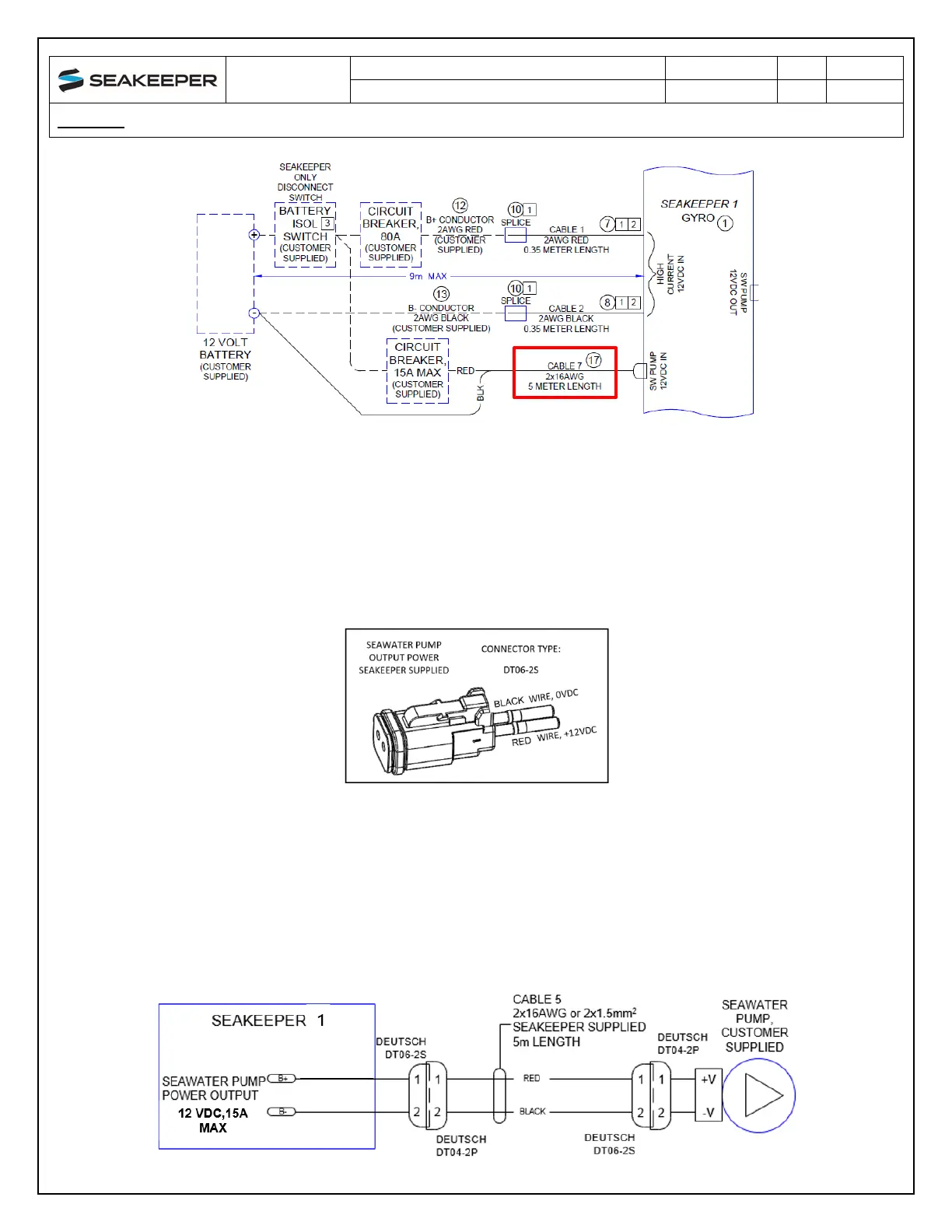

Figure 13: Seakeeper 1 Cable Block Diagram (Dwg No. 90511) – Seawater Input
2.3.3 SEAWATER PUMP 12 VDC POWER OUTPUT CONNECTION INSTRUCTIONS
1. Connect CABLE 5 to the Seakeeper 1 “SW Pump 12VDC Out” for DC power output to the
sea
water pump. CABLE 5 is a 2 x 16AWG cable, 16 ft (5m) length, with a size 16 female Deutsch
plug.
2. Pumps rated at 12 VDC, 15 amps maximum, customer-supplied, must be configured with a
Deutsch DT series, 2-pin receptacle to mate with the connector shown in the following Figure.
Figure 14: CABLE 5 - Seawater Pump Deutsch Connector
3. CABLE 5 must be routed and installed in the vessel from the Seakeeper 1 “SW Pump 12VDC
Out” Deutsch connector (pins end) to the DC seawater pump cable Deutsch connector (socket
end).
a. Connect CABLE 5 plug end (socket end) to the customer-supplied receptacle end (pins
end). The recommended wiring is shown in the following Figure.
4. Seakeeper DC Seawater Pump Assembly (P/N 30331), which is prewired for Cable 5, is
available as an option with the Seakeeper 1.
Figure 15: CABLE 5 - Seawater Pump
