INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 1
90519
1
15 of 29
Section 2: ELECTRICAL INSTALLATION
2.4 ELECTRICAL EQUIPMENT GROUND CONNECTIONS
Reference Drawings:
• 90511 – Seakeeper 1 Cable Block Diagram
2.4.1 SEAKEEPER 1 TO VESSEL GROUND CONNECTION INSTRUCTIONS
1. Connect CABLE 6, 4AWG, PE cable to vessel grounding bus to comply with:
a. EM/IEC 60204-1 Clauses 6.3.3 and 8.2.3.
b. ABYC E-11 July 2018 Clauses 11.5.2 and 11.16.1.
2. Butt splice CABLE 6, 4AWG (green) to a 4 AWG ground wire (customer-supplied) suitable in
length for the specific installation, as shown in the following Figure.
a. Note: CABLE 6 (GREEN) SHOULD ONLY BE USED FOR GROUNDING THE SEAKEEPER TO THE
VESSEL GROUND.

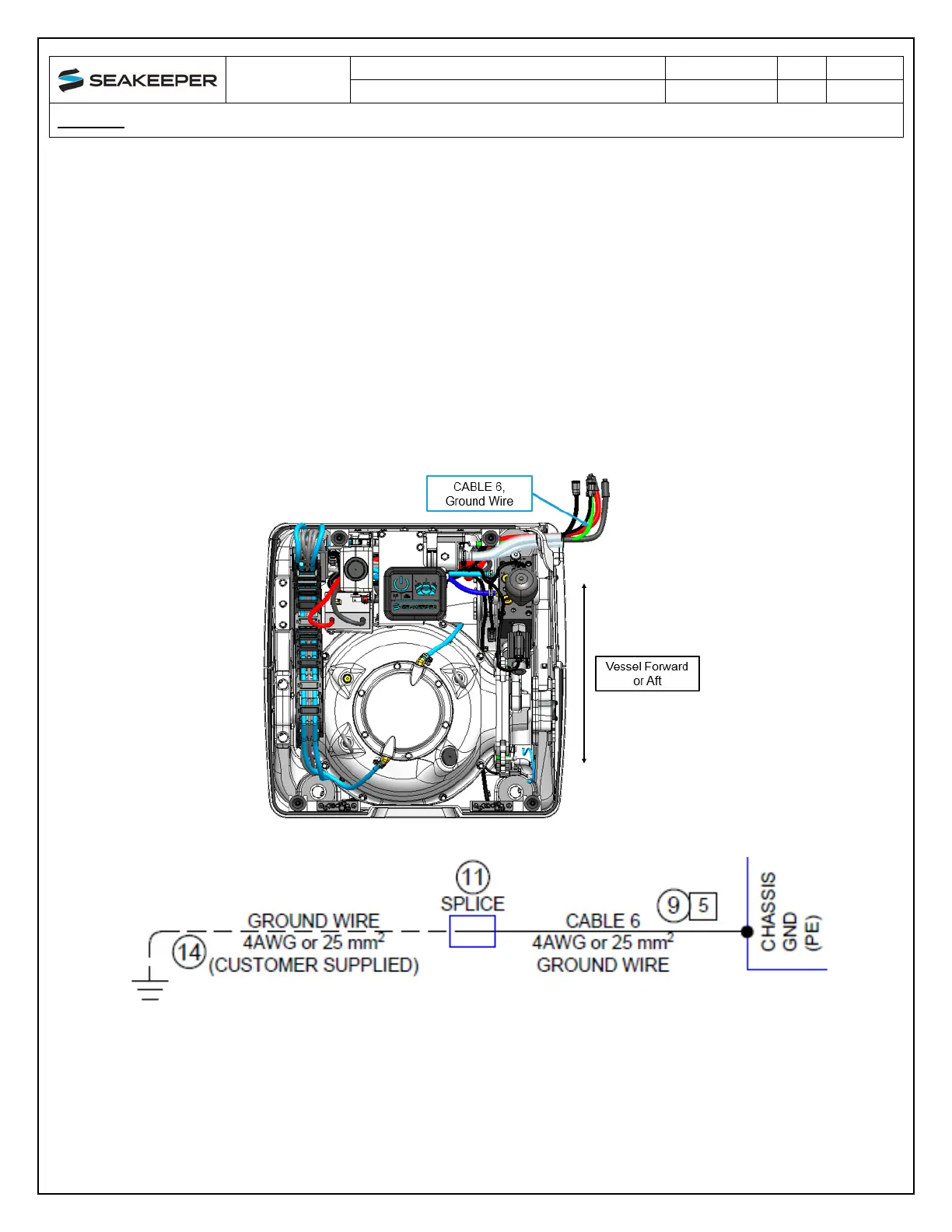

Figure 16: CABLE 6, Ground Wire
Figure 17: CABLE 6, Ground Wire Connection (Drawing No. 90511)
