Section 2: ELECTRICAL INSTALLATION
2.5.2 CONNECTING TO AN OPTIONAL COMPATIBLE MFD
1. The Seakeeper 1 can be connected to a variety of available MFD systems. Refer to the
Technical Bulletins Section of the Seakeeper Technical Library for manufacturer specific MFD
compatibility technical bulletins.
a. MFD specific Technical Bulletins will be updated regularly as new MFD systems become
compatible. Currently GARMIN, RAYMARINE, and SIMRAD offer compatible MFD models
.
b. Once a compatible MFD has been selected, refer to the appropriate manufacturer specific
Technical Bulletin for integration instructions.
2. Connect Seakeeper-supplied CABLE 10, D-Code 10 m cable to MFD manufacturer-specific
Ethernet adapter cable. Custom Ethernet cables for specific MFD manufacturers are available
through Seakeeper and must be purchased with the Seakeeper 1 if connecting to an MFD.

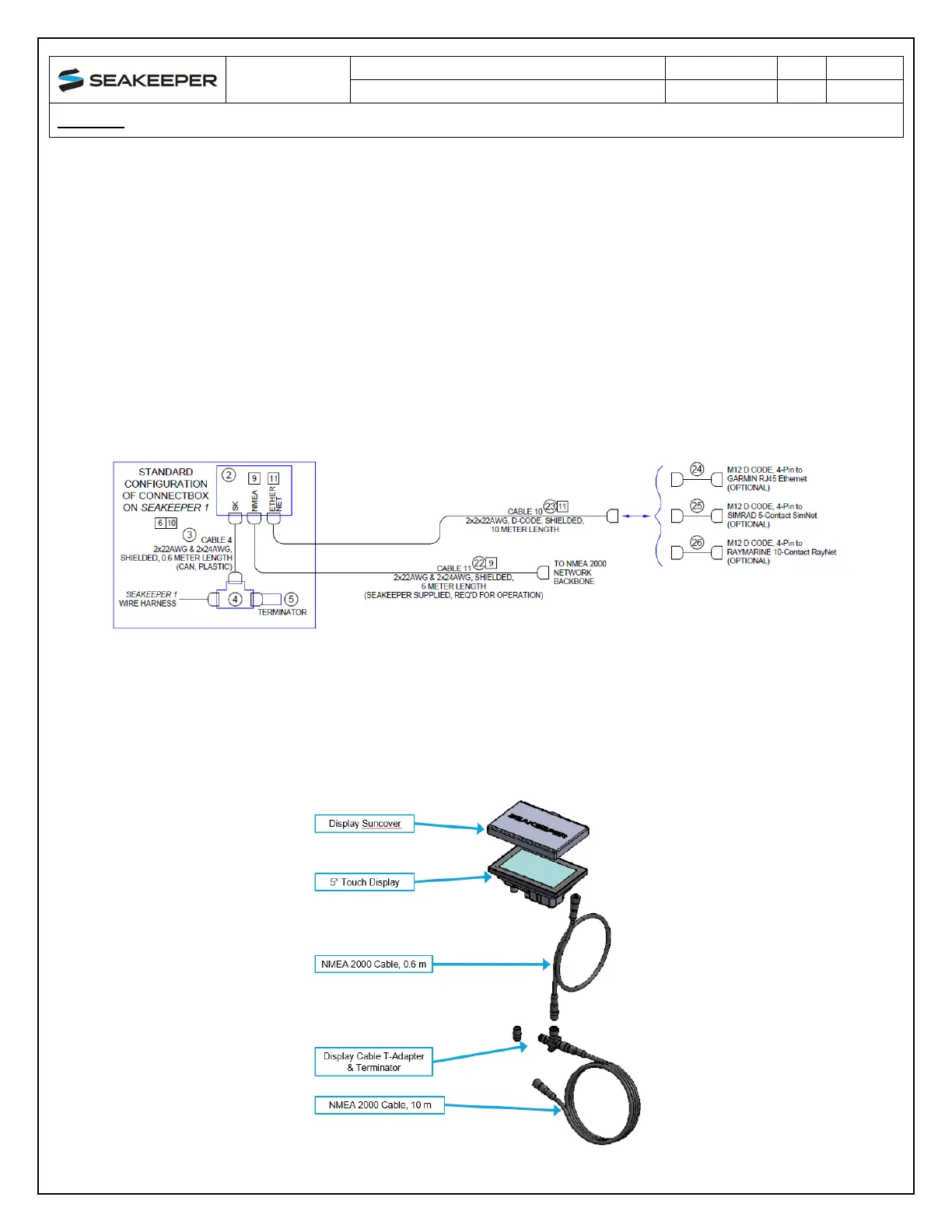

Figure 19: ConnectBox to MFD Connection
2.5.3 CONNECTING TO AN OPTIONAL SEAKEEPER 5” TOUCH DISPLAY
If not utilizing a compatible MFD display, a Seakeeper 5” Touch Display must be purchased from
Seakeeper. The Seakeeper 5” Touch Display (P/N 90600) includes the components shown in the
following Figure and will be integrated with the ConnectBox.
Figure 20: Seakeeper 5" Touch Display Components (P/N 90600)
