Section 2: ELECTRICAL INSTALLATION
2.6 SEAKEEPER 1 NMEA 2000 NETWORK CONNECTION
The Seakeeper 1 requires a connection to the vessel’s NMEA 2000 network backbone. The Seakeeper
1 will monitor information on the NMEA network to support and optimize the performance of the
Seakeeper 1.
1. Connect Seakeeper-supplied CABLE 11 to the customer-supplied NMEA 2000 tee adapter o
n
ves
sel’s NMEA 2000 backbone.
a. An active NMEA 2000 compatible GPS signal is required on the vessel’s NMEA 2000
backbone to operate the Seakeeper 1.
i. If no GPS signal is detected, a warning will be present on the Seakeeper App.

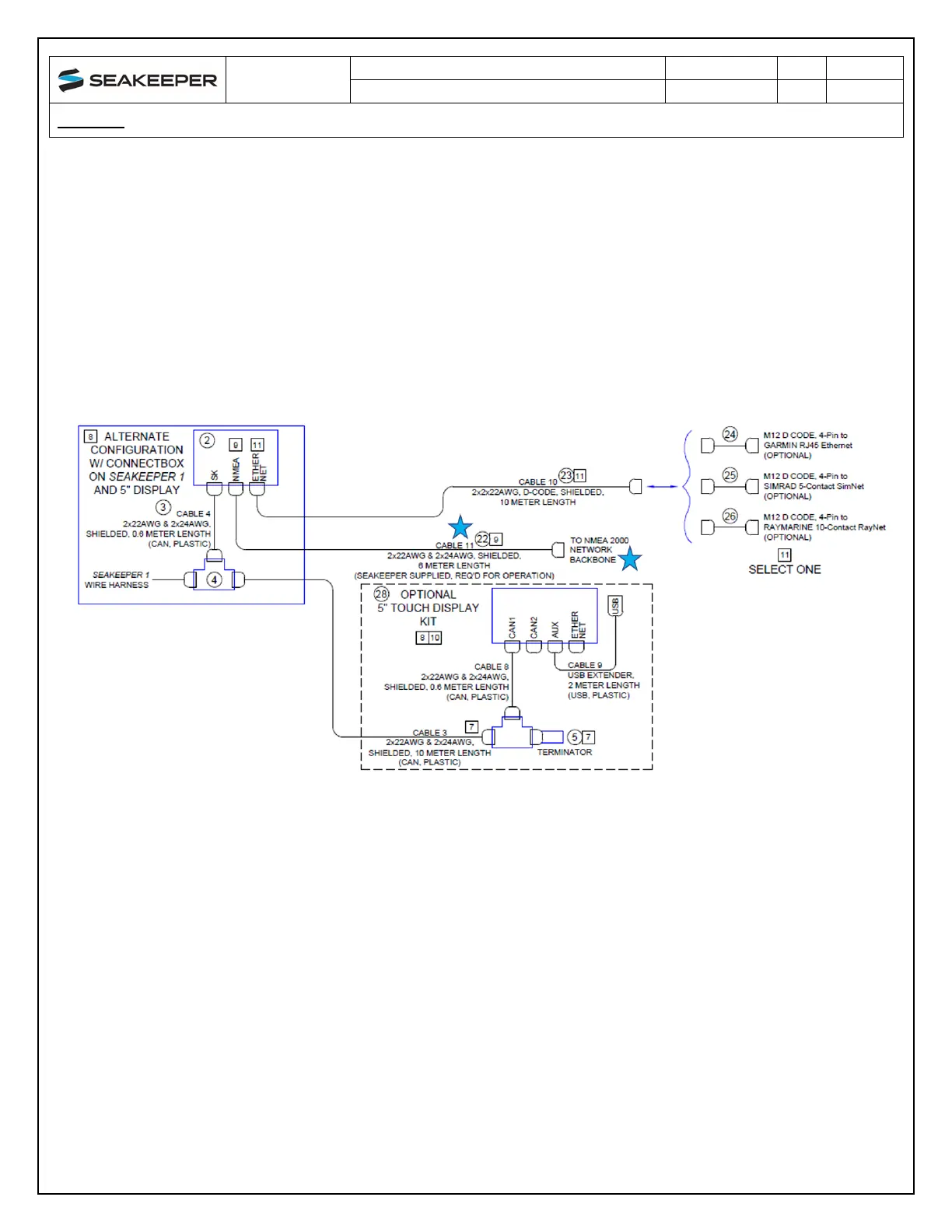

Figure 22: ConnectBox to NMEA 2000 Network Connection (Drawing No. 90511)
