5. RETRO FIT OF DRILL HEAD
WARNING! At least two people are required to move and attach the drill head. Observe good lifting practice.
5.1. Refer to 4.1 and 4.2. for unpacking and degreasing instructions.

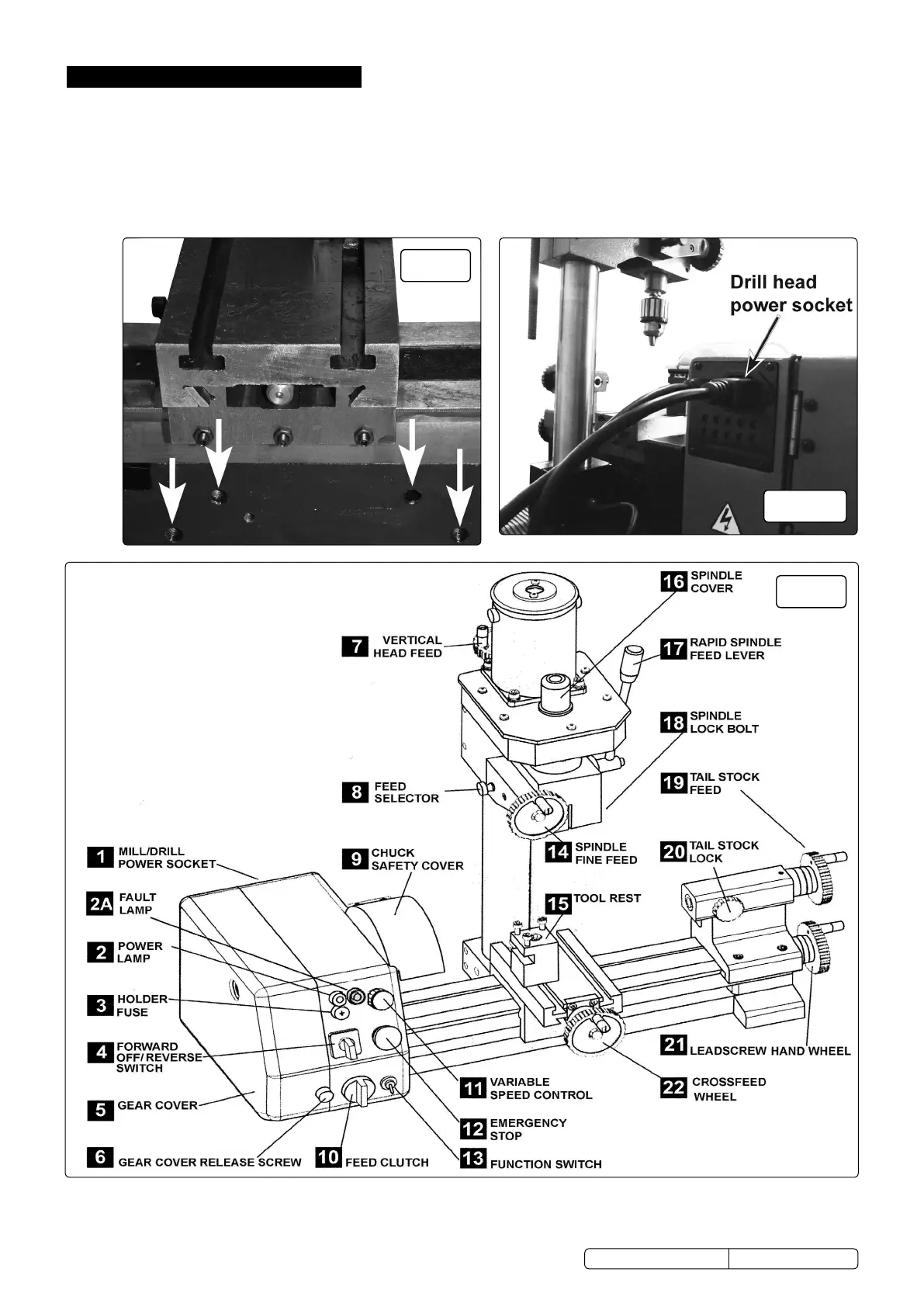

5.2. Bolt the drill head to the rear of the lathe using the four hex headed screws and washers, see g.2.
Note: it may be necessary to move the drill head up the post so that it clears the tool rest on the lathe.
5.3. Fit the rapid spindle feed lever.
5.4. Plug in the power lead (socket is located on the rear of SM2503A), see g.2.1.
Note: Drill head must be powered by the SM2503A only.
DO NOT connect directly to mains power.
Fig.2
Fig.2.1
g.5
Fig.3
g.7A
g.7B
SM2503A, SM2503B Issue:1 - 21/09/15
Original Language Version
© Jack Sealey Limited
