30" GAS RANGE INSTALLATION INSTRUCTIONS
5

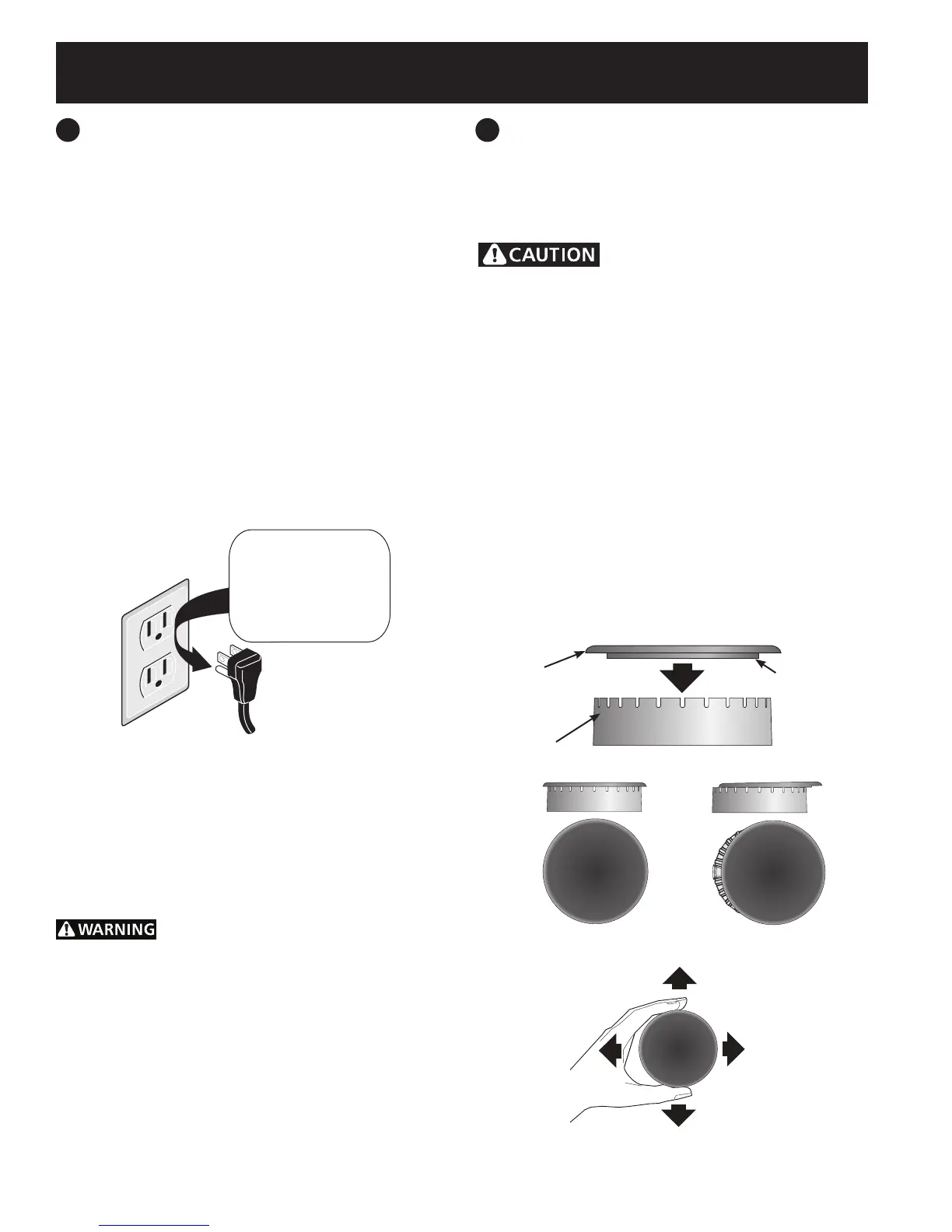

Electrical Requirements
120 volt, 60 Hertz, properly grounded dedicated circuit
protected by a 15 amp circuit breaker or time delay
fuse.
Note: Not recommended to be installed with a Ground
Fault Interrupt (GFI).
Do not use an extension cord with this range.
Grounding Instructions
IMPORTANT Please read carefully.
For personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong grounding wall receptacle (see Figure 6) to
minimize the possibility of electric shock hazard from the
appliance.
The wall receptacle and circuit should be checked by
a qualied electrician to make sure the receptacle is
properly grounded.
6
Assembly of the Burner Caps and Burner
Grates
Refer to the Use and Care Guide packaged with the
cooktop for operating instructions and for care and
cleaning of your cooktop.
Do not touch the burners. They may
be hot enough to cause burns.
Install Burner Caps
This cooktop is equipped with sealed burners. All pieces
are at their place. Take note where they are. Remove
all packaging material. Make sure the burner caps
are properly aligned and leveled. The burner cap lip
(See Figure 7) should t snug into the center of burner
head and rest level. Refer to Figures 8 & 9 for correct
and incorrect burner cap placement. Once in place,
you may check the t by gently sliding the burner cap
from side to side (Figure 10) to be sure it is centered
and rmly seated. When the burner cap lip makes
contact inside the center of the burner head you will be
able to feel it. Please note that the burner cap should
NOT move o the center of the burner head when
sliding from side to side. NOTE: There are no burner
adjustments necessary on this cooktop.
Preferred Method
Grounding type
wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.
Power supply cord with
3-prong grounding plug.
Figure 6
Where a standard 2-prong wall receptacle is installed,
it is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded
3-prong wall receptacle.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Disconnect electrical supply cord from
wall receptacle before servicing cooktop.
Burner Cap
Burner Head
Fig. 7
Fig. 10
Correct Burner Cap
Placement - Fig. 8
Incorrect Burner Cap
Placement - Fig. 9
Burner Cap
Lip
