30" GAS RANGE INSTALLATION INSTRUCTIONS

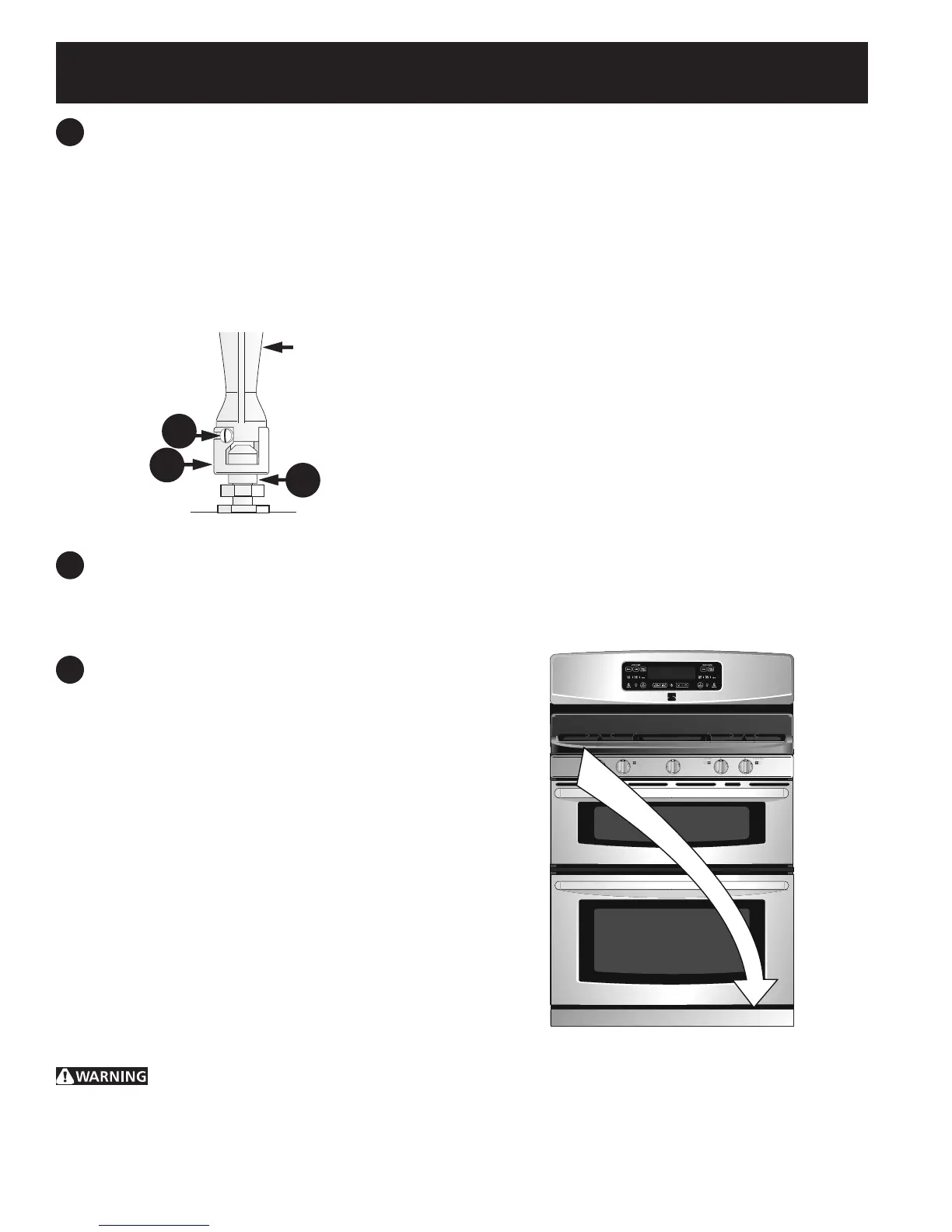

Figure 12
11
Make sure range is level
Level the range by placing a level horizontally on an
oven rack. Check diagonally from front to back, then
level the range by adjusting the leveling legs.
12
After installation is completed, make sure
all controls are left in the OFF position.
LP/Propane Gas Conversion
This appliance can be used with Natural gas or LP/
Propane gas. It is shipped from the factory for use with
natural gas.
If you wish to convert your range for use with LP/
Propane gas, use the supplied xed orices located
in a bag containing the literature marked "FOR LP/
PROPANE GAS CONVERSION." Follow the instructions
packaged with the orices for surface, oven and broil
burners conversion.
The conversion must be performed by a qualied
service technician in accordance with the
manufacturer's instructions and all local codes and
requirements. Failure to follow these instructions
could result in serious injury or property damage.
The qualied agency performing this work assumes
responsibility for the conversion.
Failure to make the appropriate
conversion can result in serious personal injury and
property damage.
Care, Cleaning and Maintenance
Refer to the Use & Care Guide for cleaning
instructions.
If moving the range is necessary for cleaning or
maintenance, shut o gas supply. Disconnect the gas
and electrical supply. If gas or electrical supply is
inaccessible, lift the unit slightly at the front and pull
out away from the wall.
Pull only as far as necessary to disconnect the gas and
electrical supply. Finish moving the unit for servicing
and cleaning. Reinstall in reverse order making sure to
level the range and check gas connections for leaks.
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide.
It may save you time and expense. The list includes
common occurrences that are not the result of
defective workmanship or materials in this appliance.
Refer to your Use and Care Guide for Sears service
phone numbers, or call 1-800-4-MY-HOME
®
.
Serial Plate Information
The serial plate is located on the decorative bottom trim
and it is visible when the lower oven door is opened.
10
Air Shutter-Broil Burner
The approximate ame length from the burner is 1 inch
(distinct inner cone of blue ame).
To determine if the broil burner ame is proper, set the
oven to broil.
If ame is yellow in color, increase air shutter opening
size (see "2" in Figure 12 ). If the entire ame is blue,
reduce the air shutter opening size.
To adjust, loosen lock screw (see "3" in Figure 12),
reposition air shutter, and tighten lock screw.
Oven Burner Tube
Orice Hood
Lock Screw
1
2
3
