l

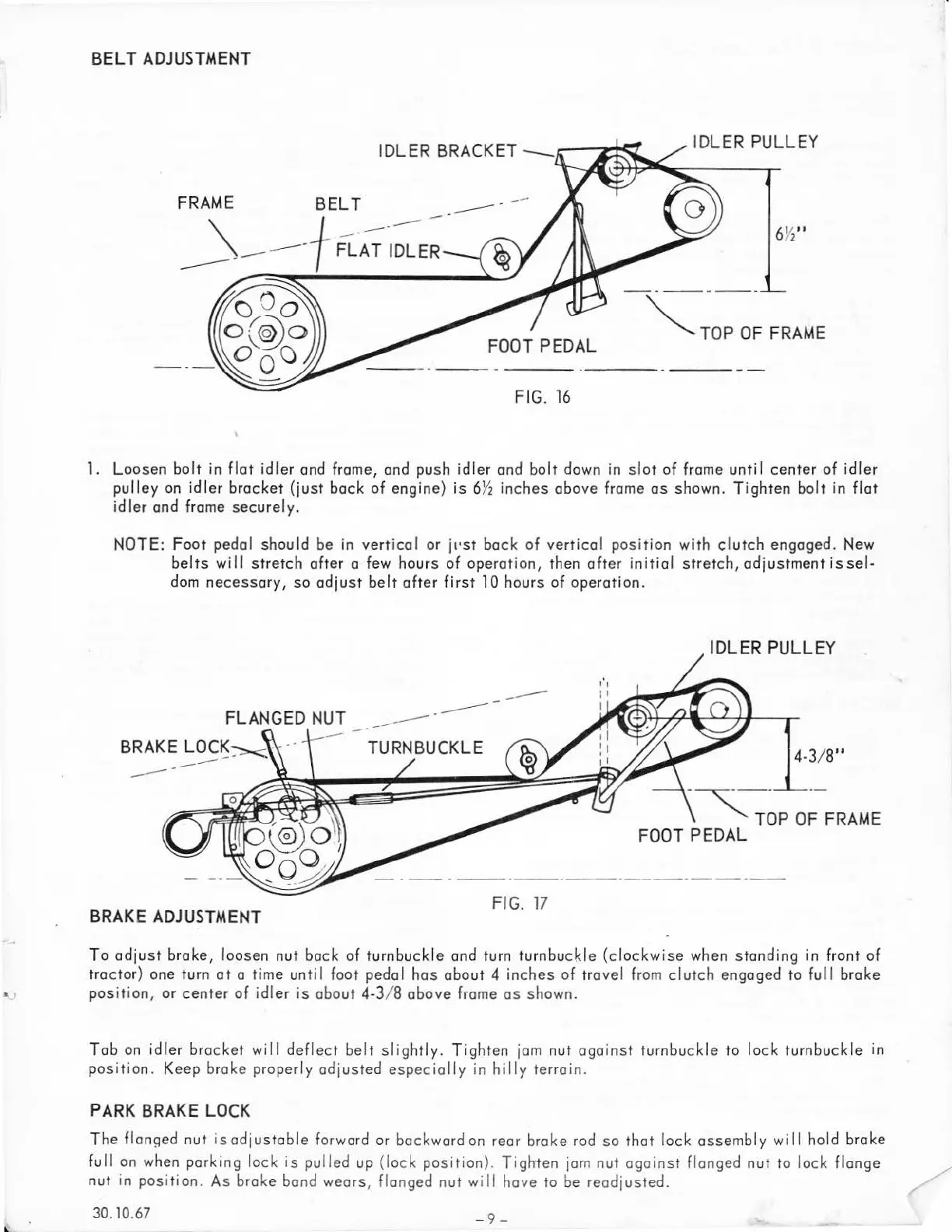

BELT
ADJUSTMENT
-----.
--
6
}1'
'
~TOP
OF
FRAME
FIG.
16
1.
L oosen
bolt
in
flat
idler
and
frame, and push
idler
a
nd
bolt
down in
slot
of
frame unti I center
of
idler
pulley
on
idler
bracket
{just
back
of
engine)
is
6!-1
inches above frame as shown.
Tighten
bolt
in
flat
idler
and frame securely.
NOTE:
Foot
pedal should
be
in
vertical
or j1•st bock
of
vertical
position
with
clutch
engaged. New
belts
will
stretch
after a few hours
of
operation, then
after
initial
stretch,
adjustment
isse
i-
dam
necessary, so
adjust
belt
after
first
10
hours
of
operation.
IDLER
PULLEY
-
----
.--
----
-------
4-3/
8"
---
·-
--
----
---
--
---
BRAKE
ADJUSTMENT
FIG.
17
To
adjust
brake, loosen
nut
bock
of
turnbuckle
and turn turnbuckle
(clockwise
when standing in front
of
tractor) one tu
rn
at
a time unt
il
foot pedal has about 4 inches
of
travel from
clutch
engaged to
full
broke
"'
.J
posit
io
n, or center
of
idler
is
about 4-3/ 8 above frame as shown.
Tab
on
idler
brocket
will
deflect
belt
slightly.
Tighten
jam
nut against turnbuckle
to
lock
turnbuckle
1n
position.
Keep brake properly adjusted
especially
in
hilly
terrain.
PARK
BRAKE
LOCK
The
flanged nut
is
adjustable
forward or backward
on
rear broke rod so
that
lock assembl y wi II hold brake
full
on
when parking
lock
i s
pu
ll
ed
up
(l
ock pos
it
ion). Tigh1en
jarn
nut
against
flanged nut to
lock
flange /
nut in
position
.
As
broke bond wears, flanged nut
will
have to
be
readjusted.
./'
30.10.67
-
9-
