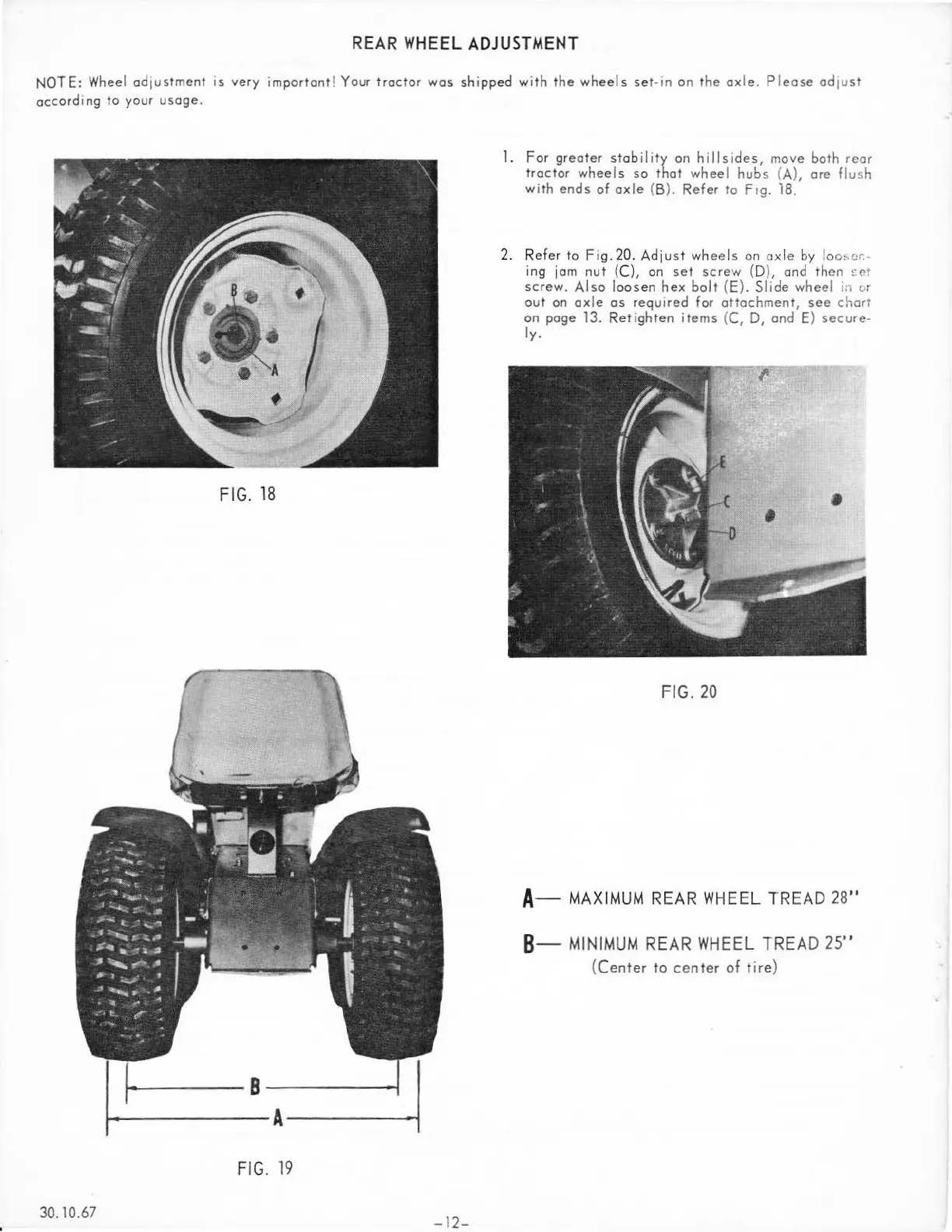

REAR WHEEL ADJUSTMENT
NOTE: Wheel adjustment is very importan t ! Your tractor was shipp ed with the wheels se t-in on the axle. P leas e ad1ust
according to your usage.
FIG. 18
FIG. 19
30. 10.67
-12-
l. For greater st ab i li ty on hillsides, move both rear
tractor wheels so that wheel hubs ( A), ore flush
with ends of axle (B). Refer to F 1g. 18.
2. Ref er to Fig .20 . Adjust wheels on axle by loo;.c:r .•
ing jam nut ( C) , on set screw {D), and then ::ct
screw. Also loosen hex bolt (E). Slide wheel in ur
out on axle as required for attachment, see chart
on page 13. Retighten items (C, D, and E) secure-
ly.
FIG. 20
A- MAXIMUM REAR WHEEL TR EAD 28 "
8- MINIMUM REAR WHEEL TREAD 25"
(Cent er to center of tire)
