BayStar/SeaStar Hydraulic Steering
HYDRAULIC STEERING
HOSE AND TUBING
b) BayStar Nylon Tubing.
• Slide tube not over tubing.
• Push tubing into bottom of component fittings.
• Hand tighten tube nut, ensuring that the tube is bottomed
out against the fitting while tightening.
• After hand tightening, hold the fitting with a wrench, turn
an additional 1-1/2 turns with a 5/8" wrench.
Ensure that the tubing is pushed
ALL the way in.
CAUTION
TUBE NUT
COMPONENT FITTING
DO NOT USE
PIPE SEALANT HERE
3/8" NYLON
OR COPPER
TUBE 3/8"

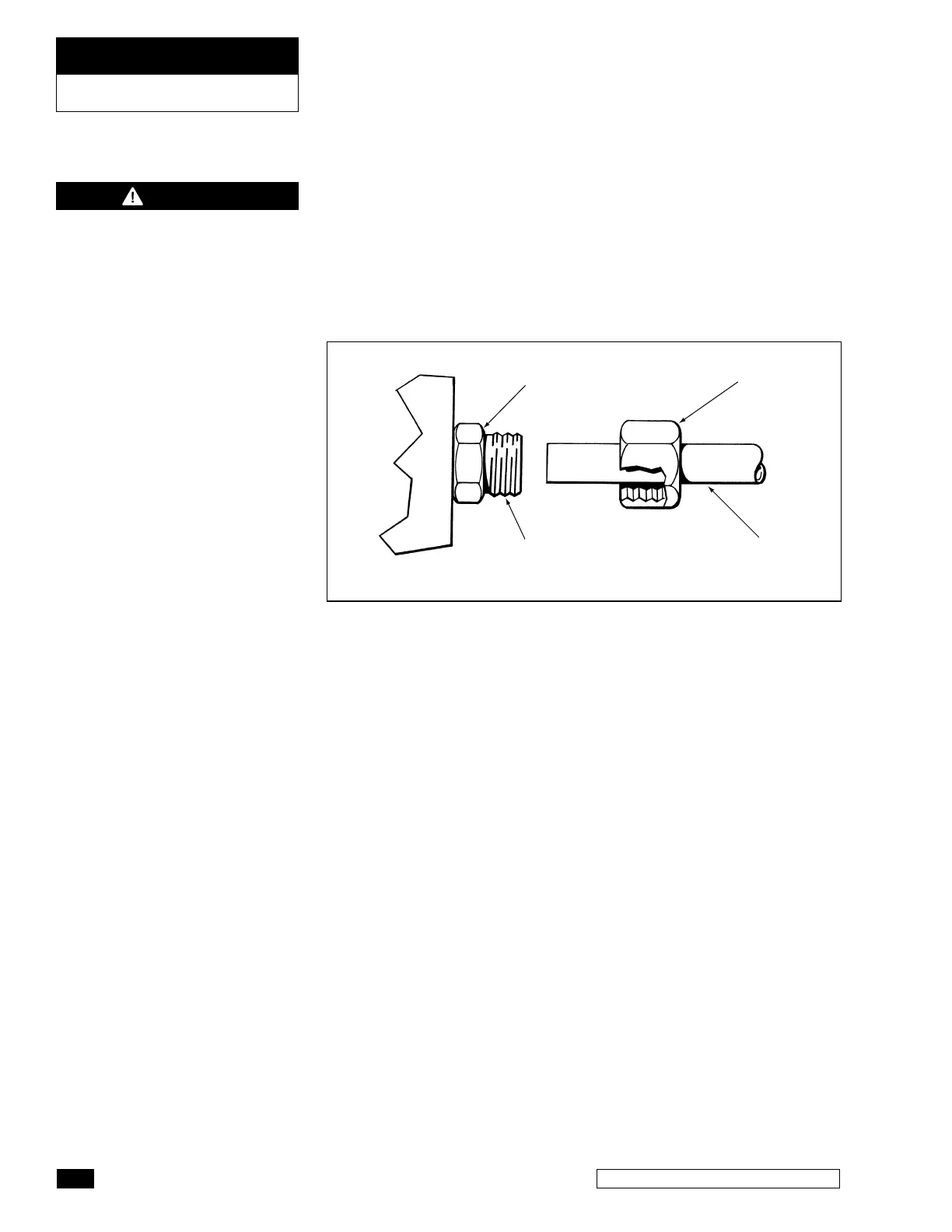

Figure 6. Connection to Helm Pump shown.
