4
BayStar/SeaStar Hydraulic Steering
SPLASHWELL MOUNT
CYLINDER HC5380-3
BEFORE attempting installation of this Splashwell Mount Cylinder,
consult the mounting configuration below for proper position of the
mounting foot to the transom. As the Splashwell cylinder requires
through bolting on the transom it will be necessary to contact the
boat manufacturer for proper preparation of the transom holes.
NOTICE
1. Draw out the mounting configuration of the cylinder, including
the 3/8” holes on the transom.
2. Drill and prepare through transom holes as recommended by
boat manufacturer.
3. Secure cylinder to transom using Grade 5, or better, stainless
steel bolts. DO NOT use lag bolts to secure cylinder to transom.
4. Connect cylinder to the steering arm of the outboard motor
using the provided nut/bolt. Torque to 20 ft-lb.
5. Bleed steering system as outlined in the Filling and Purging
section.
6. Confirm no interference with any other equipment throughout
the engine steering range, and in ALL trim/tilt positions, if
interference is noticed it MUST be corrected prior to use.
TRANSOM
3.12"
(79 mm)
4"
(102 mm)
5.0625"
(129mm)
1.5"
(38 mm)

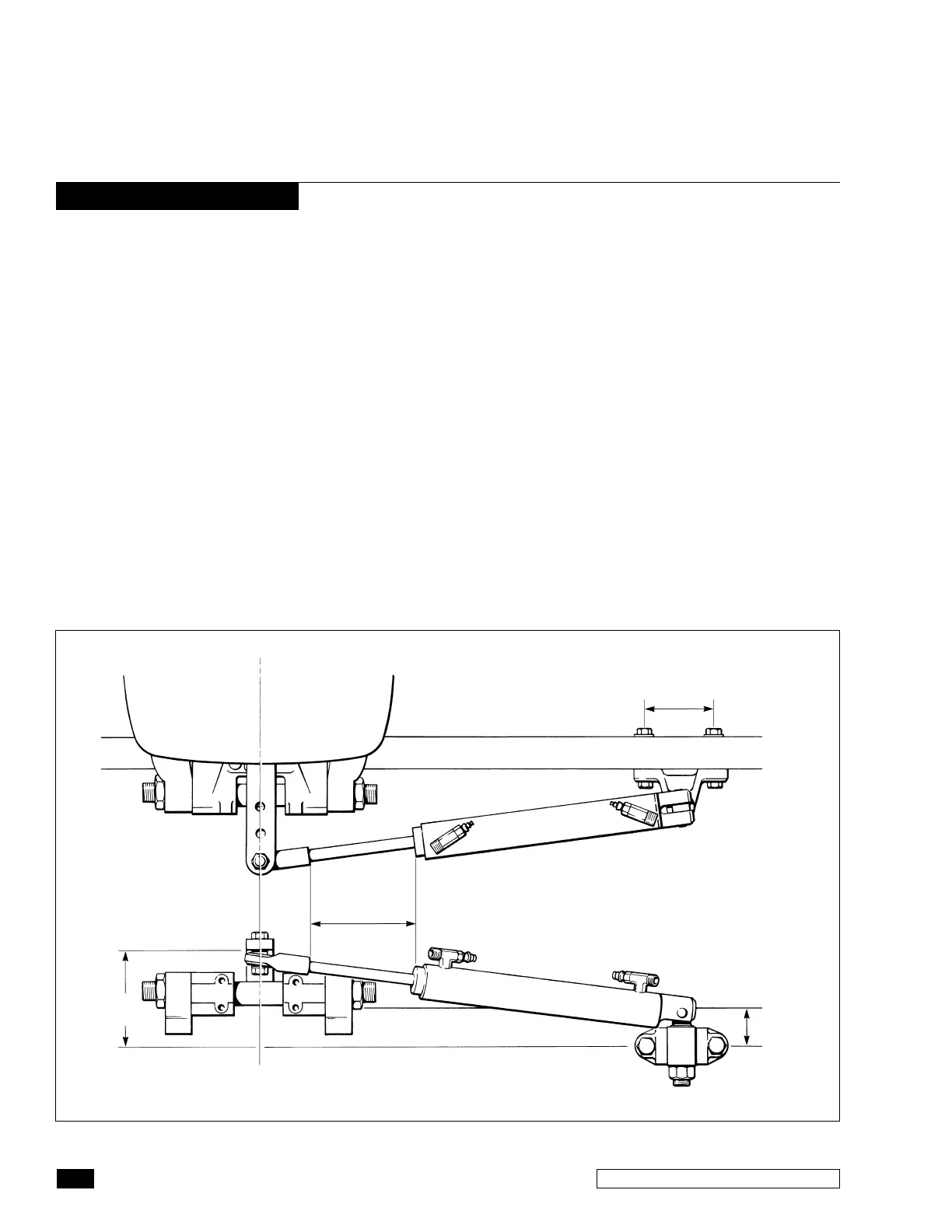

Figure 2. HC5380-3 Splashwell Mount Cylinder.
