Side Mount & Splashwell Mount Cylinders
3
HYDRAULIC STEERING
SIDE MOUNT CYLINDER
SPECIAL PIN
EXTENSION ROD
ALIGN HOLES
3
2
LINK ARM SUPPLIED BY
ENGINE MANUFACTURER
10.25" (261mm)
AT FULL EXTENSION
(WITH 11" TILT TUBE)
TILT TUBE
13.125" (334 mm)
1
3/8" COMPRESSION FITTING
1.625" DIA
(42 mm)
1.5" (38 mm)
ACROSS WRENCH FLATS
TORQUE TO 50-75 FT.LB.
BLEED NIPPLE
1.94"
(50 mm)

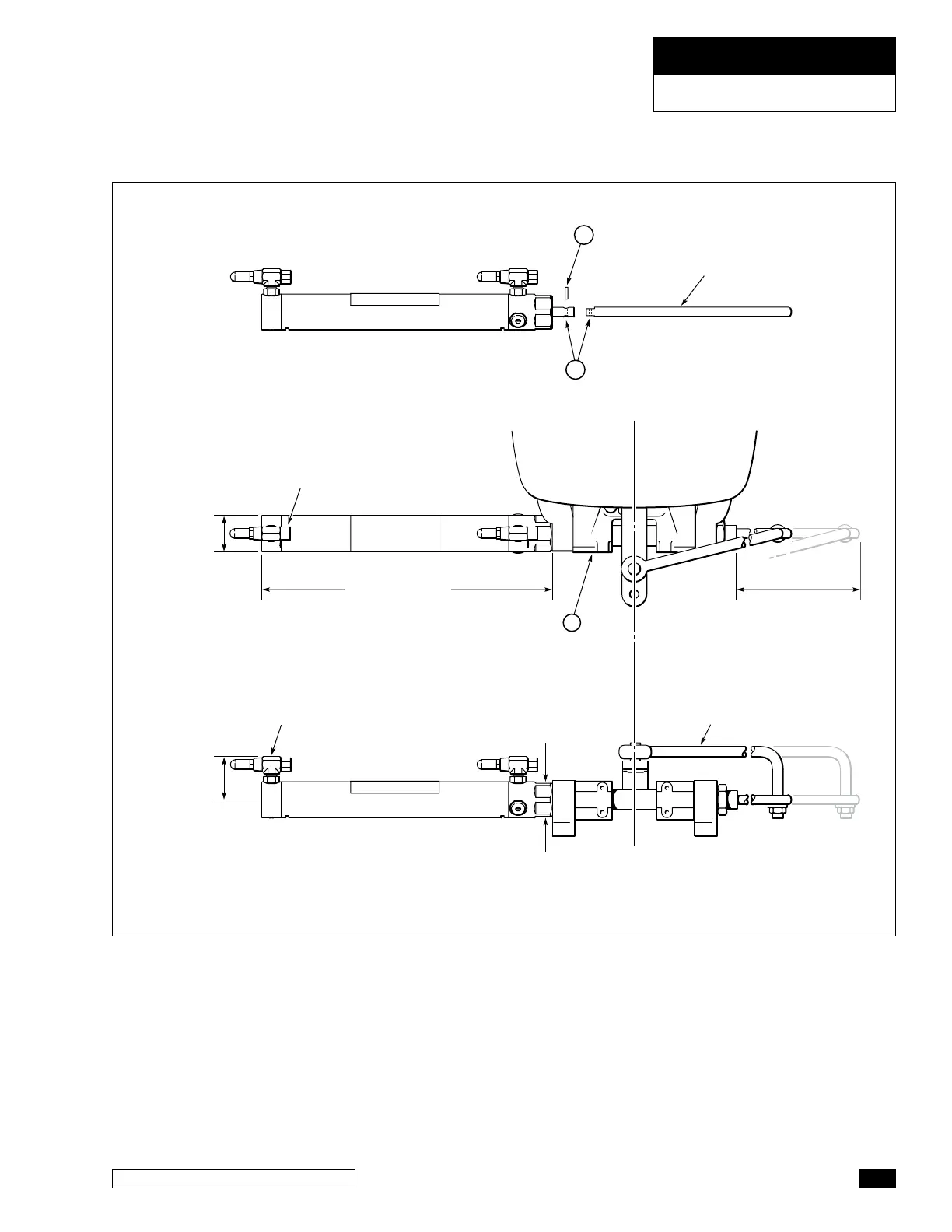

Figure 1. HC5370-3 SeaStar Side Mount Cylinder shown, BayStar similar.
