HYDRAULIC STEERING
11
Side Mount & Splashwell Mount Cylinders
FILLING AND PURGING

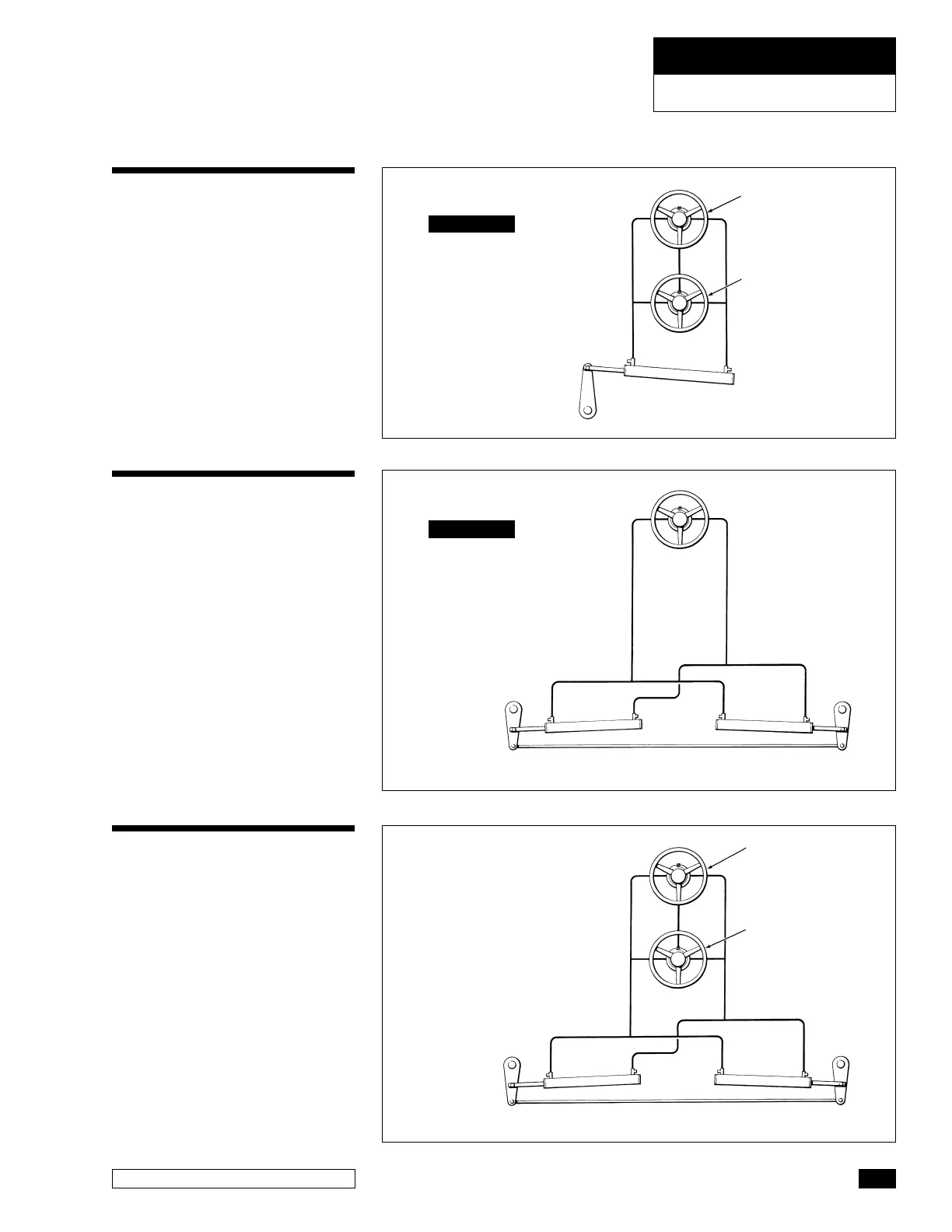

Twin Station Single Cylinder
• Perform steps 1 through 5 at
station no. 1.
• Then repeat steps 1 - 5 at
station no. 2.
• Oil requirements 4 - 5 bottles.
STATION NO.2
STATION NO.1
Refer to
Oil Level and System
Check on page 12.
NOTICE
Single Station Twin Cylinder
• When performing steps 1
through 5, perform
instructions in each step first
on cylinder no. 1 and then on
cylinder no. 2, before
proceeding to the next step.
ie: Perform instructions
referring to right side of
cylinder first on cylinder no. 1
and then on cylinder no. 2.
• Oil requirements 4 - 5 bottles.
CYLINDER NO.2 CYLINDER NO.1
Refer to
Oil Level and System
Check on page 12.
NOTICE
Figure 13.
Figure 14.
Twin Station Twin Cylinder
• Follow same procedure as
instructed for single-station/
twin-cylinders, beginning at
station no. 1, and repeat entire
procedure at station no. 2.
CYLINDER NO.2 CYLINDER NO.1
STATION NO.2
STATION NO.1
Figure 15.
