Sebo 300 - SEBO 300 Power Head Schematic

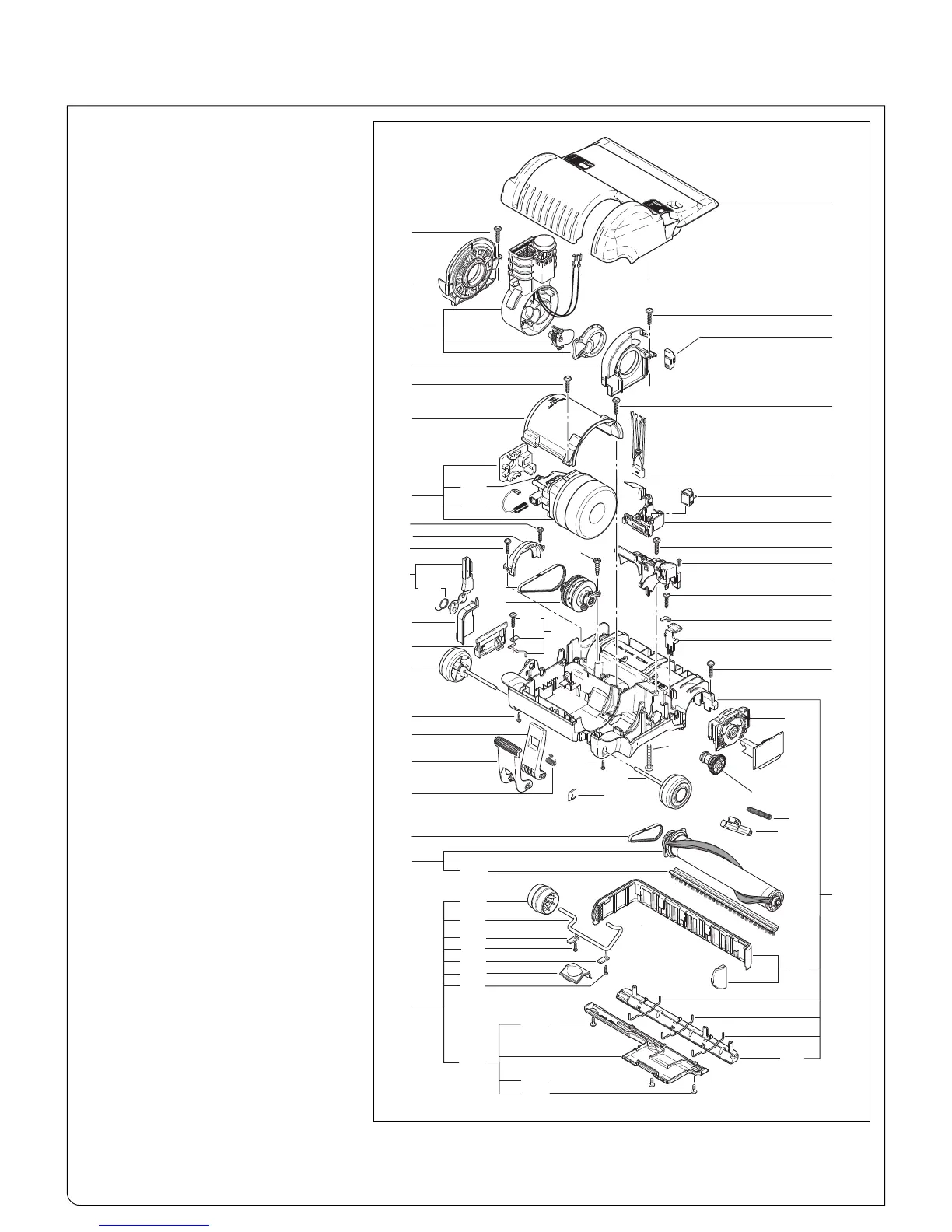

MECHANICAL 300 SCHEMATIC AND PARTS LIST
#91303AM
Pos. Part # Description
100 50401GSAM Power head cover 300
101 1013ER Suppressor kit
102 50414HGER Chassis 300
103 50313HG Bumper
1
04 05112WI Switch cpl.
105 50443UL Switching unit
1
06 50308ER Air channel cover
107 2856 Clamp
108 50403HGER Brush roller release 300
109 50356HG Bearing block r.h.
110 50367HG Position cams
111 2833 Thrust member
112 50352HG Brush strip cover
1
13 2834 Thrust member
114 50404HGER Front bottom plate
1
15 2849 Axle clamp
116 50310HGER Rear bottom plate 300
117 2868OR Access door
118 2861 Pile adjustment axle
119 5174HG Pile adjustment wheel
1
20 50415 Brush strip
121 50470ER Brush roller 300
1
22 5110 Belt 219 3M HTDII-6
123 50332ER Spring
124 2869HG Rubbing plate
125 50348HGER Axle w/wheel
126 50330OR Foot pedal
127 50331HG Catch pedal
128 50334SW Covering cap
129 50306OR Power switch button
1
30 50371ER Switch rod
131 5379 Belt 312 3M HTDII-6
132 50445ER Sensor
133 5107-1 Support spring
134 50438HGER Support lever w/spring
135 50355HG Bearing block l.h.
136 50465ER Motor 1000 W/120V
137 05117S Carbon brush set (100/120V)
138 5117/1 Sensor pulley
139 50441UL Motor cover
140 50440ER Swivel neck support r.h.
141 50448HG Swivel neck cpl. 2-wire
142 50439ER Swivel neck support l.h.
143 0102 Screw F 3.9 x 13
144 0197 Screw M 4 x 12 Z1
145 01016 Screw STS 4 x 16 T20
146 01010 Screw AM 4 x 16 DIN 7985
147 0104 Screw C 3.9 x 25 DIN 7981
148 0176 Screw AM 4 x 30
149 01042 Screw 4 x 10
150 2867 Spring
150
C
H
E
C
K
B
R
U
S
H
O
N
/
O
F
F
121
119
118
120
127
126
117
123
122
100
102
102
136
143
143
145
133
139
141
140
142
137
138
108
106
104
105
145
145
107
145
109
145
116
114
113
128
129
125
125
124
115
143
115
146
144
144
144
112
110
148
130
132
147
134
101
145
145
145
103
131
145
135
145
111
149
Power Head
14
