Sebo Automatic X5 User Manual

13
AUTOMATIC X4 | X5 SCHEMATIC AND PARTS LIST
#9570AM X4, #9580AM X5 White/Gray and
#90506AM X4 BOOST Arctic White Machines
P
os. Part # Description
1 5642AM Handle complete - gray black/white
(
incl. pos. 2 -13)
2
5297GSAM Handle grip (incl. pos. 3, 7+10)
3 5359GS Grommet
4
5450DG Power supply cord
5
05113 Switch w/screws
6 5160WE Switch cap - arctic white
7
5161GS Switch cap holder
8 5162 Cable clamp
9 0103 Screw C 3.9x16 DIN 7981
1
0 5253UL Wire-antistatic
11 5298ER Handle cable
1
2 0129 Screw M 4x12 DIN 966
1
3 5187 Handle tube
14 0102 Screw F 3.9x13 DIN 7981
15 5040SB Hose, cpl.
1
6 5045GS Cleaning wand
17 5707WE Cover - arctic white
1
8 5319 Bag holder spring
1
9 5706GS Cover release - gray black
20 5091 Safety catch spring
2
1 5360 Safety catch
22 5324 Bag holder cpl. (incl. pos. 20+21)
2
3 50750SE Front cover complete (14, 17-22) - arctic white/
g
ray black
5454 Front cover seal
24 5093AM Ultra filter bag pack
2
5 5036AM Pre-motor microfilter
2
6 5380GS Internal cover cpl. (incl. pos. 40+41)
2
7 1073 Clamp
28 5208 Filter safety catch
2
9 5210 Return spring
3
0 5164 Cable clamp
31 5722GS Bag housing locking catch - gray black
32 1859GS Handle catch - gray black
33 0161 Clip 4, DIN 6799
34 5721WE Carrying handle - gray black
35 5703WE Cable hook - white
36 5146 Stop spring
37 5424GS Retaining ring
38 5299ER Internal cable
39 5266 Cable clamp
40 5842 Seal
41 5289 Seal
43 1823GS Attachment clip - gray black
44 5084 Spring for locking rod
45 5163 Seal
46 5083 Locking rod
47 5702WE Bag housing bumper base - white
48 5755WE Bag housing, cpl. - arctic white/gray black
(incl. pos. 9, 14, 26-47)
49 1092GS Crevice nozzle
50 1491GS Upholstery nozzle
51 5460GS Mounting clip with screw
52 1387GS Dusting brush
#9501AM X4 Onyx/Silver Machine Exceptions
1 5640AM Handle complete - black/silver
2 5295AM Handle grip
3 5359SW Grommet
6 5160SB Switch cap - silver
7 5161SW Switch cap holder -black
16 5045SW Cleaning wand - black
17 5707SW Cover - black
19 5706SB Cover release - silver
23 5774SE Front cover complete - black/silver
26 5380SW Internal cover
31 5722SB Bag housing locking catch - silver
32 1859SB Handle catch - silver
34 5721SW Carrying handle - black
35 5703SW Cable hook - black
37 5424SB Retaining ring
43 1823SW Attachment clip - black
47 5702SW Bag housing bumper base - black
48 5763SW Bag housing complete - black
49 1092SW Crevice nozzle - black
50 1491SW Upholstery nozzle - black
#9577AM X4 and #9587AM X5 Blue/Yellow Machine Exceptions
1 5647AM Handle complete - gray black/yellow
6 5160SG Switch cap - yellow
17 5707DB Cover - dark blue
19 5706SG Cover release - yellow
23 5749SE Front cover complete - dark blue/ yellow
31 5722SG Bag housing locking catch - yellow
32 1859SG Handle catch - yellow
34 5721DB Carrying handle - dark blue
35 5703DB Cable hook - dark blue
47 5702DB Bag housing bumper base - dark blue
48 5755DB Bag housing complete - dark blue/yellow)

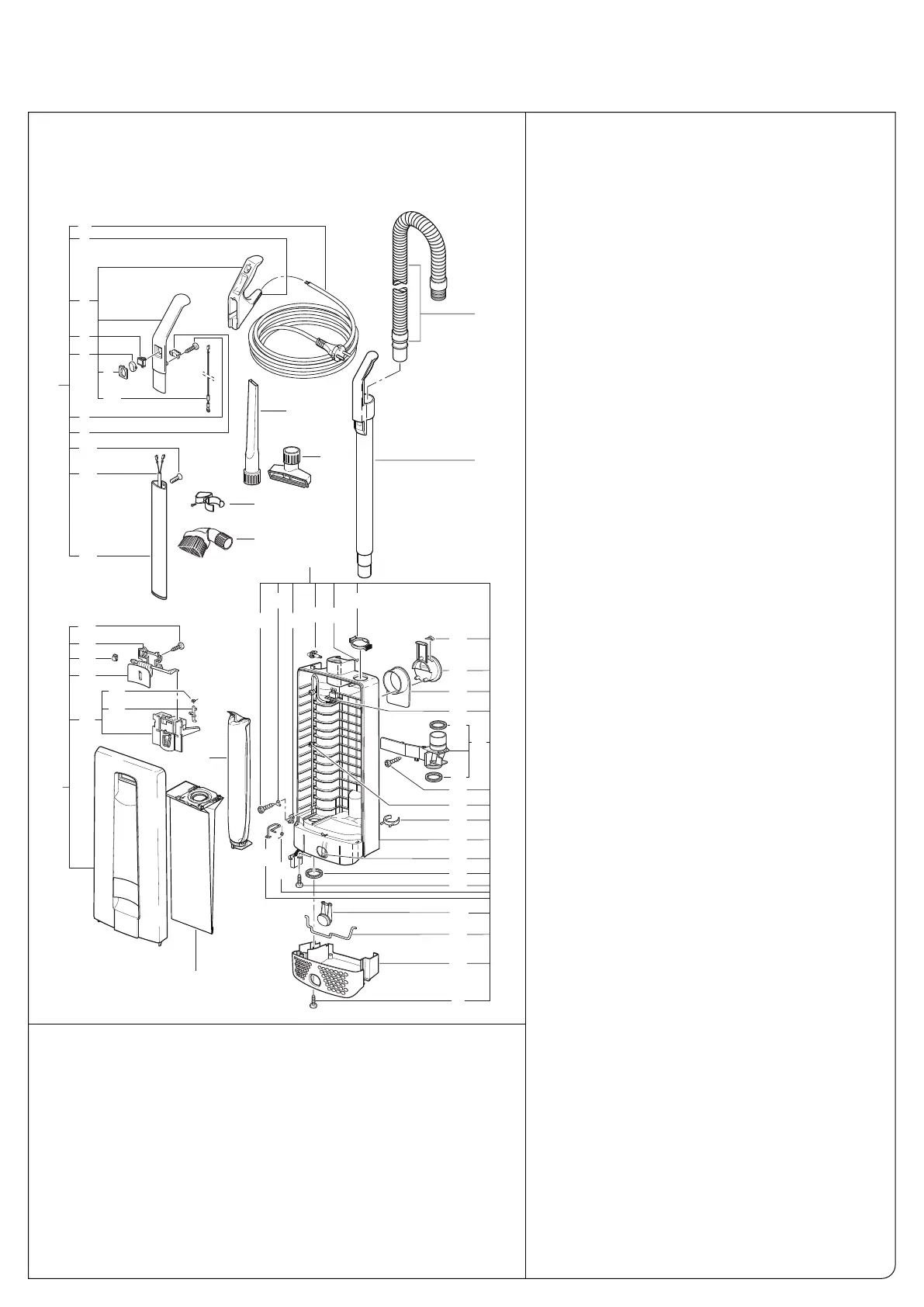

Bag Housing and Handle
15
16
9
35
14
26
40
1
10
23
24
7
2
3
5
6
9
8
13
25
12
11
4
22
21
19
18
20
17
14
34
36
43
47
45
14
46
47
39
31
27
48
37
29
28
30
41
14
44
38
32
33
52
51
49
50
#9570AM X4 Arctic White/Gray
#9501AM X4 Onyx/Silver
#9577AM X4 Blue/Yellow
#9558AM X4 Red/Gray
#90504AM X4 BOOST Graphite
#90505AM X4 BOOST Dark Red
#90506AM X4 BOOST Arctic White
#9580AM X5 White/Gray
#9587AM X5 Blue/Yellow
#90504AM X4 BOOST Graphite Machine Exceptions
Pos. Part # Description
1 50639AM Handle complete - gray black
2 5297GSSE Handle grip
6 5160SB Switch cap - silver
17 5707GS Cover - gray black
19 5789SB Cover release - silver
23 50747SE Front cover complete -
gray black/silver
31 5722SB Bag housing locking catch -
silver
32 1859SB Handle catch - silver
34 5721GS Carrying handle - gray black
35 5703GS Cable hook - gray black
37 5424SB Retaining ring - silver
47 5702GS Bag housing bumper base -
gray black
48 5763GS Bag housing cpl. - gray black
#9558AM X4 Red/Gray and #90505AM
X4 BOOST Dark Red Machine Exceptions
Pos. Part # Description
1 5645AM Handle complete -
red/gray black
6 5160DR Switch cap - red
17 5707DR Cover - red
23 50751SE Front cover complete -
red/gray black
34 5721DR Carrying handle - red
35 5703ER Cable hook - red
47 5702GS Bag housing bumper -
gray black
48 5755DR Bag housing complete -
red/gray black

Sebo Automatic X5 Specifications

General

Power control	Electronic
Maximum input power	1300 W
Airflow	50 l/s
Proper use	Home
Vacuum air filtering	-
Type	Cylinder vacuum
Cleaning type	Dry
Dust capacity	3.5 L
Product color	Blue, Yellow
Tube material	The material the tube is made of.
Manual	Yes
Vacuum brushes included	Dusting brush

Weight and Dimensions

Width	370 mm
Weight	7500 g
