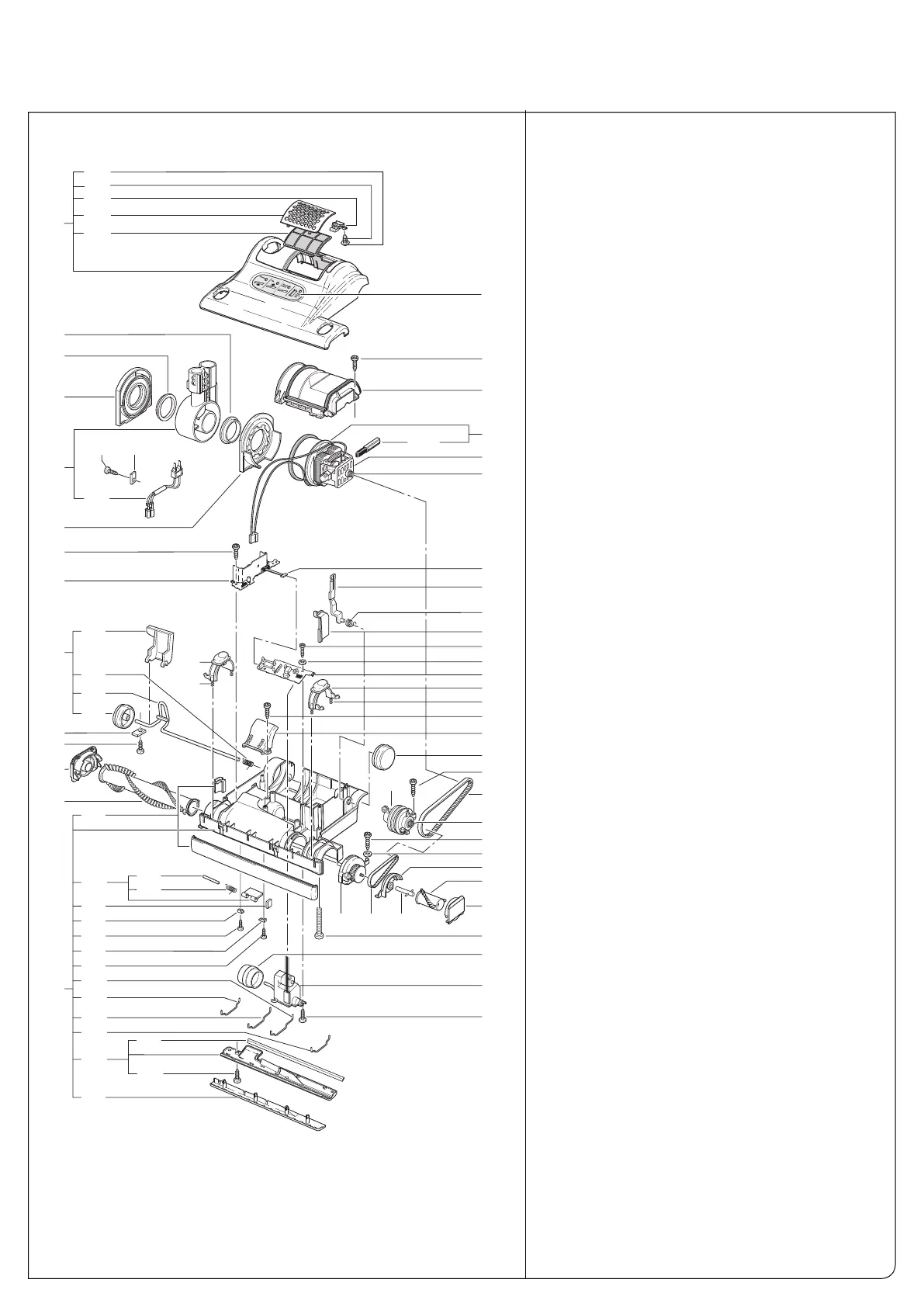

AUTOMATIC X5 SCHEMATIC AND PARTS LIST
#9580AM X5 Arctic White/Gray Machine
P
os. Part # Description
1
00 5791SE Power head cover, complete - (incl. pos. 101-103,
165, 166, 169) - arctic white/gray black
1
01 5712WE Exhaust filter catch - white
1
02 5143 Exhaust filter
103 5711WE Exhaust filter cover - white
1
04 5729UL Swivel neck assembly (105-108 & 111)
1
05 5176UL Male contact holder
106 0102 Screw F 3.9 x 13 DIN 7981
1
07 2494 Cable clamp
1
08 5101 Swivel neck bearing r. h.
109 5178 Swivel neck support r. h.
1
10 5728 Swivel neck support l. h.
1
11 5717 Swivel neck bearing l. h.
112 5848ER Power supply 100-120V
1
13 5205/1 Ribbon cable
114 5713WE Brush roller release - arctic white
1
15 5103 Spring
116 5051GS Axle, assembly (117-120)
117 5059OR Foot pedal, orange
1
18 5053 Axle
119 5819GS Wheel
120 2010 Axle spring
1
21 2014 Axle clamp
122 5031WE Bearing block right hand - white/gray black
123 5290AM Brush roller set
1
24 5230GS Bumper set
125 5155GS Rubbing plate
126 5172OR Access door (incl. pos. 127 + 128)
127 5303 Access door axle
1
28 5304 Access door spring
129 5154GS Hinge
130 0100 Screw C 2.9 x 9.5 DIN 7981
1
31 0176TL Screw AM 4 x 30 DIN 7985 TL
1
32 5174GS Pile adjustment wheel
1
33 5060ER Servo motor with gear box
1
34 5413GS Front bottom plate, complete
135 5414GS Rear bottom plate, complete
(incl. pos. 136 + 139)
136 5400-2 Sealing strip
137 5401 Wire tie
138 5402 Wire tie
139 0197 Screw M 4 x 12
140 5321GS Chassis, complete (124-130 & 134-139)
141 5468 Vacuum motor 1300 W 120 V (142 & 143)
05117S Carbon brush set-vac mtr.
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5849ER Computer controller 100-240V
148 0107 Screw C 2.9 x 13 DIN 7981
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5465 Sensor w/screws and pulley
152 0104 Screw C 3.9 x 25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5767HG Bearing block l. h., complete
156 0103 Screw C 3.9 x 16 DIN 7981
157 0141 Locking washer
158 5018UL Motor cover
159 5714WE Brush cover release, X5 - arctic white
160 5244HG Seal bearing
161 5249WE Brush cover - white/gray black
162 5250 Edge brush
163 5246 Shaft extension, complete
164 5117/1 Sensor pulley
165 0103 Screw C 3.9 x 16 DIN 7981
166 0141 Locking washer
169 5730GS Display - gray black
#9587AM X5 Blue/Yellow Machine Exceptions
100 5796AM Power head cover complete - (incl. pos. 101-103,
165, 166, 169) - dark blue/yellow
101 5712DB Exhaust filter catch - dark blue
103 5711DB Exhaust filter cover - dark blue
114 5713DB Brush roller release - dark blue
122 5031DB1 Bearing block right hand -
dark blue/gray black
159 5714DB Brush cover release, X5 - dark blue
161 5249DB1 Brush cover - dark blue/gray black
169 5730SG Display - yellow
109
108
111
110
104
106
122
123
106
121
116
119
115
114
112
107
105
151
106
162
161
160
131
106
158
141
142
143
113
144
148
149
147
159
115
106
106
150
119
153
156
157
155 154 163
152
133
164
145
146
1
41a
132
117
140
134
124
127
126
125
129
130
129
130
128
118
120
136
135
139
137
137
138
138
1
69
1
00
166
101
103
102
165
Power Head
#9580AM X5 Arctic White/Gray
#9587AM X5 Blue/Yellow
