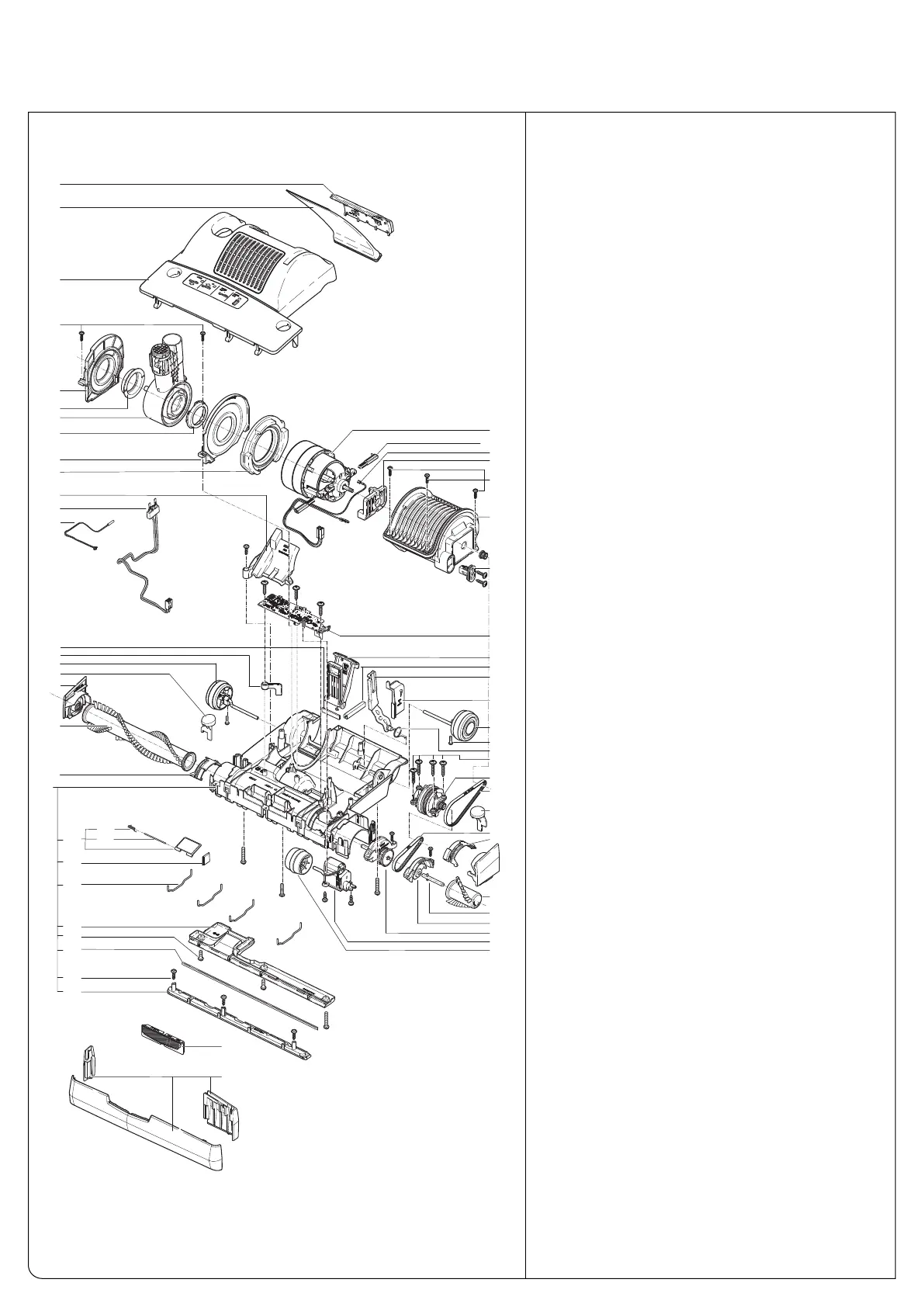

AUTOMATIC X8 SCHEMATIC AND PARTS LIST
#91566AM X8 Blue Machine
P
os. Part # Description
1
00 52122DBSE Power head cover, cpl., dark blue/silver
101 52038ER Exhaust filter
1
02 52029DB Exhaust filter cover, cpl., dark blue
1
03 52018ER Swivel neck support r. h.
104 5101 Swivel neck bearing r. h.
1
05 52023ER Swivel neck assembly X7 cpl.
1
06 52020ER Swivel neck support l. h.
107 5717 Swivel neck bearing l. h.
1
08 52013 Motor support seal
1
09 52194ER Vacuum motor 120V/12 amps
109a 05117S Carbon brush set
1
10 52040ER Cable set motor, 2-wire
1
11 5100 Rubber mounting
112 52059UL Motor housing
1
13 52011ER Belt adjust, complete
114 5462 Motor pulley
1
15 52115ER Cover for air channel
116 52199ER Cable set swivel neck, incl. connector support
117 52103 Reed switch swivel neck X-2017
1
18 5870ER PCB power supply/controller X-2017, 100-120V
119 52009OR Foot pedal, cpl., orange
120 52052 Felt strip
1
21 52054 Cable guide
122 52034DB Brush roller release knob r.h., dark blue
123 52112 Buffer motor housing
1
24 52021ER Support lever
125 5107-1 Support spring
126 52102GS Wheel, cpl. with axle, gray black
127 52032GS Bearing block r.h., gray black
1
28 5290AM Brush roller set X8, blue bristles
129 52033ER Brush roller release ring r.h. with spring
130 52196GS Chassis X8 cpl., gray black, incl. pos. 120+123
w
/o bumper
1
31 5112SW Motor pulley cover
1
32 5463 Belt 2MR-310-6
1
33 52224DB Brush roller release knob l.h., dark blue
134 52198 Sensor X8, cpl.
135 5110 Belt 219 3M HTDII-6
136 52248ER Brush roller release ring l.h., w/spring
137 52134GS Brush cover l.h.X8, gray black
138 5250ER Edge brush X8, blue bristles
139 5237 Shaft extension, cpl.
140 52131 Sealed bearing X8
141 52121 Bearing block l. h., cpl.
142 5060ER Servo motor with gear box
143 5174GS Pile adjustment wheel
144 5151OR Access door cpl., incl. pos. 145+146, orange
145 5304 Access door spring
146 5303 Access door axle
147 5155GS Rubbing plate
148 5402 Wire tie
149 52120GS Rear bottom plate, X8 cpl., incl. pos. 150+165
150 5400-2 Sealing strip
151 52118GS Front bottom plate X8 cpl.
152 52016ER LED assembly, cpl.
153 52203GS Bumper set X8 LED, 3 pcs., gray black
160 01029ER Screw C2, 9x13
161 01016ER AMTEC screw, 4.0x16 TORX 20
162 0176ER Screw AM 4x30 DIN 7985 TL
163 0104ER Screw C 3.9x25 DIN 7981
164 0102ER Screw F 3.9x13 DIN 7981
165 0197ER Screw M 4x12 Z1
152
153
163
4x
1
00
101
102
1
07
103
1
04
105
1
06
1
08
116
1
15
1
17
161
122
121
127
120
126
128
129
130
145
146
144
147
149
151
161
150
165
148
164 2x
109a
110
111
1
61
3x
113
112
164
2x
118
119
125
126
131
124
123
164
132
135
141
134
143
142
133
137
136
162
138
139
162
162
162
164
1
09
140
161 2x
161
2x
161
160
3
x
114
3x
2x
Power Head
#91566AM X8 Blue (dark blue/silver)

Sebo AUTOMATIC X7 Specifications

General

Product type	Upright vacuum
Dust capacity	5.3 L
Product color	Red
Dust container type	Dust bag
Removable handheld vacuum	No
Power source	AC
Maximum input power	890 W
Annual energy consumption	36.1 kWh
Animal care	Yes
Noise level	80 dB
Cleaning type	Dry
Cleaning surfaces	Carpet, Hard floor, Stair steps, Upholstery
Vacuum air filtering	-
Dirt separating method	Filtering
Working width (standard brush)	310 mm

Weight and Dimensions

Weight	7400 g
