Sebo Dart User Manual

DART
#9855AM DART Arctic White (White/Dark Blue)

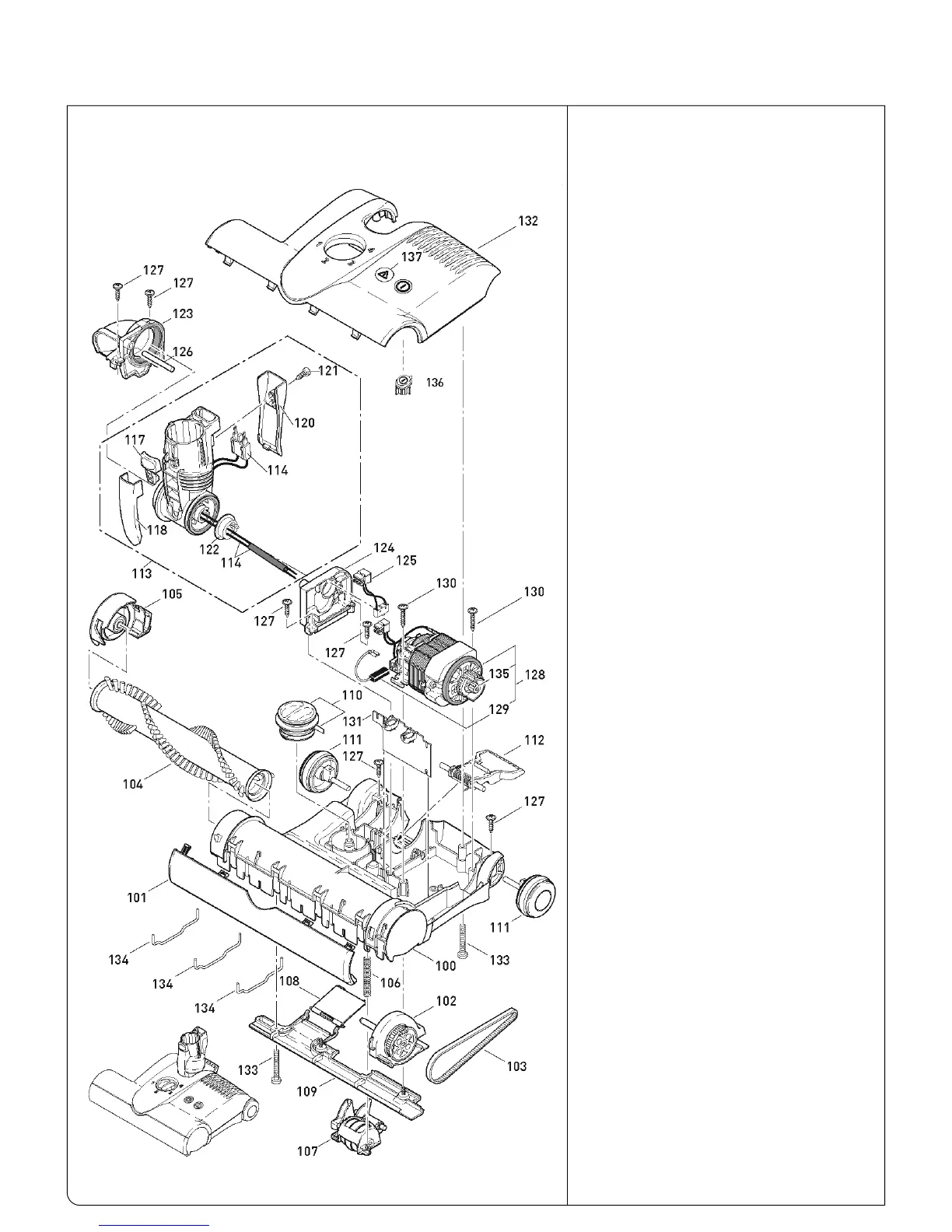

Power Head
9855AM Arctic White Machine (White/Dark Blue)
P
os. Part # Description
100 2324GS Chassis ET-1
101 2302GS Bumper, cpl.
102 2314GS Bearing block, left cpl.
103 2923 Belt 333 3M HTDII-6
104 5010AM Brush roller, cpl.
105 2313GS Bearing block, right cpl.
106 2929 Spring
107 2316GS Pile adjustment assembly, cpl.
108 2909VO Access door w/axle & spring
109 2304GS Rear bottom plate, cpl.
110 2931GS Pile adjustment button
111 2306GS Wheel, cpl.
112 2937OR Foot pedal w/axle & spring
113 2310GS Neck assembly, cpl.
114 0876ER Wiring neck
116 2950ER Segments, TS-neck
117 1737GS Release button w/leaf spring
118 2962GS Button cover
120 2961GS Socket cover, TS-neck
121 01027 Screw F 3.9x9.5
122 2954 Swivel neck bearing
123 2311 Swivel neck support, right
124 2312 Swivel neck support, left
125 0880 Wiring swivel neck switch
126 2928 Axle
127 01021 Screw F 3.9x13
128 2973ER Brush motor 120V, 175W w/ pulley
129 05141S Carbon brush set
130 01020 Screw F 3.9x21
131 2684ER Controller board ET1, 120V, 175W
132 20337WESE Power head cover DART1
133 0176ER Screw AM 4x30
134 5402 Wire tie
135 2319 Motor pulley
136 20955 Lens left w/o foot switch
137 2956 Lens right
16

Sebo Dart Specifications

General

Type	Upright
Power	700 W
Bagged/Bagless	Bagged
Filter Type	S-Class Filter
Warranty	5 years
Dust Capacity	3.5 L
Filtration	S-Class
