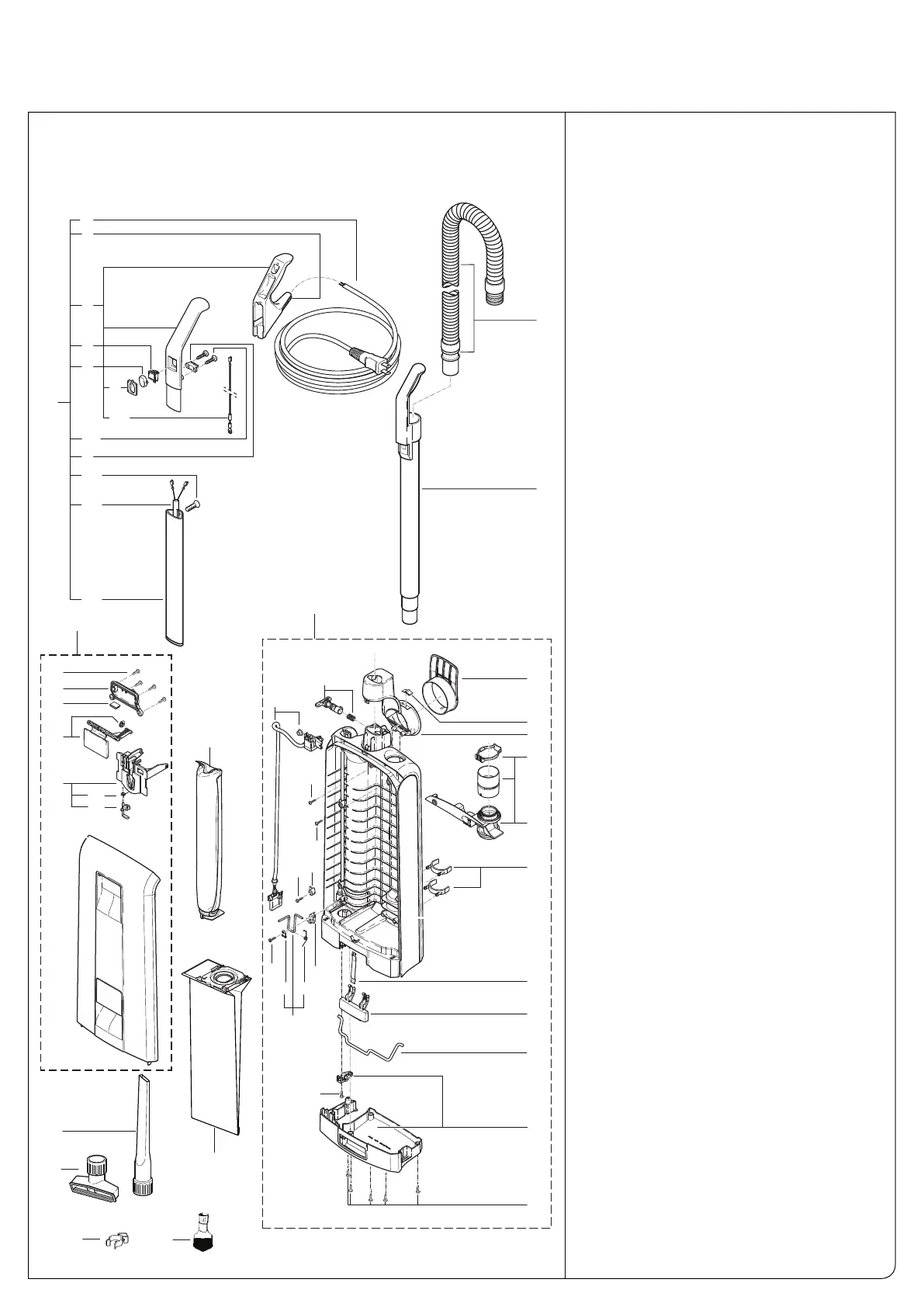

ESSENTIAL G4 | G5 SCHEMATIC AND PARTS LIST
13
62
30
29
23
63
64
13
50
46
20
21
17
22
24
25
26
27
41
37
35
38
62
19
18
32
62
15
16
1
10
7
2
3
5
6
60
8
61
11
4
51
45
62
28
34 33
36
40
39
31
62
53
54
Bag Housing and Handle
#90406AM G4 - Light Gray/Gray Black
#90407AM G5 - Light Gray/Gray Black
#90406AM G4 and #90407AM G5
Light Gray/Gray Black Machine
Pos. Part # Description
1 5624AM Handle with cable, cpl., light gray/
gray black
2 5296ES Handle grip, light gray
(incl. pos. 3, 7, 10)
3 5359HE Grommet
4 5450DG Power supply cord
5 05113 Switch
6 5160GS Switch cap, gray black
7 5161HG Switch cap holder, light gray
8 5162 Cable clamp
10 5253UL Antistatic-wire
11 5298ER Handle cable, 2-wire
13 5187 Handle tube
15 5040SB Hose, cpl, silver
16 5045HG Cleaning wand w/out hose, light gray
17 51108HG Cable hook, light gray
18 5146 Stop spring
19 51109HG Carrying handle, light gray
20 5424GS Retaining ring
21 51115HG Internal cover, cpl.
22 1823HG Attachment clip, light gray
23 51150HG Bag housing, cpl., light gray
24 5084 Spring for locking rod
25 51103GS Bag housing locking catch, gray black
26 5083 Locking rod
27 51102HG Bag housing bumper base, light gray
28 51110ER Lock catch w/spring, gray black
29 51118ER Internal cable
30 5164 Cable clamp
31 5266 Cable clamp
32 5208 Filter safety catch, cpl.,
incl pos. 33+34
33 5210 Return spring
34 1073 Clamp
35 51159GS Cover, gray black
36 5319 Bag holder spring
37 51153GS Cover release, gray black
38 1847 Bag holder cpl., incl. pos. 39+40
39 5091 Safety catch spring
40 1817 Safety catch
41 51151HG Front cover, cpl., light gray
45 5036AM Pre-motor microfilter
46 5093AM Ultra filter bag
50 1092JE Crevice nozzle, light gray
51 1491JE Upholstery nozzle, light gray
53 5460GS Mounting clip w/ screw, gray black
54 1387GS Dusting brush, gray black
60 0103ER Screw C3.9x15
61 0129ER Screw M4x12
62 01036ER AMTEC screw 4x13 Tx20
63 01036SW AMTEC screw 4x13 Tx20, black
64 01047ER AMTEC screw 3x12 Tx10, black
