Sebo Essential G4 - Power Head

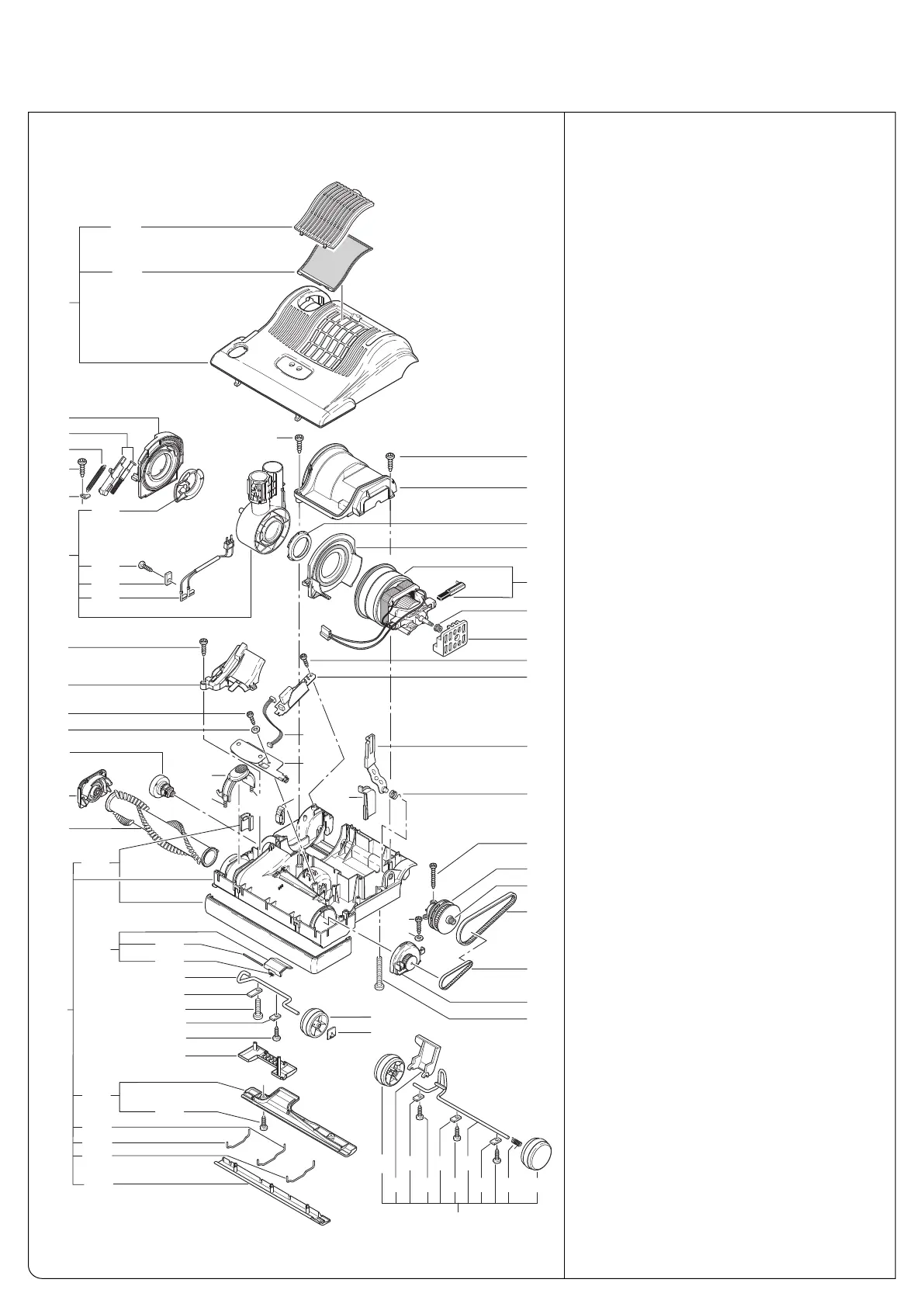

ESSENTIAL G4 SCHEMATIC AND PARTS LIST
14
100
102
101
103
170
124
115
116
116
171
174
153
134
154
114
123
139
170
137
138
136
110
170
145
104
105
170
146
147
112
148
173
113
170
149
111
151
152
160
161
172
162
176
121
117
130
125
157
158
150
173
175
135
126
128
129
131
178
122
170
133
141
177
144
143
140
127
120119 170 170 122
122121 122 118
144
109
Power Head
#90406AM G4 - Light Gray/Gray Black
#90406AM G4 Light Gray/Gray Black Machine
Pos. Part # Description
100 2831AM2 Power head cover, cpl., gray black
101 2846 Exhaust filter
102 2820GS Exhaust filter cover, gray black
103 20823UL Swivel neck assembly, light gray/
orange
104 2883UL Male contact holder
105 2494 Cable clamp
109 2825 Swivel neck bearing r.h.
110 2824 Swivel neck support r.h.
111 5479 Swivel neck support l.h.
112 5717 Swivel neck bearing l.h.
113 2890ER PCB Power supply
114 0864 Internal cable
115 5713GS Brush roller release, gray black
116 5103 Spring
117 5051HG Axle assembly, light gray/orange
118 5053 Axle
119 5059OR Foot pedal, orange
120 2010 Wheel return spring
121 5819HG Wheel, light gray
122 2014ER Axle clamp
123 5010AM Brush roller
124 5031HG Bearing Block, r.h.,
light gray/gray black
125 2869HG Rubbing plate, light gray
126 2868OR Access door, incl. pos. 127+128
127 5303 Access door axle
128 5304 Access door spring
129 2861 Pile adjustment axle
130 5174HG Pile adjustment wheel, light gray
131 2849 Axle clamp
133 2860HG Cover, light gray
134 2833 Thrust member
135 2862HG Pile adjustment knob, light gray
136 2834 Thrust member
137 2856 Clamp
138 2867 Spring
139 2821HG Chassis G4, cpl., light gray
140 5411HG Front bottom plate, cpl., light gray
141 2829HG Rear bottom plate, cpl., light gray
143 5401 Wire tie, bottom plate, outer
144 5402 Wire tie, bottom plate, center
145 5005HG Bumper set, light gray
146 5468 Motor 1300W/120V
05117S Carbon brush set
05135 Thermo switch
147 5462 Motor pulley 2MR
148 5100 Rubber mounting
149 2826GS Motor cover, gray black
150 2839SW Cover for air channel
151 50129 Support lever
152 5107-1 Support spring
153 5112SW Motor pulley cover
154 20881ER Computer controller
157 5464 Sensor
158 5117/1 Sensor pulley
160 5463 Belt 2MR-310-6
161 5110 Belt 219 3M HTD-II-6
162 5766HG Bearing block l.h., cpl.
170 0102ER Screw M3.9x13 DIN 7981
171 0103ER Screw C3.9x16 DIN 7981
172 0104ER Screw M3.9x25 MM
173 0107ER Screw 2.9x13
174 0140ER Washer 4.3 DIN 125
175 0143ER Washer 3.2 DIN 125
176 0176ER Screw M4x30
177 0197ER Screw M4x12 w/washer
178 01010ER Screw M4x16 DIN 7985
