SEC Electronics PKN10 V0.3 page 10
6. input4: Input I4 function definition (not active in PKN06 compatible
mode)
0 - Not active.
1 – Landing door control.
2 – Fire fighter key.
7. slave_mode: Slave mode has to be active in case of more then one
PKN10 device in the same floor.
0 – Not active, setting for the first or the only PKN09 device in the
same floor.
1 – Acts as a slave, setting for the second or the third PKN10
device in the same floor.
8. pkn06_compatible
0 – Serial line protocol is adapted to PKN10 (additional inputs,
master/slave) and works only in combination with PKN10 devices
and E-type CPU-B V0.57 or higher.
1 – PKN10 acts as PKN06 and can be used together with PKN06
devices, Node devices or older E-type CPU-B firmware.
9. error_display: Displayed when lift doesn’t operate due to an error or
it operates in a special mode (priority, fire, fireman, maintenance or
evacuation drive).

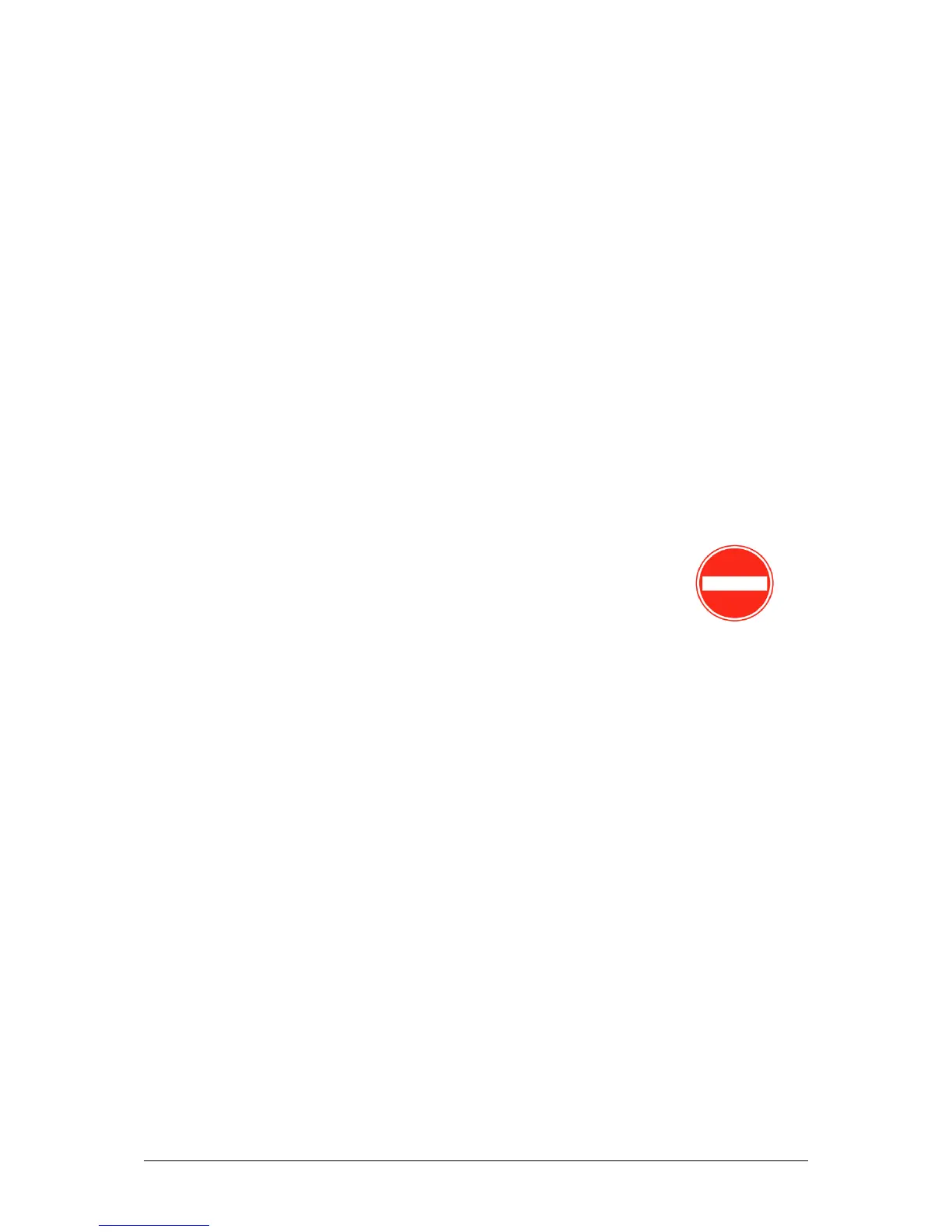

0 – “No entry” sign, see picture.
1 - “X” sign; the same as for serial communication
error.
2 - »Out of service« display; default is »OS«, see
the next parameter.
10. os_text: Displayed when the lift doesn’t operate normally and
parameter error_display is set to “2”. Default is »OS«, can be one or
two characters long. Parameter can’t be set in the local
configuration.
11. os_mode: Display mode when lift doesn’t operate normally:
0 – Floor number and error message, defined by parameter
error_display, are displayed alternatively.
1 – Floor number is shown all the time, there is no message that
lift is not in function.
2 – An error message, defined with parameter error_display, is
displayed all the time. There is no information about current car
position.
12. background_color (0..7 or 0x0000..0xFFFF; see explanation bellow).
13. character_color (0..7 or 0x0000..0xFFFF; see explanation bellow).
14. arrow_color (0..7 or 0x0000..0xFFFF; see explanation bellow).
15. screen_saver:
0 - Off.
1 – Static bitmap image, the first found on the SD card.
2 – Bitmap images are changed in intervals, preset by parameter
slide_show_delay.
