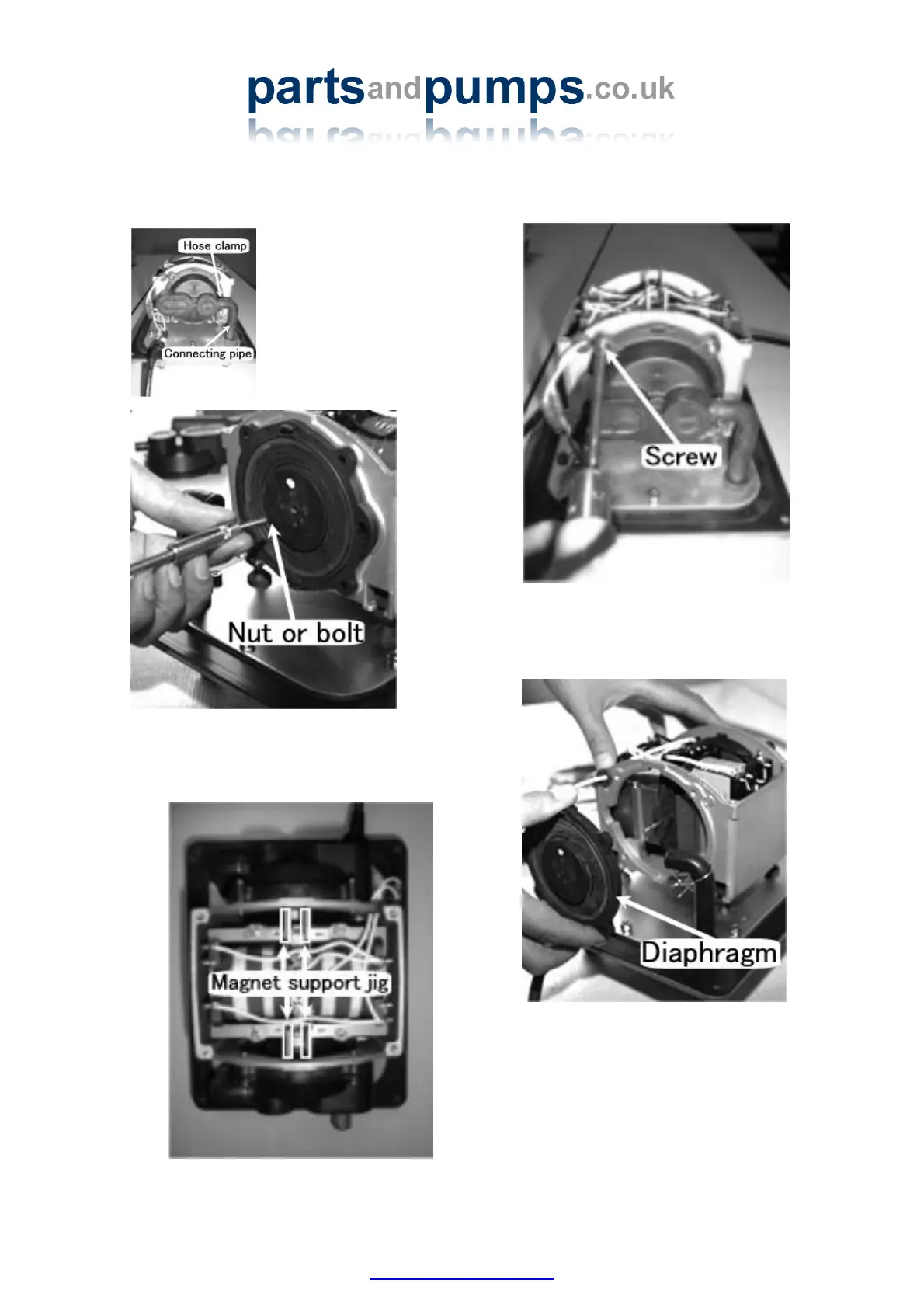

g) Undo the 4 screws of the valve box.
h) Slide down the hose
clamp, pull off the
connecting pipe and
remove the valve
box.
i) Undo the nut or bolt and remove the
diaphragm (Nut: SLL series & EL-60, 80-15
& 120W - Bolt: EL-80-17, 100, 150 & 200).
j) Set the new diaphragm and fix it by
the nut or bolt (torque, see table at
appendix).
k) Insert the magnet supporter jig in
the 4 corners between the
magnet and the core.
Note: Make sure that the magnet is in the
centre of the solenoids.
