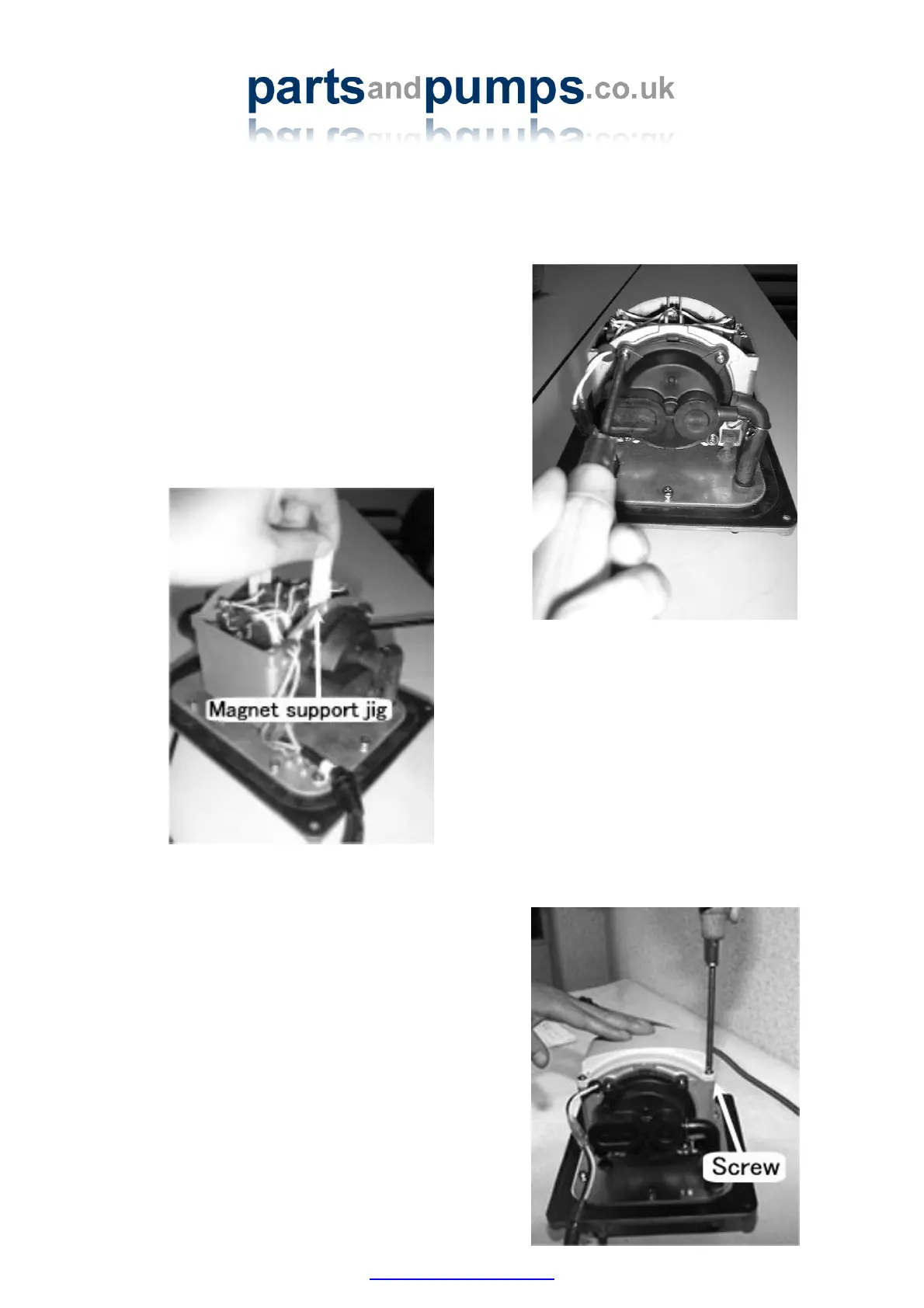

l) Install the new valve box and secure
into position using the 4 corner
screws.
m) Replace opposite diaphragm following
the above procedure.
n) Pull out the magnet support jig.
o) Check the magnet is in a central
position.
Note: The tolerance of the centring of the
magnet is within +/- 0.5 mm (see
dimension “d” of sketch in appendix).
p) Push on the connecting pipe and refit
the hose clamp.
q) Reset the auto stopper (If necessary)
r) Connect power cord to confirm proper
operation.
Danger: Do not touch live parts. Touching live
parts will result in electric shock!
s) Fasten the holder cover with the
screws.
