MR-2900 Installation Manual
45
8.2 Silent Knight 5104

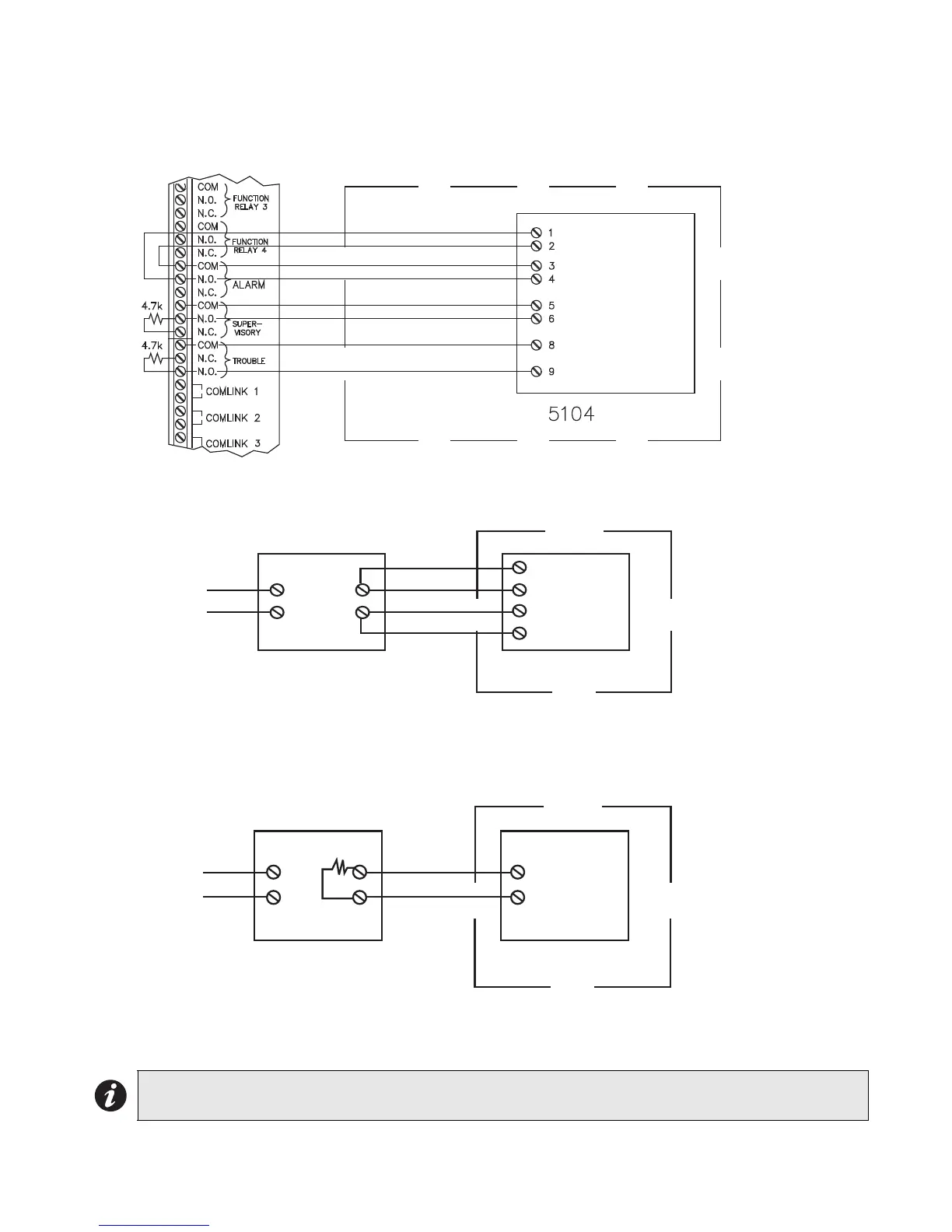

The wiring between the MR-2900 and the Silent Knight 5104 Dialer is as shown in the following diagram:
An addressable module may be substituted for the common alarm relay as follows:
An addressable module may be substituted for the common supervisory relay as follows:
Trouble contacts must be connected to the panel.
Note: The Silent Knight 5104 is separately listed equipment. Refer to the installation and wiring
instructions provided with the unit.
Figure 32: MR-2900 and Silent Knight 5104 Dialer Wiring
5104
1
4
2
3
4
to FACP
6
MRI-500C
Figure 33: MR-2900 and Silent Knight 5104 Dialer Wiring with addressable module substituted for
common alarm relay
5104
5
6
4
4.7k
to FACP
6
MRI-500C
Figure 34: MR-2900 and Silent Knight 5104 Dialer Wiring with addressable module substituted for
common supervisory relay
