571 Operation/Maintenance Instructions Page 5 of 19

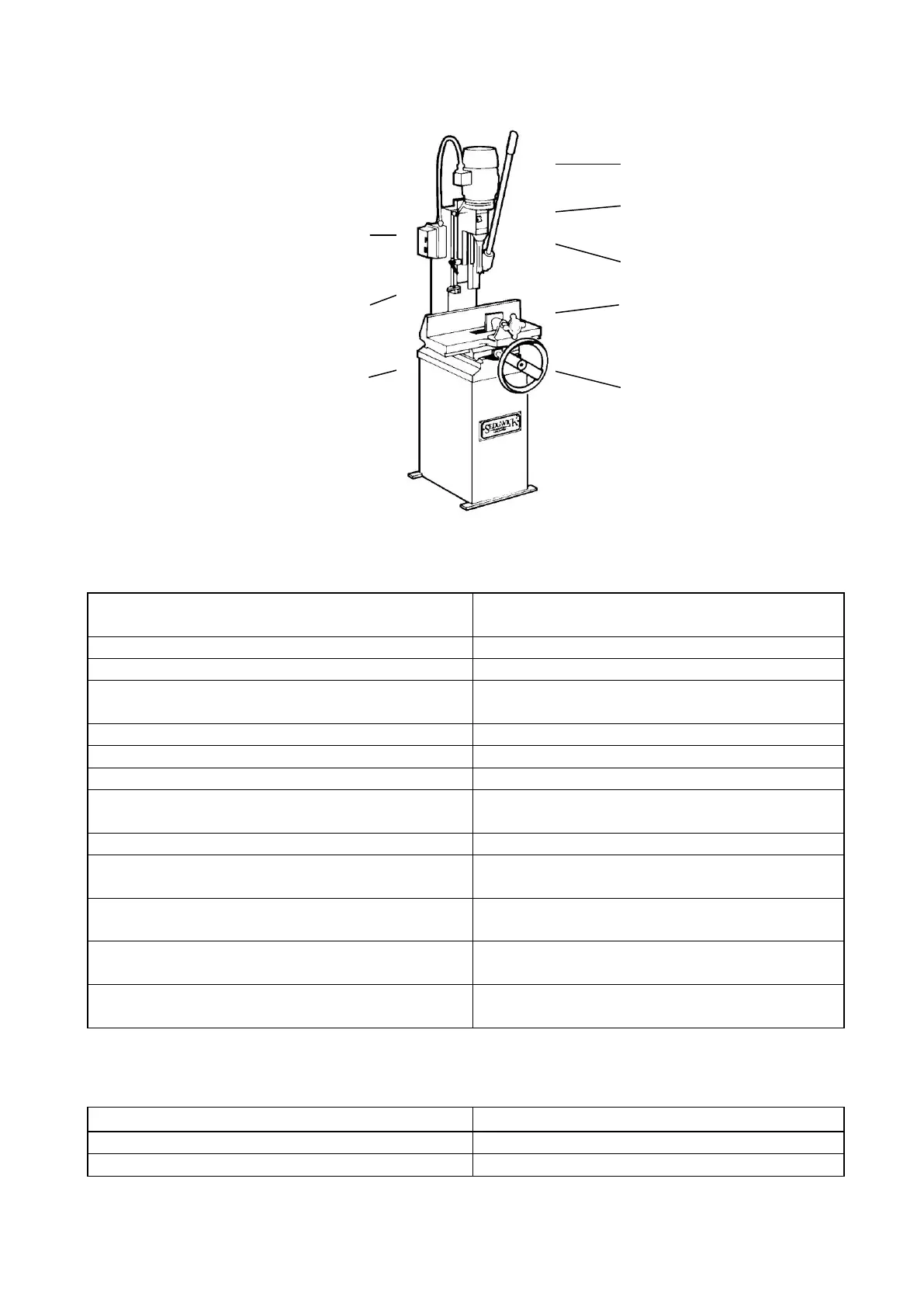

Illustration
1.2 Machine Specification
MAXIMUM CHISEL SIZE - IN HARDWOOD
IN SOFTWOOD
19mm
25mm
TIMBER CAPACITY
255x200mm
STROKE OF CHISEL HEAD
120mm
TABLE MOVEMENT -LONGITUDINAL
-LATERAL
430mm
80mm
DEPTH STOP
STD
HAUNCH STOP
STD
LENGTH STOPS
STD
VOLTAGE / FREQUENCY
3 PHASE + EARTH; 400/230 V – 50/60 Hz
1 PHASE + N + EARTH ; 230V / 50/60 Hz
MOTOR RATING
1.1Kw
MOTOR FULL LOAD CURRENT IN AMPS
3 PH 2.5A
1 PH 6.6A
STARTING CURRENT IN AMPS
3 PH 15.0A
1 PH 39.6A
REQUIRED FUSE SIZE IN AMPS
3 PH 10A/ph
1 PH 20A
REQUIRED CABLE SIZE
3 PH 2.5mm2
1 PH 2.5mm2
1.3 Shipping Details
DIMENSIONS - Length x Width x Height
735x630x1520mm
NETT WEIGHT
160 Kg
Total Weight, including Packing Crate
221 Kg
OPERATING LEVER
CHUCK GUARD
CHISEL BRACKET
ADJUSTMENT
TIMBER CLAMP
LONGITUDINAL AND LATERAL
ADJUSTMENT OF TABLE VIA
SINGLE HANDWHEEL
STOP/START BUTTONS
DEPTH AND HAUNCH STOPS
LENGTHS STOPS
