Product Introduction

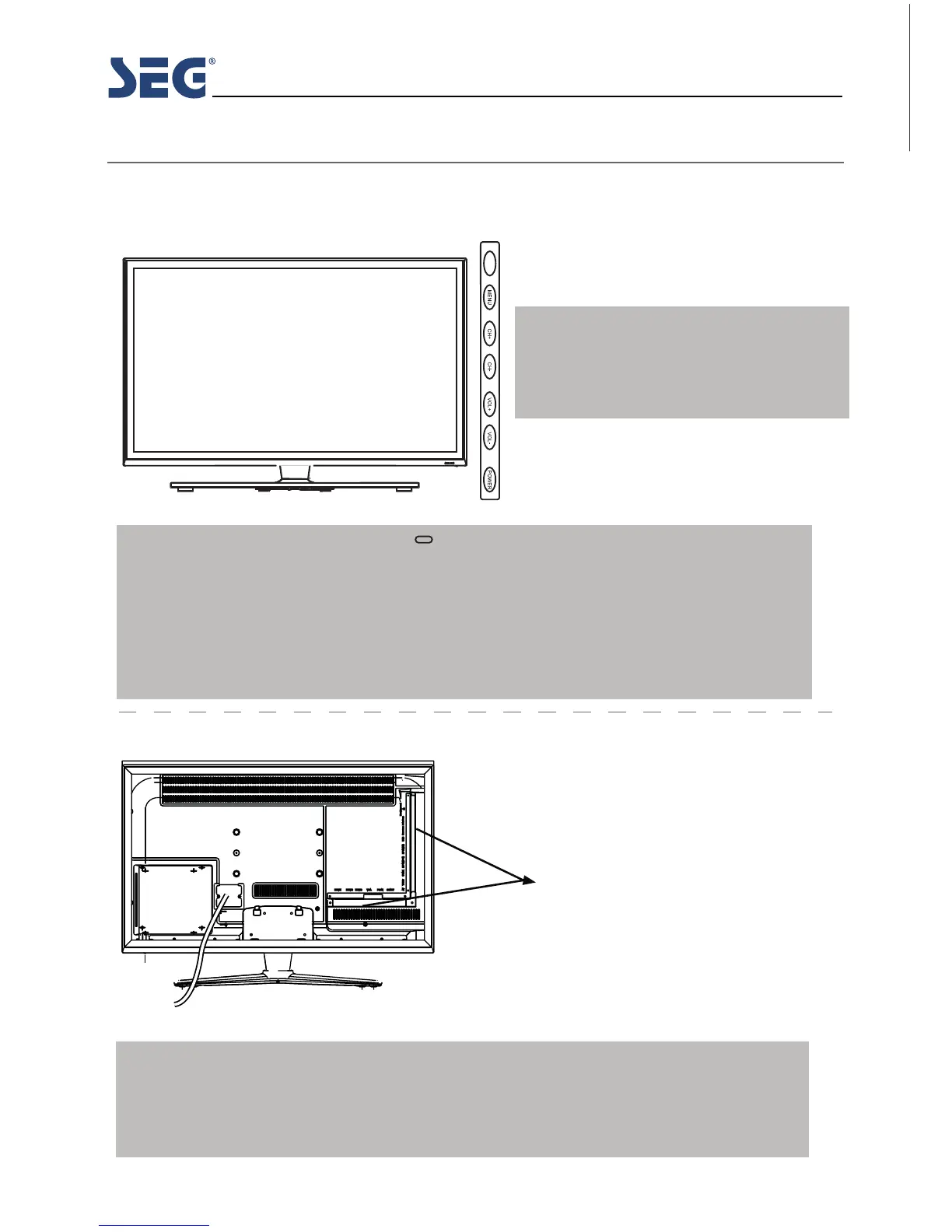

Front View
Rear View
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
SOURCE: Display the input source menu.
POWER: Turn on/standby the TV set.
Remote Control window(keep clear)
LED indicator
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press POWER to turn on and off.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
Wall Mounting
The TV is provided with mounting holes for a VESA approved wallmounting bracket 200mmx100mm
(NOT SUPPLIED). Remove the Posi screws holding the base to the base bracket and lift the base away
basemounting bracket).Mount the VESA bracket using 4xM5x12mm ISO metric threaded screws (not
(do not remove the supplied). Do not use screws longer than 12 mm, it will occur damage to the internal
parts. Fit the wall bracket securely following themanufacturers instructions.
Connections
See next page
5
SOURCE
AC POWER IN
80cm (31.5") LED BLU-TV Sydney
SWITCH
To Next Page
