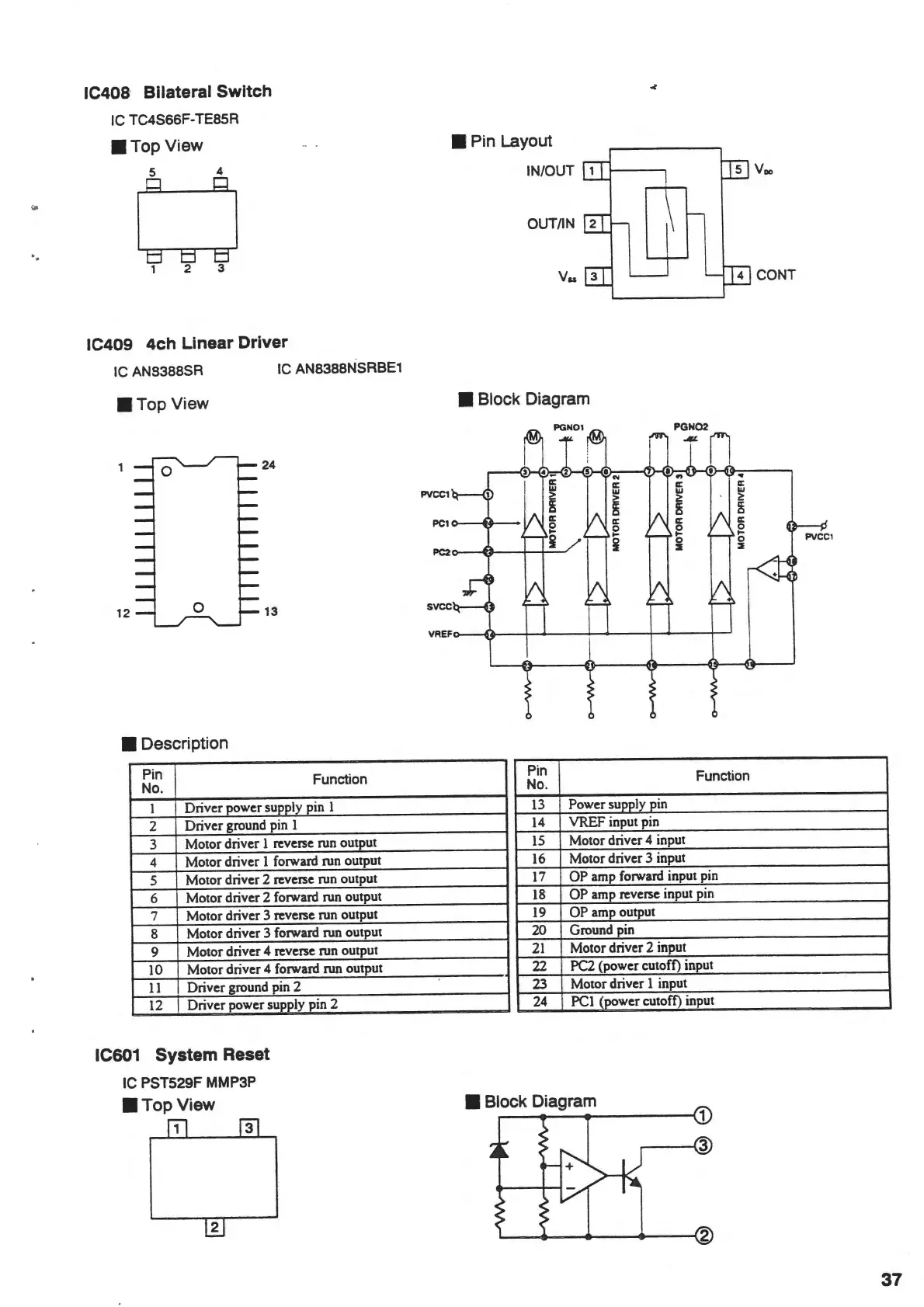

IC408 Bilateral Switch
IC TC4S66F-TE85R
•TopView
d
1 2 3
IC409 4ch Linear Driver
IC ANS388SR
IC AN8388NSRBE1
•TopView
24
12
13
• Description
Pin
Function
No.
I
Driver power supply pin 1
2
Driver ground pin 1
3
Motor driver 1 reverse
nm output
4 Motor driver 1 forward run output
5
Motor driver 2 reverse run output
6 Motor driver 2 forward run output
7
Motor driver 3 reverse run output
8 Motor driver 3 forward run output
9 Motor driver 4 reverse run output
10
Motor driver 4 forward nm output
11
Driver ground pin 2
12
Driver power supply pin 2
IC601 System Reset
IC PST529F MMP3P
•TopView
1 3
•Pin Layout
IN/OUT
• Block Diagram
5 Voo
Pin
Function
No.
13 Power supply pin
14 VREF input pin
15 Motor driver 4 input
16 Motor driver 3 input
17
OP amp forward input pin
18
OP amp reverse input pin
19
OP amp output
20 Ground pin
21 Motor driver 2 input
22 PC2 (power cutoff) input
23
Motor driver l input
24
Pel (power cutoff) input
• Block Diagram
37
