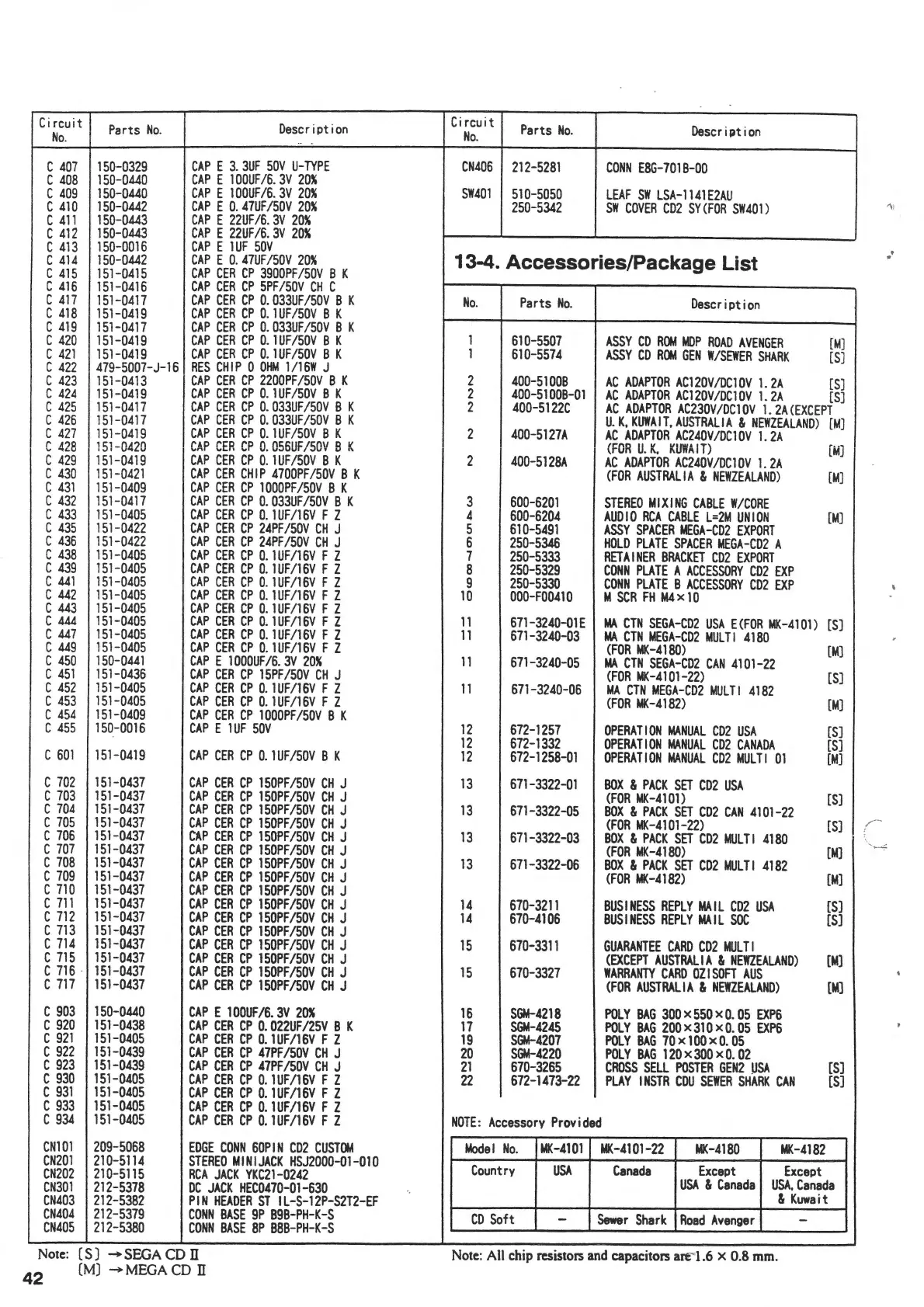

Circuit
Parts No.
Description
No.
c 407 150-0329
CAP E 3. 3UF SOY U-TYPE
c 408
150-0440
CAPE 100UF/6.3V 20%
c 409 150-0440
CAPE 100UF/6.3V 20%
c 410 150-0442
CAPE 0.47UF/SOV 20%
c 411
150-0443
CAPE 22UF/6.3V 20%
c 412
150-0443
CAPE 22UF/6.3V 20%
c 413
150-0016
CAP E 1UF 50V
c 414
150-0442
CAPE 0.47UF/50V 20%
c 415 151-0415
CAP CER CP 3900PF/50V B K
c 416
151-0416
CAP CER CP 5PF/50V CH C
c 417
151-0417
CAP CER CP 0.033UF/50V BK
c 418
151-0419
CAP CER CP 0. 1UF/50V B K
c 419 151-0417
CAP CER CP 0.033UF/SOV BK
c 420 151-0419
CAP CER CP 0. 1UF/50V B K
c 421
151-0419
CAP CER CP 0. 1UF/50V B K
c 422 479-5007-J-16
RES CHIP 0 OHM 1/16W J
c 423 151-0413
CAP CER CP 2200PF/50V B K
c 424 151-0419
CAP CER CP 0. 1UF/50V B K
c 425 151-0417
CAP CER CP 0.033UF/50V BK
c 426 151-0417
CAP CER CP 0.033UF/SOV BK
c 427 151-0419
CAP CER CP 0. 1UF/50V B K
c 428 151-0420
CAP CER CP 0.056UF/SOV BK
c 429 151-0419
CAP CER CP 0. 1UF/50V B K
c 430
151-0421
CAP CER CHIP 4700PF/50V B K
c 431
151-0409
CAP CER CP 1000PF/50V B K
c 432
151-0417 CAP CER CP 0.033UF/50V BK
c 433 151-0405
CAP CER CP 0. 1UF/16V F Z
c 435 151-0422
CAP CER CP 24PF/50V CH J
c 436 151-0422 CAP CER CP 24PF/50V CH J
c 438
151-0405
CAP CER CP 0. 1UF/16V F Z
c 439
151-0405
CAP CER CP 0. 1UF/16V F Z
c 441
151-0405
CAP CER CP 0. 1UF/16V F Z
c 442 151-0405
CAP CER CP 0. 1UF/16V F Z
c 443
151-0405 CAP CER CP 0. 1UF/16V F Z
c 444 151-0405
CAP CER CP 0. 1UF/16V F Z
c 447 151-0405
CAP CER CP 0. 1UF/16V F Z
c 449
151-0405 CAP CER CP 0. 1UF/16V F Z
c 450
150-0441 CAPE 1000UF/6.3V 20%
c 45 1 151-0436 CAP CER CP 15PF/50V CH J
c 452
151-0405 CAP CER CP 0. 1UF/16V F Z
c 453
151-0405 CAP CER CP 0. 1UF/16V F Z
c 454
151-0409 CAP CER CP 1000PF/SOV B K
c 455 150-0016 CAP E 1UF SOY
c 601 151-0419 CAP CER CP 0. 1UF/50V B K
c 702 151-0437
CAP CER CP 150PF/50V CH J
c 703 151-0437 CAP CER CP 150PF/50V CH J
c 704 151-0437 CAP CER CP 150PF/50V CH J
c 705
151-0437
CAP CER CP 150PF/50V CH J
c 706 151-0437 CAP CER CP 150PF/50V CH J
c 707 151-0437
CAP CER CP 150PF/50V CH J
c 708 151-0437
CAP CER CP 150PF/50V CH J
c 709 151-0437
CAP CER CP 150PF/50V CH J
c 710 151-0437
CAP CER CP 150PF/50V CH J
c 711 151-0437
CAP CER CP 150PF/50V CH J
c 712 151-0437
CAP CER CP 150PF/50V CH J
c 713 151-0437
CAP CER CP 150PF/50V CH J
c 714 151-0437
CAP CER CP 150PF/50V CH J
c 715 151-0437
CAP CER CP 150PF/50V CH J
c 716 .
151-0437
CAP CER CP 150PF/50V CH J
c 717 151-0437
CAP CER CP 150PF/50V CH J
c 903
150-0440
CAPE 100UF/6.3V 20X
c 920 151-0438
CAP CER CP 0.022UF/25V BK
c 921 151-0405
CAP CER CP 0. 1UF/16V F Z
c 922
151-0439
CAP CER CP 47PF/50V CH J
c 923
151-0439
CAP CER CP 47PF/50V CH J
c 930 151-0405 CAP CER CP 0. 1UF/16V F Z
c 931 151-0405
CAP CER CP 0. 1UF/16V F Z
c 933
151-0405
CAP CER CP 0. 1UF/16V F Z
c 934
151-0405 CAP CER CP 0. 1UF/16V F Z
CN101
209-5068 EDGE CONN GOPIN CD2 CUSTOM
CN201 210-5114
STEREO MINIJACK HSJ2000-01-010
CN202 210-5115
RCA JACK YKC21-0242
CN301 212-5378 DC JACK HEC0470-01-630
CN403 212-5382 PIN HEADER ST IL-S-12P-S2T2-EF
CN404
212-5379 CONN BASE 9P B9B-PH-K-S
CN405 212-5380 CONN BASE SP 888-PH-K-S
Note: [ S) - SEGA CD II
[M) - MEGA CD II
42
Circuit
Parts
No.
Description
No.
CN406
212-5281
CONN E8G- 701 B-00
SW401
510-5050 LEAF SW LSA-1141E2AU
250-5342 SW COVER CD2 SYCFOR SW401)
13-4. Accessories/Package List
.·
No .
Parts
No.
Description
1
610-5507
ASSY CD ROM MOP ROAD AVENGER
(MJ
1
610-5574
ASSY CD ROM GEN W/SEWER SHARK
(SJ
2 400-5100B
AC ADAPTOR AC120V/DC10V 1.2A
(SJ
2
400-5100B-01
AC ADAPTOR AC120V/DC10V 1.2A
(SJ
2
400-5122C
AC ADAPTOR AC230V/DC10V 1.2A(EXCEPT
2 400-5127A
U.K,KUWAIT.AUSTRALIA & NEWZEALAND) (MJ
AC ADAPTOR AC240V/DC10V 1.2A
(FOR U.K, KUWAIT)
[M]
2
400-5128A
AC ADAPTOR AC240V/DC10V 1.2A
(FOR AUSTRALIA & NEWZEALAND)
[M]
3
600-6201 STEREO MIXING CABLE W/CORE
4
600-6204
AUDIO RCA CABLE L=2M UNION
[M]
5 610-5491 ASSY SPACER MEGA-CD2 EXPORT
6 250-5346 HOLD PLATE SPACER MEGA-CD2 A
7
250-5333 RETAINER BRACKET CD2 EXPORT
8 250-5329 CONN PLATE A ACCESSORY CD2 EXP
9 250-5330 CONN PLATE B ACCESSORY CD2 EXP
10
000-FD0410
M SCR FH M4 x 10
11
671-3240-0lE
MA CTN SEGA-CD2 USA E(FOR MK-4101)
[SJ
11
671-3240-03 MA CTN MEGA-CD2 MULTI 4180
<FOR MK-4180)
[MJ
11
671-3240-05
MA CTN SEGA-CD2 CAN 4101-22
(FOR MK-4101-22)
[SJ
11
671-3240-06 MA CTN MEGA-CD2 MULTI 4182
(FOR MK-4182)
[M]
12
672-1257
OPERATION MANUAL CD2 USA
[SJ
12
672-1332 OPERATION MANUAL CD2 CANADA
[SJ
12
672-1258-01 OPERATION MANUAL CD2 MULTI 01
[M]
13
671-3322-01
BOX & PACK SET CD2 USA
(FOR MK-4101)
[SJ
13 671-3322-05
BOX & PACK SET CD2 CAN 4101-22
(FOR MK-4101-22)
[SJ
13
671-3322-03 BOX & PACK SET CD2 MULTI 4180
(FOR MK-4180)
[MJ
13
671-3322-06 BOX & PACK SET C02 MULTI 4182
<FOR MK-4182)
[M)
14
670-3211 BUSINESS REPLY MAIL C02 USA
[SJ
14
670-4106 BUSINESS REPLY MAIL SOC
[SJ
15 670-3311 GUARANTEE CARD CD2 MULTI
(EXCEPT AUSTRALIA & NEWZEALAND)
[MJ
15 670-3327 WARRANTY CARD OZISOFT AUS
(FOR AUSTRALIA & NEWZEALAND)
[M)
16
SGM-4218 POLY BAG 300 x 550 x 0. 05 EXP6
17 SGM-4245 POLY BAG 200x310x0.05 EXP6
19 SGM-4207 POLY BAG 70 x lOOx 0. 05
20 SGM-4220
POLY BAG 120x3QOx0.02
21 670-3265 CROSS SELL POSTER GEN2 USA [SJ
22
672-1473-22 PLAY INSTR COU SEWER SHARK CAN
[SJ
NOTE: Accessory Provided
Model No.
MK-4101
MK-4101-22
MK-4180 MK-4182
Country
USA
Canada
Except Except
USA & Canada
USA.Canada
& Kuwait
CD Soft
-
Sewer Shark Road Avenger
-
Note: All chip rcsistois and capacitois a!"C'l .6 x 0.8 mm.
