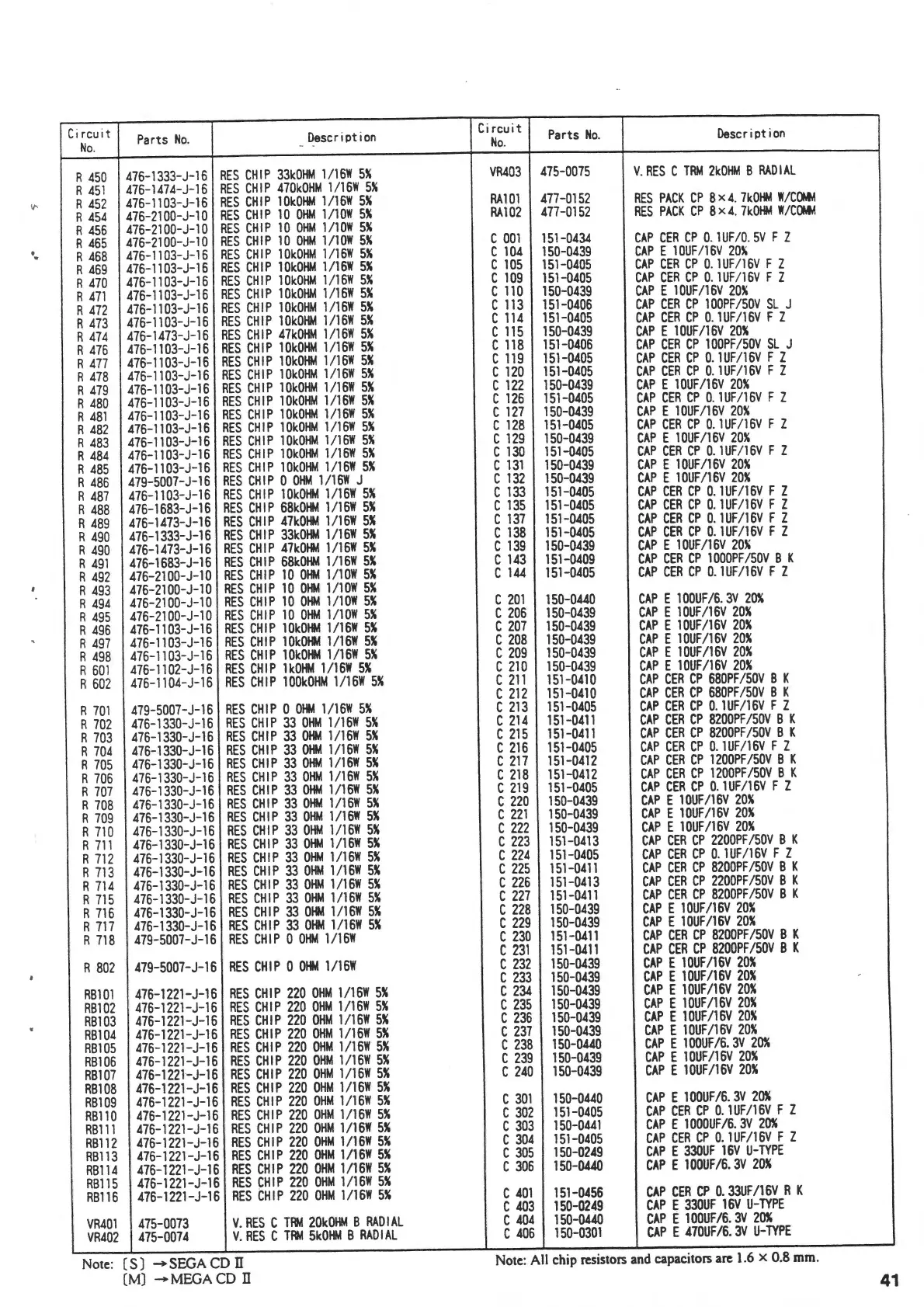

Sega CD II User Manual

·.
Circuit
Parts
No.
Description
No.
R 450
476-1333-J-16
RES CHIP 33k0HM 1/16W 5%
R 451 476-1474-J-16
RES CHIP 470k0HM 1/16W 5%
R 452 476-1103-J-16
RES CHIP 10kOHM 1/16W 5%
R 454 476-2100-J-10
RES CHIP 10 OHM 1/10W 5%
R 456 476-2100-J-10
RES CHIP 10 OHM 1/10W 5%
R 465 476-2100-J-10
RES CHIP 10 OHM l/lOW 5%
R 468
476-1103-J-16
RES CHIP lOkOHM 1/16W 5%
R 469
476-1103-J-16
RES CHIP 10k0HM 1/16W 5%
R 470
476-1103-J-16 RES CHIP lOkOHM 1/16W 5%
R 471
476-1103-J-16 RES CHIP lOkOHM 1/16W 5%
R 472
476-1103-J-16 RES CHIP lOkOHM 1/16W 5%
R 473
476-1103-J-16 RES CHIP 10kOHM 1/16W 5%
R 474 476-1473-J-16
RES CHIP 47k0HM 1/16W 5%
R 476 476-1103-J-16
RES CHIP lOkOHM 1/16W 5%
R 477
476-1103-J-16 RES CHIP 10kOHM 1/16W 5%
R 478 476-1103-J-16
RES CHIP lOkOHM 1/16W 5%
R 479 476-1103-J-16
RES CHIP lOkOHM 1/16W 5%
R 480 476-1103-J-16
RES CHIP 10k0HM 1/16W 5%
R 481 476-1103-J-16
RES CHIP 10kOHM 1/16W 5%
R 482 476-1103-J-16
RES CHIP lOkOHM 1/16W 5%
R 483 476-1103-J-16
RES CHIP 10kOHM 1/16W 5%
R 484
476-1103-J-16 RES CHIP 10k0HM 1/16W 5%
R 485 476-1103-J-16 RES CHIP 10kOHM 1/16W 5%
R 486 479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
487 476-1103-J-16 RES CHIP lOkOHM 1/16W 5%
R 488 476-1683-J-16 RES CHIP 68k0HM 1/16W 5%
R 489 4 76-1473- J-16 RES CHIP 47k0HM 1/16W 5%
R 490 476-1333-J-16 RES CHIP 33k0HM 1/16W 5%
R 490 476-1473-J-16 RES CHIP 47k0HM 1/16W 5%
R 491 476-1683-J-16 RES CHIP 68kOHM 1/16W 5%
R 492 476-2100-J-10 RES CHIP 10 OHM 1/10W 5%
R 493 476-2100-J-10 RES CHIP 10 OHM 1/10W 5%
R 494 476-2100-J-10 RES CHIP 10 OHM 1/10W 5%
R 495 476-2100-J-10 RES CHIP 10 OHM 1/lOW 5%
R 496 476-1103-J-16 RES CHIP 10kOHM 1/16W 5%
R 497
476-1103-J-16 RES CHIP 10kOHM 1/16W 5%
R 498
476-1103-J-16
RES CHIP lOkOHM 1/16W 5%
R 601 476-1102-J-16
RES CHIP lkOHM 1/16W 5%
R 602 476-1104-J-16
RES CHIP 100k0HM 1/16W 5%
R 701
479-5007-J-16
RES CHIP 0 OHM 1/16W 5%
R 702 476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 703
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 704
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 705 476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 706 476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 707
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 708 476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 709 476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 710
476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 711
476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 712
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 713
476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 714
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 715
476-1330-J-16
RES CHIP 33 OHM 1/16W 5%
R 716
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 717
476-1330-J-16 RES CHIP 33 OHM 1/16W 5%
R 718
479-5007-J-16 RES CHIP 0 OHM 1/16W
R 802
479-5007-J-16
RES CHIP 0 OHM 1/16W
RBlOl
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB102
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB103
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB104
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB105
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB106
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB107
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB108
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
R8109
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB110
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB111
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB112
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB113
476-1221-J-16 RES CHIP 220 OHM 1/16W 5%
RB114
476-1221-J-16
RES CHIP 220 OHM 1/16W 5%
RB115
476-1221-J-16 RES CHIP 220 OHM 1/16W 5%
RB116
476-1221-J-16 RES CHIP 220 OHM 1/16W 5%
VR401
475-0073
V. RES C TRM 20k0HM B RAO I AL
VR402
475-0074 V. RES C TAM 5k0HM B RADIAL
Note: (S) -SEGA CD Il
(M) -+MEGA CD Il
Circuit
Parts
No.
Description
No.
VR403
475-0075
V.RES C TRM 2kOHM B RADIAL
RA101
477-0152
RES PACK CP 8 x 4. 7k0HM W/CCM.I
RA102
477-0152
RES PACK CP 8 x 4. 7kOHM W/CCM.I
c 001
151-0434
CAP CER CP 0. 1UF/0 . 5V F Z
c 104
150-0439
CAP E 10UF/16V 20~
c 105
151-0405
CAP CER CP 0. 1UF/16V F Z
c 109
151-0405
CAP CER CP 0. 1UF/16V F Z
c 110
150-0439
CAP E 10UF/16V 20%
c 113
151-0406
CAP CEA CP 100PF/50V SL J
c 114
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 115 150-0439
CAP E 10UF/16V 20%
c 118
151-0406
CAP CEA CP 100PF/50V SL J
c 119 151-0405
CAP CEA CP 0. 1UF/16V F Z
c 120 151-0405
CAP CEA CP 0. 1UF/16V F Z
c 122
150-0439
CAP E 10UF/16V 20%
c 126
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 127
150-0439
CAP E 10UF/16V 20%
c 128
151-0405
CAP CER CP 0. 1UF / 16V F Z
c 129
150-0439
CAP E 10UF/16V 20%
c 130
151-0405
CAP CER CP 0. 1UF/16V F Z
c 131
150-0439
CAP E 10UF/16V 20%
c 132
150-0439
CAP E 10UF/16V 20%
c 133
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 135
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 137
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 138
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 139
150-0439
CAP E 10UF/16V 20%
c 143
151-0409
CAP CER CP 1000PF/50V B K
c 144
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 201
150-0440
CAPE 100UF/6.3V 20X
c 206
150-0439
CAP E 10UF/16V 20%
c 207
150-0439
CAP E 10UF/16V 20%
c 208
150-0439
CAP E 10UF/16V 20%
c 209
150-0439
CAP E 10UF/16V 20%
c 210
150-0439 CAP E 10UF/16V 20%
c 211
151-0410
CAP CER CP 680PF/50V 8 K
c 212
151-0410
CAP CEA CP 680PF/50V B K
c 213
151-0405
CAP CER CP 0. 1LIF/16V F Z
c 214
151-0411
CAP CER CP 8200PF/50V B K
c 215 151-0411
CAP CER CP 8200PF/50V B K
c 216
151-0405
CAP CEA CP 0. 1UF/16V F Z
c 217
151-0412
CAP CEA CP 1200PF/50V B K
c 218 151-0412
CAP CER CP 1200PF/50V B K
c 219
151-0405
CAP CER CP 0. 1LIF/16V F Z
c 220 150-0439 CAP E 10UF/16V 20%
c 221
150-0439
CAP E 10UF/16V 20%
c 222
150-0439
CAP E 10LIF/16V 20%
c 223 151-0413
CAP CER CP 2200PF/50V B K
c 224
151-0405 CAP CEA CP 0. 1UF/16V F Z
c 225 151-0411
CAP CER CP 8200PF/50V B K
c 226 151-0413
CAP CER CP 2200PF/50V B K
c 227
151-0411
CAP CEA CP 8200PF/50V B K
c 228
150-0439 CAP E 10LIF/16V 20%
c 229
150-0439
CAP E 10LIF/16V 20%
c 230 151-0411
CAP CEA CP 8200PF/50V B K
c 231 151-0411
CAP CEA CP 8200PF/50V B K
c 232
150-0439 CAP E 10UF/16V 20%
c 233 150-0439 CAP E 10UF/16V 20%
,
c 234
150-0439 CAP E 10UF/16V 20%
c 235
150-0439 CAP E 10UF/16V 20%
c 236
150-0439 CAP E 10UF/16V 20%
c 237
150-0439
CAP E 10UF/16V 20%
c 238 150-0440
CAPE 100LIF/6.3V 20X
c 239 150-0439 CAP E 10UF/16V 20%
c 240
150-0439 CAP E 10UF/16V 20%
c 301 150-0440 CAPE 100LIF/6.3V 20X
c 302 151-0405
CAP CEA CP 0. 1UF/16V F Z
c 303
150-0441 CAPE 1000UF/6.3V 20X
c 304 151-0405 CAP CER CP 0. 1LIF/16V F Z
c 305
150-0249 CAP E 330LIF 16V LI-TYPE
c 306 150-0440 CAPE 100LIF/6.3V 20%
c 401
151-0456 CAP CEA CP 0.33LIF/16V R K
c 403
150-0249 CAP E 330UF 16V LI-TYPE
c 404
150-0440 CAPE 100UF/6.3V 20X
c 406
150-0301 CAPE 470UF/6.3V U-TYPE
Note: All chip resistors and capacitors are 1.6 x 0.8 mm.
