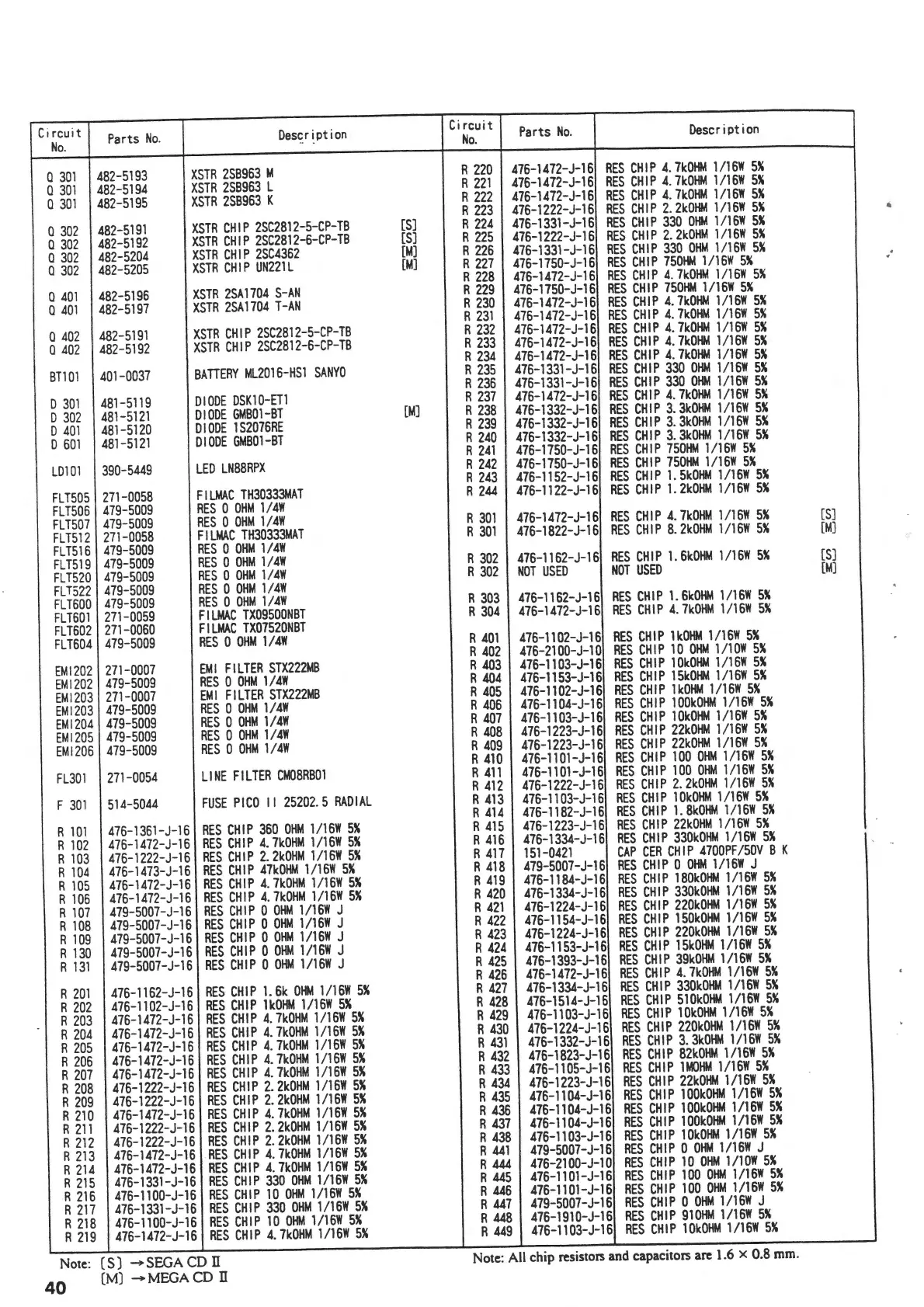

Sega CD II User Manual

Circuit
Parts
No .
Desc.ription
No.
Q 301
482-5193
XSTR 2S8963 M
Q 301
482-5194 XSTR 2S8963 L
Q 301
482-5195 XSTR 2S8963 K
Q 302 482-5191
XSTR CHIP 2SC2812-5-CP-TB
Q 302
482-5192
XSTR CHIP 2SC2812-6-CP-T8
0 302 482-5204
XSTR CHIP 2SC4362
Q 302
482-5205
XSTR CHIP UN221L
a 401
482-5196
XSTR 2SA1704 S-AN
a 401
482-5197
XSTR 2SA1704 T-AN
a 402
482-5191
XSTR CHIP 2SC2812-5-CP - T8
Q 402
482-5192
XSTR CHIP 2SC2812-6-CP-T8
BT101
401-0037
BATTERY ML2016-HS1 SANYO
D 301 481-5119
DI ODE DSK10-ET1
D 302 481-5121
DIODE GMBOl-BT
D 401
481-5120
DIODE 1S2076RE
D 601 481-5121 DIODE GMBOl-BT
LD101 390-5449 LED LN88RPX
FLT505
271-0058
FILMAC TH30333MAT
FLT506 479-5009
RES 0 OHM 1/4W
FLT507
479-5009
RES 0 OHM 1/4W
FLT512 271-0058 FILMAC TH30333MAT
FLT516
479-5009 RES 0 OHM 1/4W
FLT519
479-5009 RES 0 OHM 1/4W
FLT520
479-5009 RES 0 OHM 1/4W
FLT522
479-5009 RES 0 OHM 1/4W
FLT600 479-5009 RES 0 OHM 1/4W
FLT601
271-0059 FILMAC TX095DON8T
FLT602 271-0060
FILMAC TX07520N8T
FLT604 479-5009
RES 0 OHM 1/4W
EM1202
271-0007
EMI FILTER STX222MB
EM1202 479-5009 RES 0 OHM 1/4W
EM1203 271-0007
EMI FILTER STX222M8
EM1203
479-5009 RES 0 OHM 1/4W
EM1204
479-5009 RES 0 OHM 1/4W
EM1205
479-5009 RES 0 OHM 1/4W
EM1206
479-5009 RES 0 OHM 1/4W
FL301
271-0054
LINE FILTER CM08RB01
F 301 514-5044
FUSE PICO I I 25202 .5 RADIAL
R 101 476-1361-J-16
RES CHIP 360 OHM 1/16W 5X
R 102 476-1472-J-16
RES CHIP 4. 7kOHM 1/16W 5X
R 103 476-1222-J-16
RES CHIP 2.2kOHM 1/16W 5X
R 104
476-1473-J-16
RES CHIP 47kOHM 1/16W 5X
R 105 476-1472-J-16
RES CHIP 4. 7kOHM 1/16W 5X
R 106 476-1472-J - 16
RES CHIP 4. 7k0HM 1/16W 5X
R 107
479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
108
479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
109
479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
130
479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
131
479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
201
476-1162-J-16
RES CHIP 1.6k OHM 1/16W 5X
R 202 476-1102-J-16
RES CHIP lkOHM 1/16W 5X
R 203 476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 204 476-1472-J-16
RES CHIP 4. 7kOHM 1/16W 5X
R 205 476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 206 476-1472 - J-16
RES CHIP 4. 7kOHM l/16W 5%
R 207
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 208
476-1222-J-16
RES CHIP 2.2kOHM 1/16W 5%
R 209
476-1222-J-16
RES CHIP 2. 2kOHM l/16W 5%
R 210 476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5%
R 211
476-1222-J-16
RES CHIP 2.2kOHM 1/16W 5%
R 212
476-1222-J-16
RES CHIP 2.2kOHM 1/16W 5%
R 213
476-1472-J-16
RES CHIP 4. 7kOHM 1/16W 5%
R 214
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5%
R 215
476-1331-J-16
RES CHIP 330 OHM 1/16W 5X
R 216
476-1100-J-16
RES CHIP 10 OHM 1/16W 5%
R 217
476-1331-J-16
RES CHIP 33D OHM 1/16W 5%
R 218
476-1100-J-16 RES CHIP 10 OHM 1/16W 5%
R 219
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
Note: ( S) -+ SEGA CD II
(M) -+MEGA CD II
40
[S)
[S)
[M)
[M)
[M)
Circuit
Parts
No .
Description
No.
R 220
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 221
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 222
476-1472-J-16
RES CHIP 4. 7kOHM 1/16W 5X
R 223
476-1222-J-16
RES CHIP 2.2kOHM 1/16W 5X
R 224
476-1331-J-16
RES CHIP 330 OHM 1/16W 5X
R 225
476-1222-J-16 RES CHIP 2.2k0HM 1/16W 5X
R 226
476-1331-J-16 RES CHIP 330 OHM 1/16W 5X
R 227
476-1750-J-16 RES CHIP 750HM 1/16W 5X
,•
R 228
476-1472-J-16
RES CHIP 4. 7kOHM 1/16W 5X
R 229
476-1750-J-16
RES CHIP 750HM 1/16W 5X
R 230
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 231
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 232
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 233
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 234
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 235
476-1331-J-16
RES CHIP 330 OHM 1/16W 5X
R 236
476-1331-J-16
RES CHIP 330 OHM 1/16W 5X
R 237
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 238
476-1332-J-16
RES CHIP 3.3kOHM 1/16W 5X
R 239
476-1332-J-16
RES CHIP 3.3k0HM 1/16W 5X
R 240
476-1332-J-16
RES CHIP 3.3k0HM 1/16W 5X
R 241
476-1750-J-16
RES CHIP 750HM 1/16W 5X
R 242
476-1750-J-16
RES CHIP 750HM 1/16W 5X
R 243
476-1152-J-16
RES CHIP 1.5k0HM 1/16W 5X
R 244
476-1122-J-16
RES CHIP 1.2k0HM 1/16W 5X
R 301
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
[SJ
R 301
476-1822-J-16
RES CHIP 8. 2k0HM 1/16W 5X
[M)
R 302
476-1162-J-16
RES CHIP 1.6kOHM 1/16W 5X
[SJ
R 302
NOT USED
NOT USED
[M]
R 303
476-1162-J-16
RES CHIP 1. 6kOHM 1/16W 5X
R 304
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5X
R 401
476-1102-J-16
RES CHIP lkOHM 1/16W 5X
R 402
476-2100-J-10
RES CHIP 10 OHM 1/lOW 5X
R 403
476-1103-J-16
RES CHIP lOkOHM 1/16W 5X
R 404
476-1153-J-l 6
RES CHIP 15k0HM 1/16W 5X
R 405
476-1102-J-16
RES CHIP lkOHM 1/16W 5X
R 406
476
- 1104 -J- 16
RES CHIP lOOkOHM 1/16W 5X
R 407
476-1103-J-16
RES CHIP lOkOHM 1/16W 5X
R 408
476-1223-J-16
RES CHIP 22kOHM 1/16W 5X
R 409
476-1223 - J-16
RES CHIP 22k0HM 1/16W 5X
R 410
476-1101-J-16
RES CHIP 100 OHM 1/16W 5X
R 411
476-1101-J-16
RES CHIP 1DO OHM 1/16W 5X
R 412
476-1222-J-16
RES CHIP 2.2kOHM 1/16W 5X
R 413
476-1103-J-16
RES CHIP lOkOHM 1/16W 5X
R 414
476-1182-J-16
RES CHIP 1.8kOHM 1/16W 5X
R 415
476-1223-J-16
RES CHIP 22kOHM 1/16W 5X
R 416
476-1334-J-16
RES CHIP 330k0HM 1/16W 5X
R 417
151-0421
CAP CER CHIP 4700PF/50V B K
R
418
479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
419
476-1184-J-16
RES CHIP 180k0HM 1/16W 5X
R 420
476-1334-J-16
RES CHIP 330k0HM 1/16W 5X
R 421
476-1224-J-16
RES CHIP 220kOHM 1/16W 5X
R 422
476-1154-J-16
RES CHIP 150k0HM 1/16W 5X
R 423
476-1224-J-16
RES CHIP 220kOHM 1/16W 5%
R 424
476-1153-J-16
RES CHIP 15k0HM 1/16W 5X
R 425
476-1393-J-16
RES CHIP 39kOHM 1/16W 5X
R 426
476-1472-J-16
RES CHIP 4. 7k0HM 1/16W 5%
R 427
476-1334-J - 16
RES CHIP 330kOHM 1/16W 5X
R 428
476-1514-J-16 RES CHIP 510kOHM 1/16W 5X
R 429
476-1103-J-16
RES CHIP 10kOHM 1/16W 5X
R 430
476-1224-J-16
RES CHIP 220k0HM l/16W 5%
R 431
476-1332-J-16
RES CHIP 3.3k0HM l/16W 5%
R 432
476-1823-J-16 RES CHIP 82k0HM l/16W 5%
R 433 476-11 05 -J- 16
RES CHIP 1MOHM 1/16W 5%
R 434
476-1223-J-16
RES CHIP 22kOHM 1/16W 5X
R 435 476-1104-J-16
RES CHIP lOOkOHM 1/16W 5%
R 436
476-1104-J-16
RES CHIP lOOkOHM 1/16W 5X
R 437
476-1104-J-16
RES CHIP lOOkOHM 1/16W 5X
R 438
476-1103-J-16
RES CHIP lOkOHM 1/16W 5X
R 441
479-5007-J-16 RES CHIP 0 OHM 1/16W J
R
444
476-2100-J-10
RES CHIP 10 OHM 1/lOW 5X
R 445
476-1101-J-16
RES CHIP 100 OHM 1/16W 5X
R 446
476-1101-J-16
RES CHIP 100 OHM 1/16W 5X
R 447 479-5007-J-16
RES CHIP 0 OHM 1/16W J
R
448 476-1910-J-16
RES CHIP 910HM 1/16W 5X
R 449 476-1103-J-16
RES CHIP 10kOHM 1/16W 5%
Note: All chip resistors and capacitors arc 1.6 x 0.8 mm .
