3.

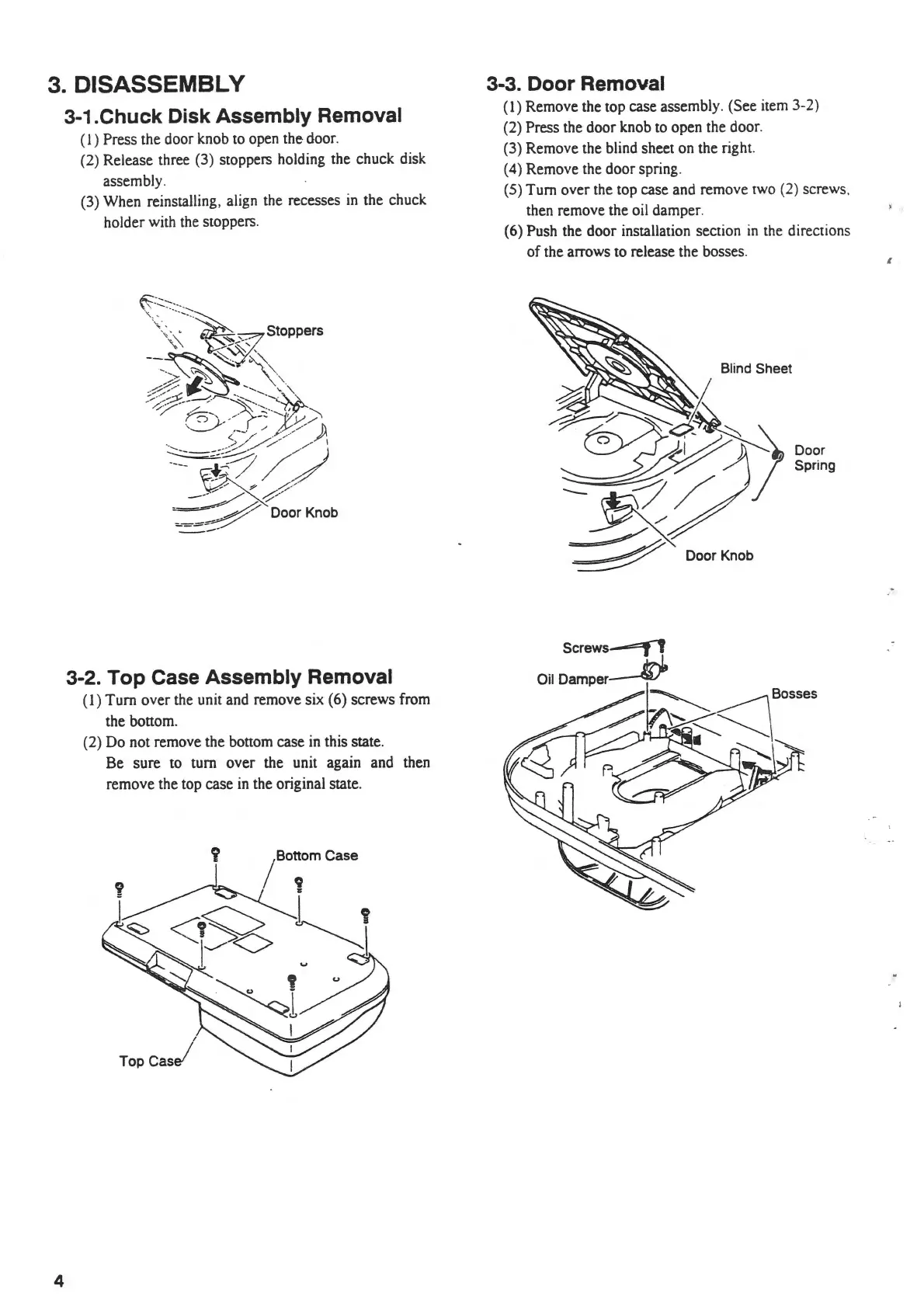

DISASSEMBLY
4
3-1.Chuck Disk Assembly Removal
(I ) Press the door knob to open the door.
(2) Release three (3) stoppers holding the chuck disk
assembly.
(3) When reinstalling, align the recesses
in
the chuck
holder with the stoppers.
3-2. Top Case Assembly Removal
(I)
Turn over the unit and remove six (6) screws from
the bottom.
(2) Do not remove the bottom case
in
this state.
Be sure
to
turn over the unit again and then
remove the top case
in
the original state.
/Bo:om
Case
B
~i
3-3. Door Removal
(I)
Remove the top case assembly. (See item 3-2)
(2) Press the door knob to open the door.
(3) Remove the blind sheet on the right.
(4) Remove the door spring.
(5) Tum over the top case and remove two (2) screws.
then remove the oil damper.
(6) Push the door installation section
in
the directions
of
the arrows to release the bosses.
Blind Sheet
Door Knob
Door
Spring
j .
To Next Page
