Sega CD User Manual

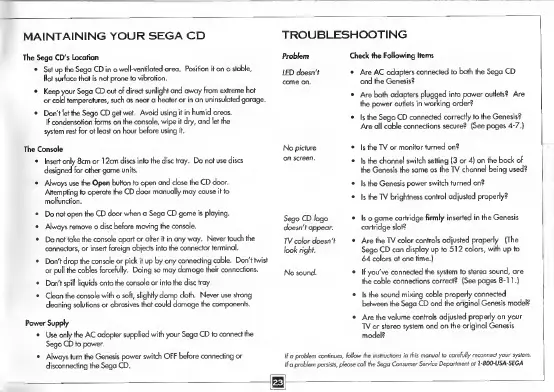

MAINTAINING YOUR SEGA CD
The Sega CD's Location
• Set up the Sega CD in a well-ventilated area. Position it on a stable,
flat surface that is not prone to vibration.
• Keep your Sega CD out of direct sunlight and away from extreme hot
or cold temperatures, such as near a heater or in an uninsulated garage.
• Don't let the Sega CD get wet. Avoid using it in humid areas.
If condensation forms on the console, wipe it dry, and let the
system rest for at least an hour before using it.
The Console
• Insert only 8cm or 12cm discs into the disc tray. Do not use discs
designed for other game units.
• Always use the Open button to open and close the CD door.
Attempting to operate the CD door manually may cause it to
malfunction.
• Do not open the CD door when a Sega CD game is playing.
• Always remove a disc before moving the console.
• Do not take the console apart or alter it in any way. Never touch the
connectors, or insert foreign objects into the connector terminal.
• Don't drop the console or pick it up by any connecting cable. Don't twist
or pull the cables forcefully. Doing so may damage their connections.
• Don't spill liquids onto the console or into the disc tray.
• Clean the console with a soft, slightly damp cloth. Never use strong
cleaning solutions or abrasives that could damage the components.
Power Supply
• Use only the AC adapter supplied with your Sega CD to connect the
Sega CD to power.
• Always turn the Genesis power sv
disconnecting the Sega CD.
/itch OFF before connecting ■
TROUBLESHOOTING
TV color doesn't
look right.
Is the Sega CD connected correctly to the Genesis?
Are all cable connections secure? (See pages 4-7.)
Is the TV or monitor turned on?
Is the channel switch setting (3 or 4) on the back of
the Genesis the same as the TV channel being used?
Is the Genesis power switch turned on?
Is the TV brightness control adjusted properly?
Is a game cartridge firmly inserted in the Genesis
cartridge slot?
Are the TV color controls adjusted properly. (The
Sega CD can display up to 512 colors, with up to
64 colors at one time.)
If you've connected the system to stereo sound, are
the cable connections correct? (See pages 8-11.)
Is the sound mixing cable properly connected
between the Sega CD and the original Genesis model?
Are the volume controls adjusted properly on your
TV or stereo system and on the original Genesis
model?

Sega CD Specifications

General

Media	CD-ROM
RAM	6 Mbit (768 KB)
Manufacturer	Sega
Type	Add-on
Generation	Fourth generation
Best-selling game	Sonic CD
Units sold	2.24 million
CPU	Motorola 68000 at 12.5 MHz
Resolution	320 x 224
Sound	Ricoh RF5C164 (PCM)
Graphics	Custom ASIC graphics chip
CD-ROM Speed	1x
Video RAM	128 KB
Colors	64 on-screen (16 palettes x 16 colors each), 512 total
