rf—
ftD
o
®
I
J«\

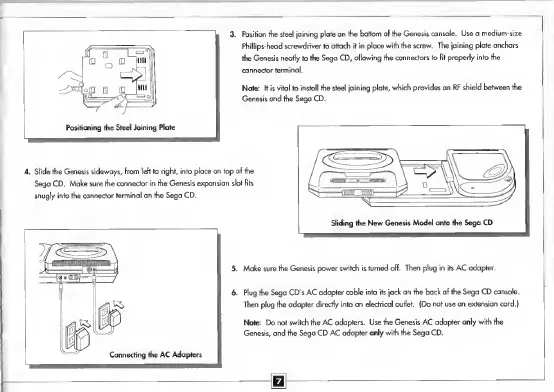

Positioning
the
Steel
Joinin
Plate
4.
Slide
the
Genesis
sideways,
from
left
to
right,
into
place
on
Sega
CD.
Make
sure
the
connector
in
the
Genesis
expansic
snugly
into
the
connector
terminal
on
the
Sega
CD.
3.
Position
the
steel
joining
plate
on
the
bottom
of
the
Genesis
console.
Use
a
medium-size
Phillips-head
screwdriver
to
attach
it
in
place
with
the
screw.
The
joining
plate
anchors
the
Genesis
neatly
to
the
Sega
CD,
allowing
the
connectors
to
fit
properly
into
the
connector
terminal.
Note:
It
is
vital
to
install
the
steel
joining
plate,
which
provides
an
RF
shield
between
the
Genesis
and
the
Sega
CD.
top
of
the
on
slot
fits
5.
Make
sure
the
Genesis
power
switch
is
turned
off.
Then
plug
in
its
AC
adapter.
6.
Plug
the
Sega
CD's
AC
adapter
cable
into
its
jack
on
the
back
of
the
Sega
CD
console.
Then
plug
the
adapter
directly
into
an
electrical
outlet.
(Do
not
use
an
extension
cord.)
Note:
Do
not
switch
the
AC
adapters.
Use
the
Genesis
AC
adapter
only
with
the
Genesis,
and
the
Sega
CD
AC
adapter
only
with
the
Sega
CD.
