Sega Genesis 32X Service Manual

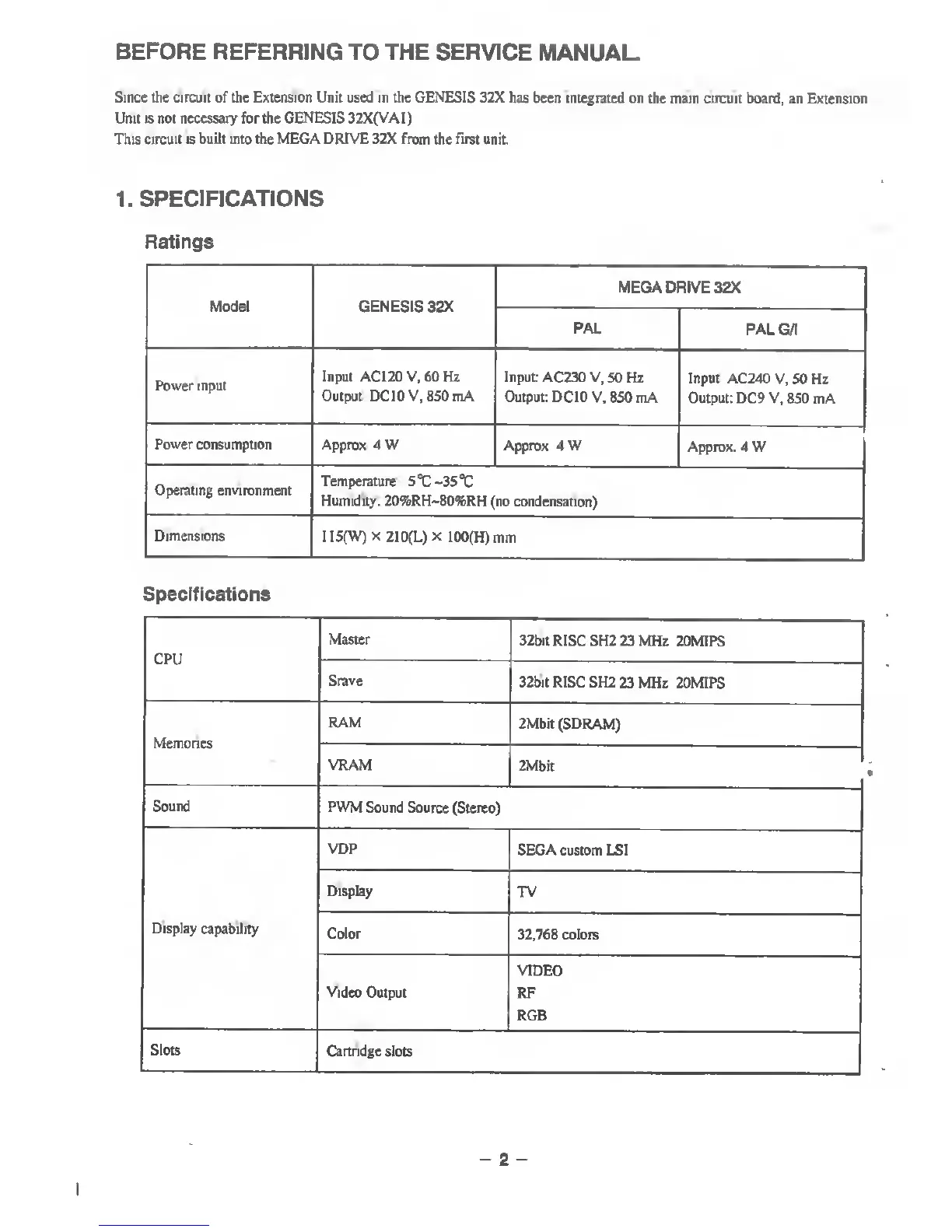

BEFORE
REFERRING TO THE SERVICE
MANUAL
Since the circuit of the Extension Unit used in the GENESIS 32X has
been integrated on the main circuit
board, an Extension
Unit is not necessary for
the
GENESIS 32X(VA1).
This
circuit is built into the MEGA DRIVE 32X from
the
first
unit.
1.
SPECIFICATIONS
Ratings
Model GENESIS 32X
MEGA
DRIVE 32X
PAL
PAL
G/l
Power input
Input: AC120V, 60 Hz
Output: DCIOV, 850 mA
Input: AC230 V,
50 Hz
Output: DCIO V,
850 mA
Input:
AC240 V, 50
Hz
Output:
DC9 V, 850
mA
Power
consumption Approx. 4 W
Approx.
4
W
Approx. 4 W
Operating
environment
Temperature: S'C~35‘C
Humidity:
20%RH-80%RH
(no condensation)
Dimensions 115(W)X210(L)X
100(H) mm
Specifications
CPU
Master
32bit
RISC SH2 23 MHz
20MIPS
Stave
32bit RISC SH2 23
MHz 20MIPS
Memories
RAM
2Mbit (SDRAM)
VRAM
2Mbit
Sound
PWM
Sound Source (Stereo)
VDP
SEGA custom LSI
Display
TV
Display capability
Color
32,768 colors
VIDEO
Video
Output
RF
RGB
Slots
Cartridge slots
I
