Sega Genesis 32X Service Manual

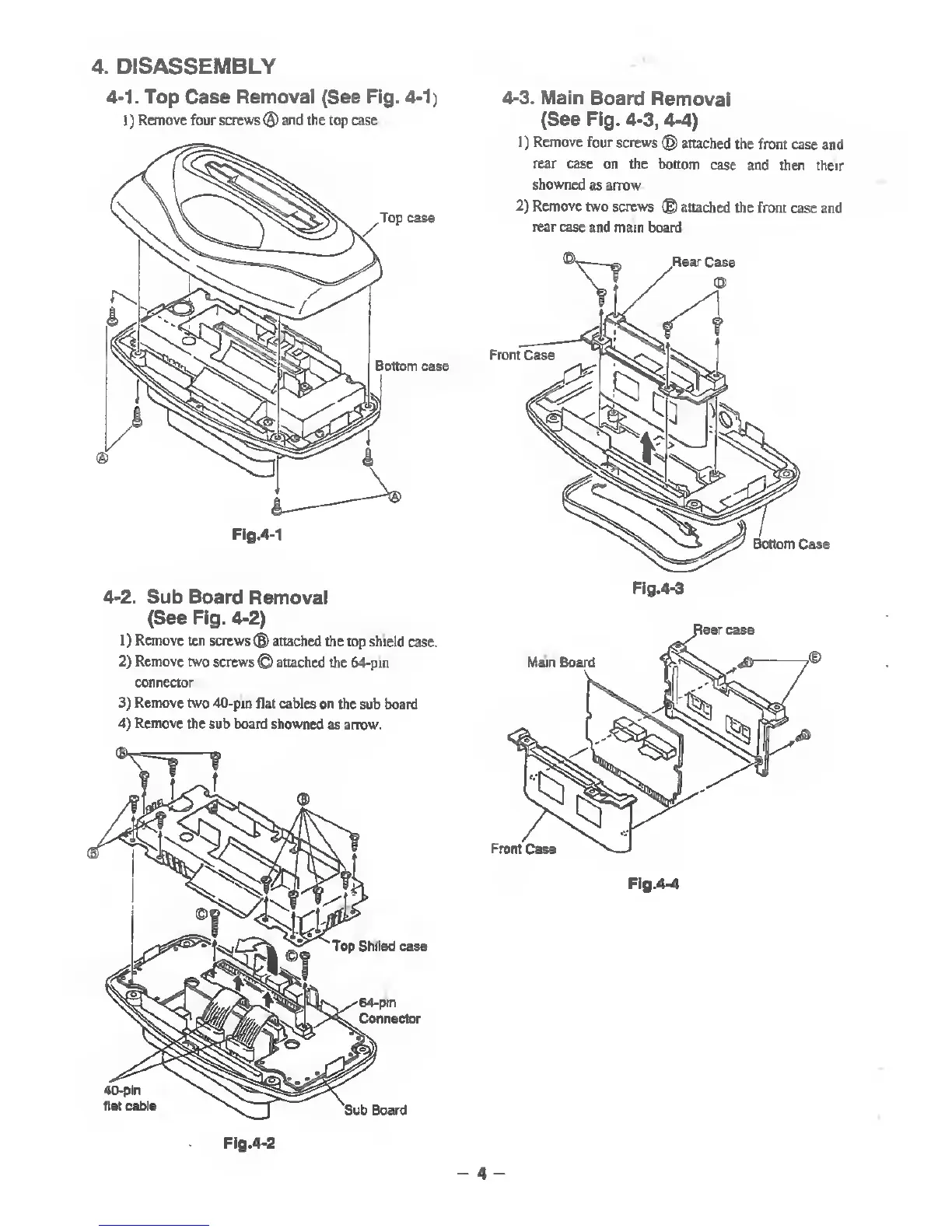

4. DISASSEMBLY
4-1.
Top Case Removal (See Fig. 4-1)
I
)
Remove
four
screws
®
and the
top case.
4-2.
Sub Board
Removal
(See Fig. 4-2)
1
)
Remove ten screws
®
attached
the top shield
case.
2)
Remove two screws
©
attached the
64-pin
connector.
3)
Remove two
40-pin flat cables on
the sub board.
4)
Remove
the sub board showned
as arrow.
4-3.
Main
Board
Removal
(See Fig. 4-3,
4-4)
1)
Remove
four screws
®
attached
the
front case and
rear case
on the bottom
case
and then their
showned
as arrow.
2)
Remove
two screws
®
attached
the front
case and
rear case
and main board.
Flg.4>2
-
4
-
