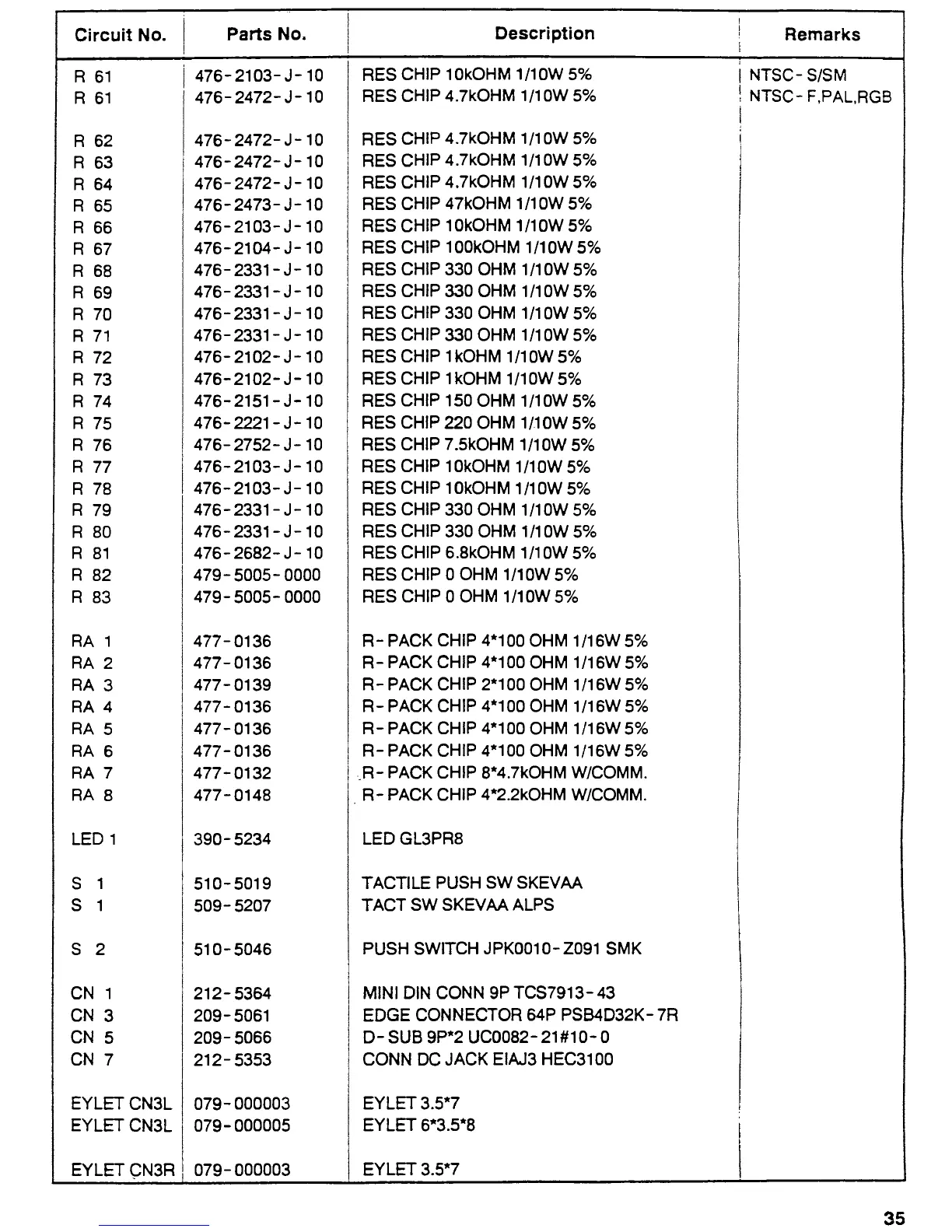

Circuit No.
Parts No.
Description
I
Remarks
I
I
'
R 61
476-2103-J-10
RES CHIP 1 OkOHM 1/1 OW 5%
I NTSC- S/SM
R 61
476-2472- J -10
RES CHIP 4.7kOHM 1/10W 5%
1
NTSC- F.PAL,RGB
R 62
476-2472-J-10
RES CHIP 4.7kOHM 1/10W 5%
R 63
476-2472-J-10
RES CHIP 4.7k0HM 1/10W 5%
R
64
476-2472-J-10
RES CHIP 4.7kOHM 1/10W 5%
R 65
476-2473-J-10
RES CHIP 47kOHM 1/10W 5%
R 66
476-2103-J-10
RES CHIP 10kOHM 1/10W 5%
R 67
476-2104-J-10
RES CHIP 100kOHM 1/10W 5%
R 68
476- 2331-J-10 RES CHIP 330 OHM 1/10W 5%
R 69
476- 2331-J-10 RES CHIP 330 OHM 1/10W 5%
R 70
476-2331-J-10 RES CHIP 330 OHM 1/10W 5%
R 71
476-2331-J-10 RES CHIP 330 OHM 1/10W 5%
R 72
476-2102-J-10 RES CHIP 1k0HM 1/10W 5%
R 73
476-2102- J-10 RES CHIP 1kOHM 1/10W 5%
R 74
476-2151-J-10
RES CHIP 150 OHM 1/10W 5%
R 75
476-2221-J-10
RES CHIP 220 OHM 1/10W 5%
R 76
476-2752-J-10 RES CHIP 7.5kOHM 1/10W 5%
R77
476-2103-J-10 RES CHIP 10k0HM 1/10W 5%
R 78
476- 2103-J-10 RES CHIP 10kOHM 1/10W 5%
R 79
476- 2331-J-10 RES CHIP 330 OHM 1/10W 5%
R 80
476-2331-J-10 RES CHIP 330 OHM 1/10W 5%
R 81
476-2682-J-10 RES CHIP 6.8kOHM 1/10W 5%
R 82
479-5005-0000
RES CHIP 0 OHM 1/10W 5%
R
83
479- 5005- 0000
RES CHIP 0 OHM 1/10W
5%
RA 1 477-0136
R- PACK CHIP 4*100 OHM 1/16W 5%
RA 2 477-0136
R- PACK CHIP 4*100 OHM 1/16W 5%
RA 3
477-0139
R- PACK CHIP 2*100 OHM 1/16W 5%
RA 4
477-0136
R- PACK CHIP 4*100 OHM 1/16W 5%
RA 5 477-0136
R- PACK CHIP 4*100 OHM 1/16W 5%
RA 6 477-0136
R- PACK CHIP 4*100 OHM 1/16W 5%
RA 7
477-0132 ._R- PACK CHIP 8*4.7k0HM W/COMM.
RA 8
477-0148 R- PACK CHIP 4*2.2kOHM W/COMM.
LED 1 390-5234
LED GL3PR8
s 1 510-5019
TACTILE PUSH SW SKEV AA
s 1
509-5207
TACT SW SKEV AA ALPS
s 2 510-5046
PUSH SWITCH JPK0010-Z091 SMK
CN 1 212-5364
MINI DIN CONN 9PTCS7913-43
CN 3 209-5061
EDGE CONNECTOR 64P PSB4D32K-7R
CN 5
209-5066
D- SUB 9P*2 UC0082- 21 #1 0- 0
CN 7
212-5353
CONN DC JACK EIAJ3 HEC3100
EYLETCN3L 079-000003
EYLET3.5*7
EYLETCN3L 079-000005
EYLET 6*3.5*8
EYLET~N3R
079-000003
EYLET3.5*7
35
