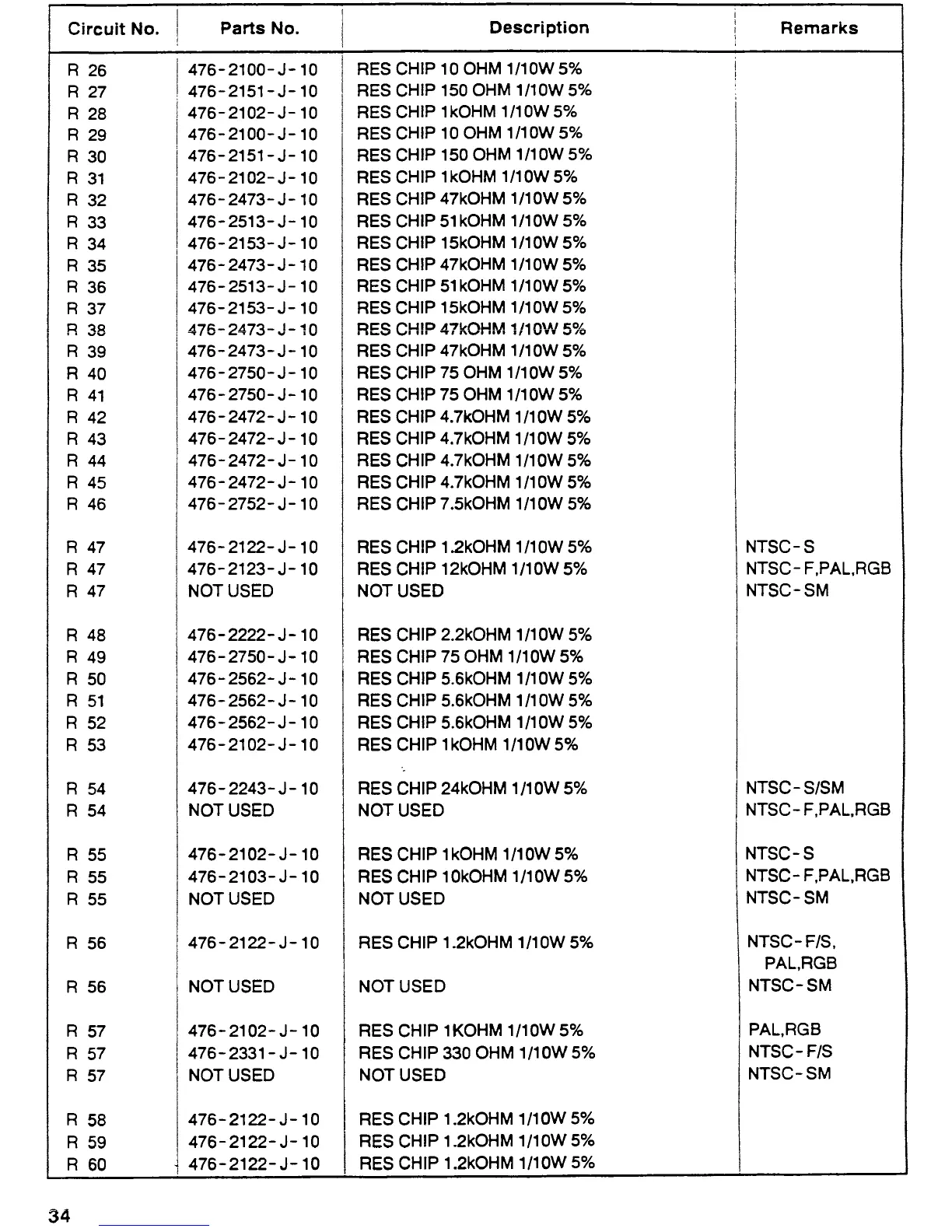

Circuit No.
I
Parts No.
I
Description
Remarks
!
R 26
1476-2100-J-10
RES CHIP 10 OHM 1/10W 5%
i
!
R 27
476-2151-J-10
RES CHIP 150 OHM 1/1 OW 5%
R 28
476-2102-J-10
RES CHIP 1kOHM 1/10W 5%
I
R 29
476-2100-J-10
RES CHIP 1 0 OHM 111 OW 5%
R 30
476-2151-J-10
RES CHIP 150 OHM 1/10W 5%
R 31
476-2102-J-10
RES CHIP 1kOHM 1/10W 5%
R 32
476-2473-J-10
RES CHIP 47kOHM 1/1 OW 5%
R 33
476-2513- J-10
RES CHIP 51k0HM 1/10W 5%
R 34
476-2153-J-10
RES CHIP 15kOHM 1/10W 5%
R 35
476-2473-J-10 RES CHIP 47kOHM 1/10W 5%
R 36
476-2513-J-10 RES CHIP 51kOHM 1/10W 5%
R 37
476-2153-J-10
RES CHIP 15kOHM 1/1 OW 5%
R 38
476-2473-J-10 RES CHIP 47kOHM 1/10W 5%
R 39
476-2473-J- 10 RES CHIP 47k0HM 1/10W 5%
R
40
476-2750-J-10 RES CHIP 75 OHM 1/10W 5%
R
41
476-2750-J- 10
RES CHIP 75 OHM 1/10W 5%
R
42
476-2472-J-10
RES CHIP 4.7kOHM 1/10W 5%
R 43
476-2472-J-10
RES CHIP 4.7kOHM 1/10W 5%
R 44
476-2472-J-10
RES CHIP 4.7kOHM 1/10W 5%
R
45
476-2472-J-10
RES CHIP 4.7kOHM 1/10W 5%
R
46
476-2752-J-10 RES CHIP 7.5k0HM 1/10W 5%
R
47
476-2122-J-10
RES CHIP 12k0HM 1/10W 5%
NTSC-S
R 47
476-2123-J-10 RES CHIP 12kOHM 1/10W 5%
NTSC- F,PAL.RGB
R
47 NOT USED NOT USED
NTSC-SM
R 48
476-2222-J-10 RES CHIP 2.2kOHM 1/10W 5%
R 49
476-2750-J-10 RES CHIP 75 OHM 1/10W 5%
R 50
476-2562-J-10
RES CHIP 5.6kOHM 1/1 OW 5%
R
51
476-2562-J-10
RES CHIP 5.6kOHM 1/1 OW 5%
R 52
476-2562-J-10
RES CHIP 5.6kOHM 1/1 OW 5%
R
53
476-2102-J-10 RES CHIP 1 kOHM 1/1 OW 5%
·.
R 54
476-2243-J-10
RES CHIP 24kOHM 1/1 OW 5%
NTSC-S/SM
R 54
NOT USED
NOT USED
NTSC-
F.PAL,RGB
R
55
476-2102-J-10
RES CHIP 1kOHM 1/10W 5%
NTSC-S
R 55
476-2103-J-10
RES CHIP 10kOHM 1/10W 5%
NTSC-F,PAL,RGB
R 55
NOT USED NOT USED
NTSC-SM
R 56
476-2122- J-10
RES CHIP 1.2kOHM 1/10W 5%
NTSC-F/S.
PAL,RGB
R 56
NOT USED NOT USED
NTSC-SM
R 57
476-2102-J-10 RES CHIP 1KOHM 1/10W 5%
PAL,RGB
R
57
476-2331-J-10 RES CHIP 330 OHM 1/1 OW 5%
NTSC-F/S
R 57 NOT USED
NOT USED
NTSC-SM
R 58
476-2122-J-10
RES CHIP 1.2kOHM 1/10W 5%
R 59
476-2122-J-10
RES CHIP 1.2k0HM 1/10W 5%
R 60
476-2122-J-10
RES CHIP 1.2kOHM 111 OW 5%
34
