Sega genesis User Manual

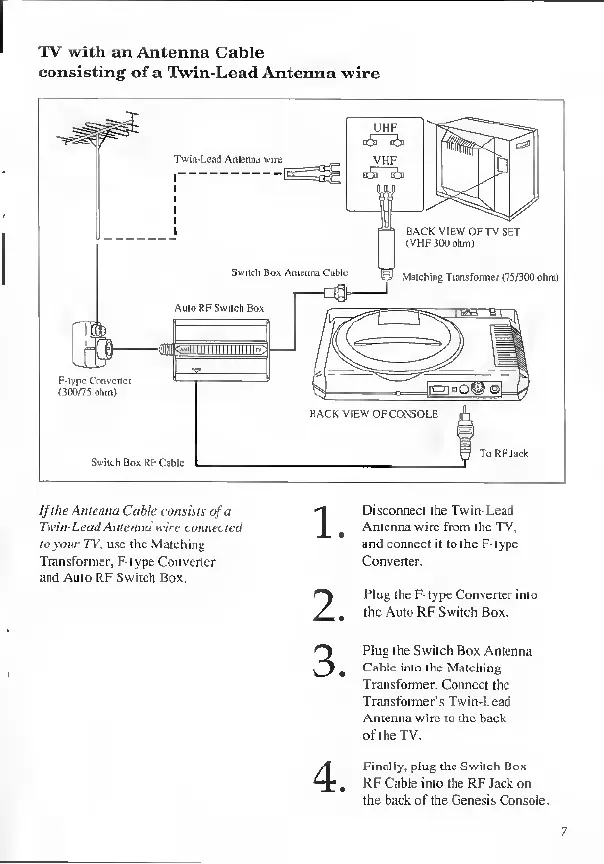

TV with an Antenna
Cable
consisting of a Twin-Lead
Antenna wire
Auto KF Switch
Box
Switch Box Antenna Cable
i—
<*
F-lypc CYnvcncr
(300/75 ohml
tttf>-
BACK VIEW
OF
TV
SET
(VHP
30t> ohm
)
W Matching Transformer (75/300
ohm)
Swiich
Box RF Cable
If
the Antenna Cable consists
of
a
Twin-Lead
Antenna win' connected
toyour TV, use the
Matching
Transformer, F-type
Convener
and Auto RF Switch Box.
1.
2.
3.
4.
Disconnect the Twin -Lead
Antenna wire from the TV,
and
connect it to the F-type
Converter.
Plug
the F-type
Converter
into
the Auto RF Swiich
Box.
Plug the Switch Box Antenna
Pahle
into ihe Matching
Transformer.
Connect the
Transformer's Twin-Lead
Antenna
wire
to the back
of the
TV.
Finally,
plug the Switch Box
RF
Cable into the RF Jack on
ihe
back of the Genesis Console.
